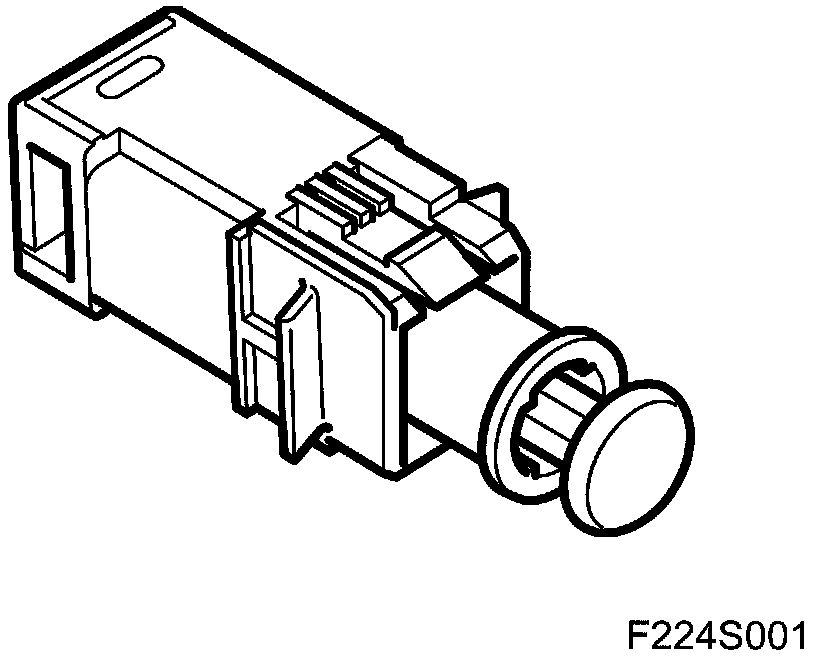

Brake Light Switch (29)



Brake Light Switch (29)

Location

Brake Light Switch (29)

Principal use
To activate brake lights.

Type
Closing switch.

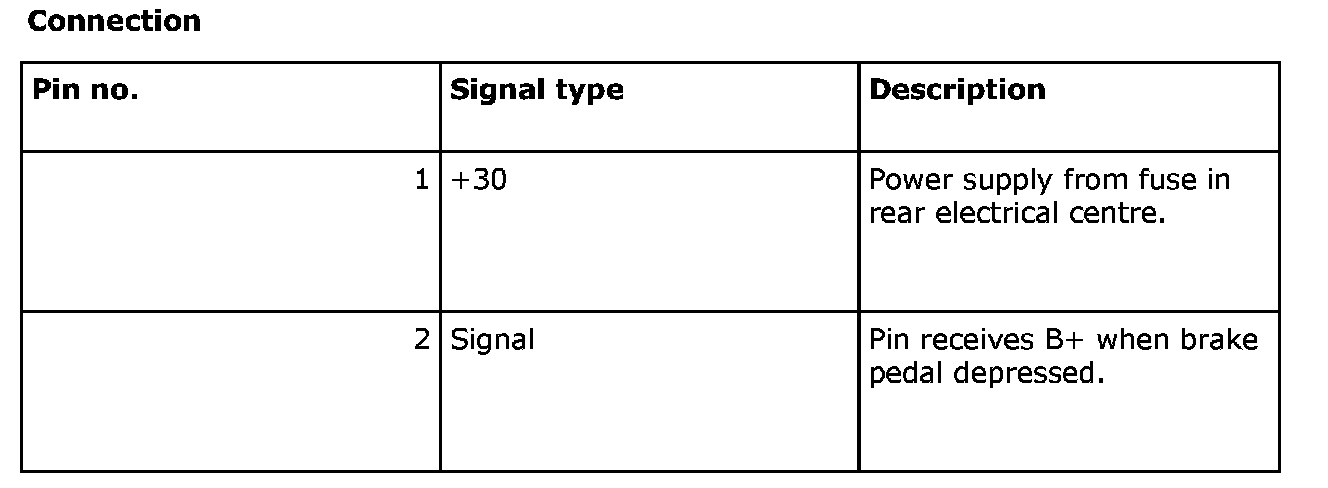

Connection


Pin No. 1-2:

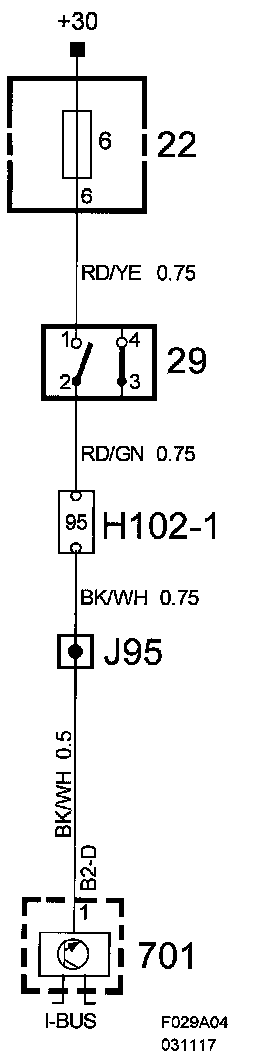

Brake light function

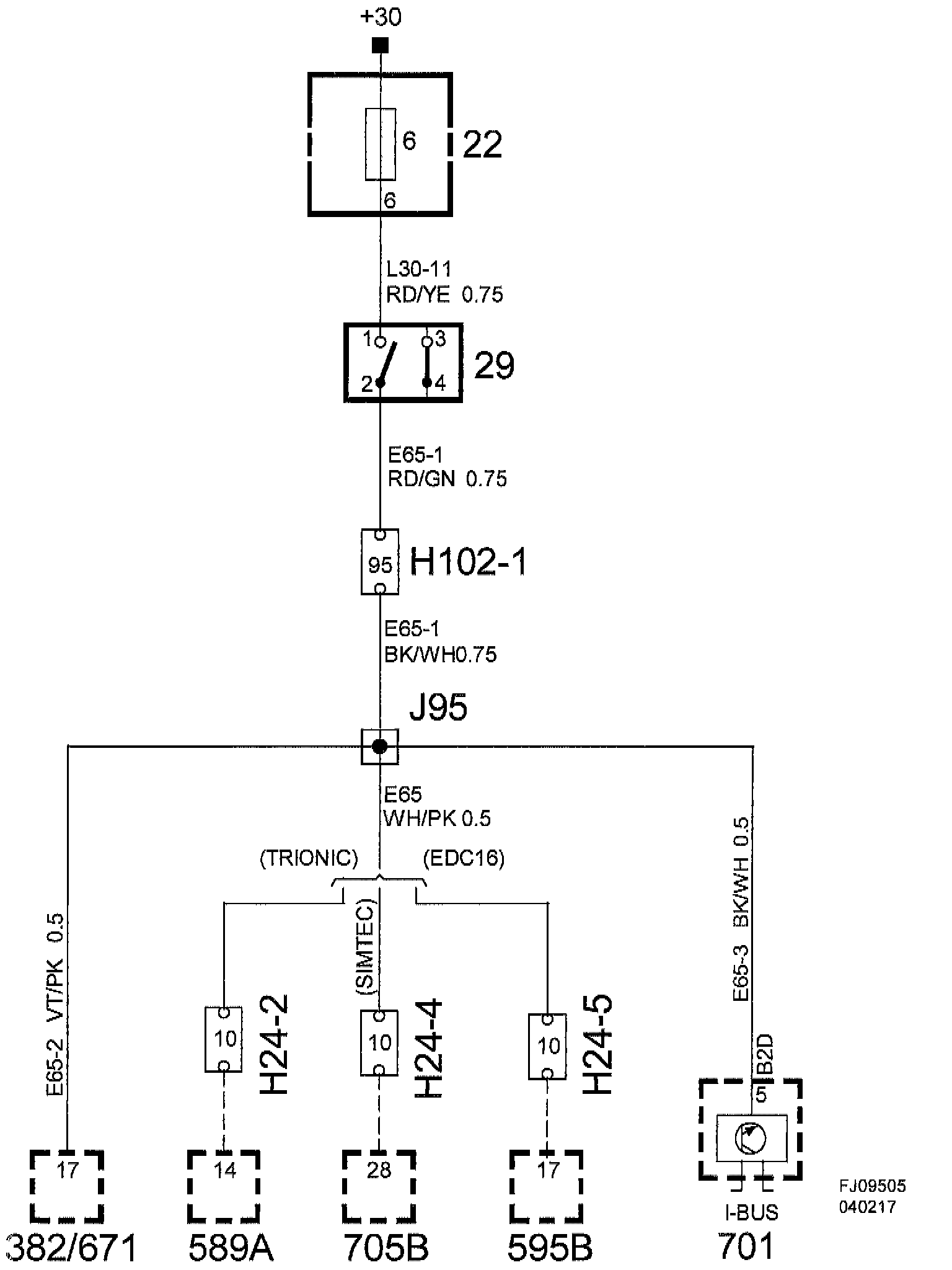

Complete function
