Brake Lamp: Service and Repair

Brake Lights

Replacing

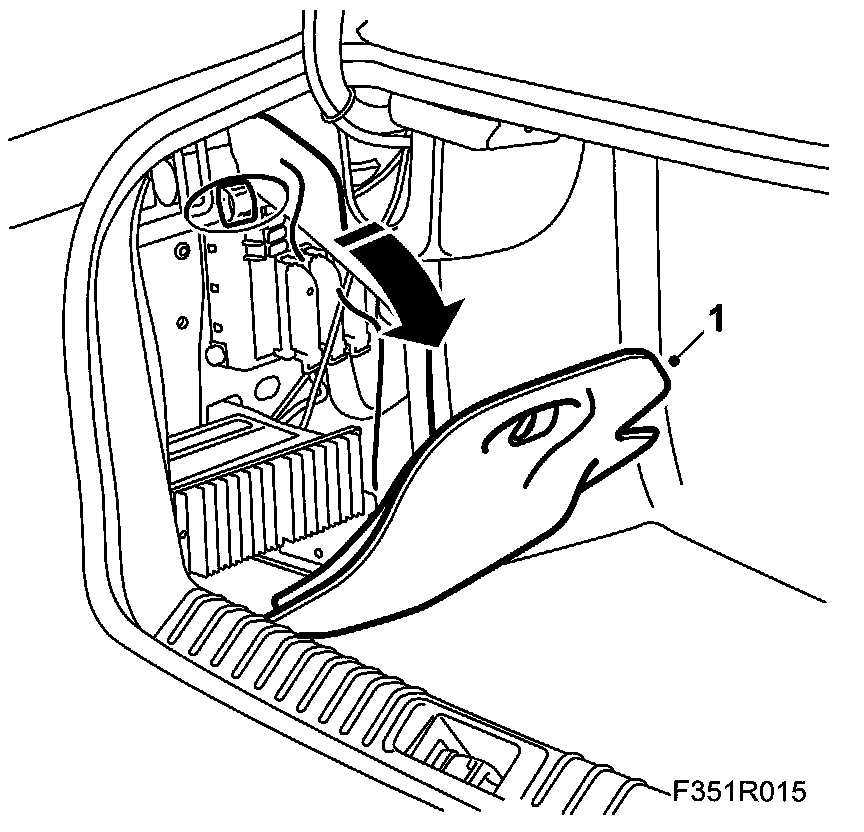

1. Close the hatch in the trim behind the lamp.

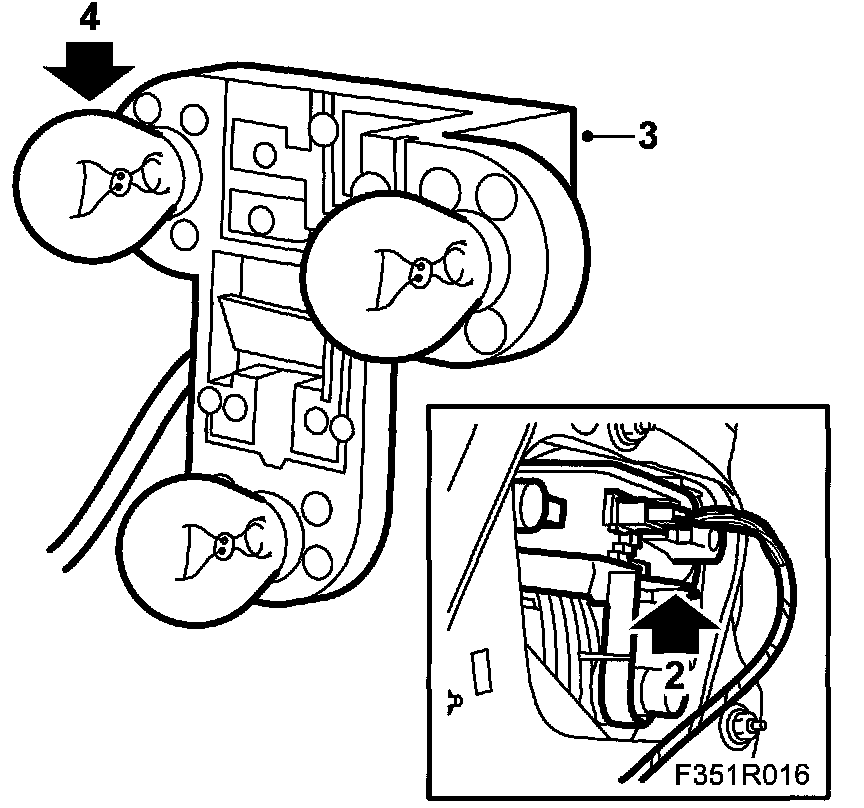

2. Press up the plastic tongue on the lamp housing that holds the bulb socket.







3. Detach the bulb socket from the lamp housing.

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.

4. Replace the bulb.

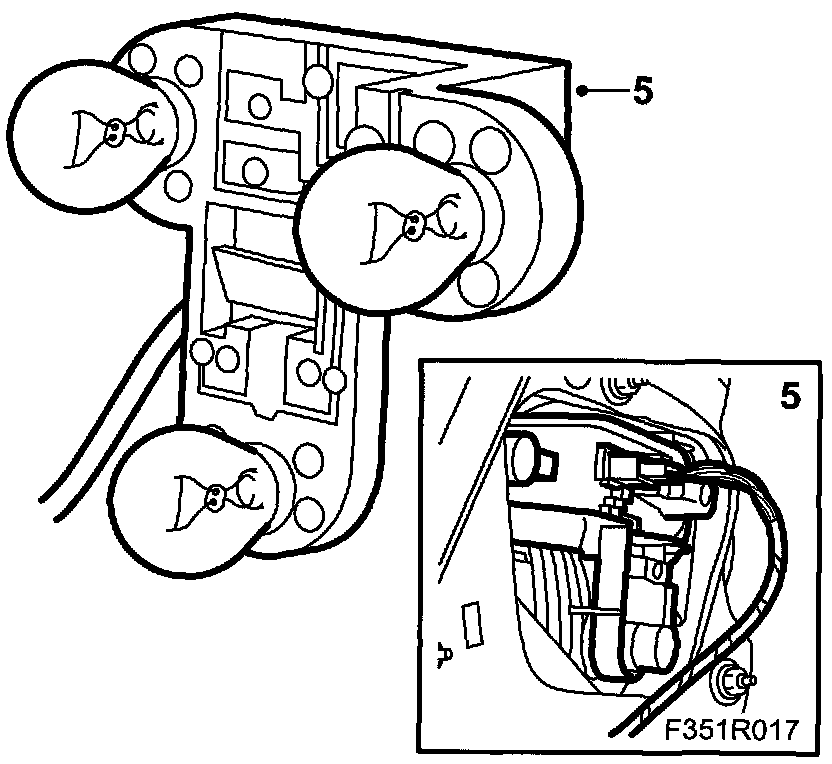

5. Fit the bulb socket.







6. Close the hatch in the trim.
