Backup Light Bulb: Service and Repair

Reversing Lights

Replacing

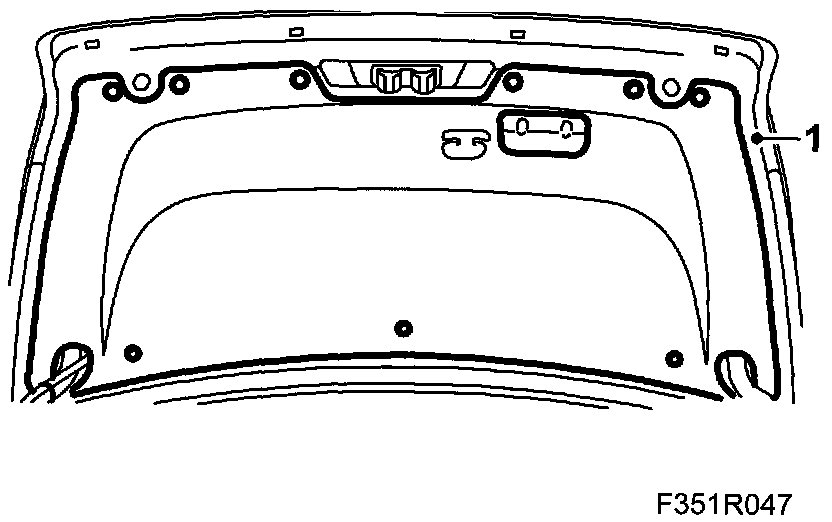

1. Remove the boot lid trim.

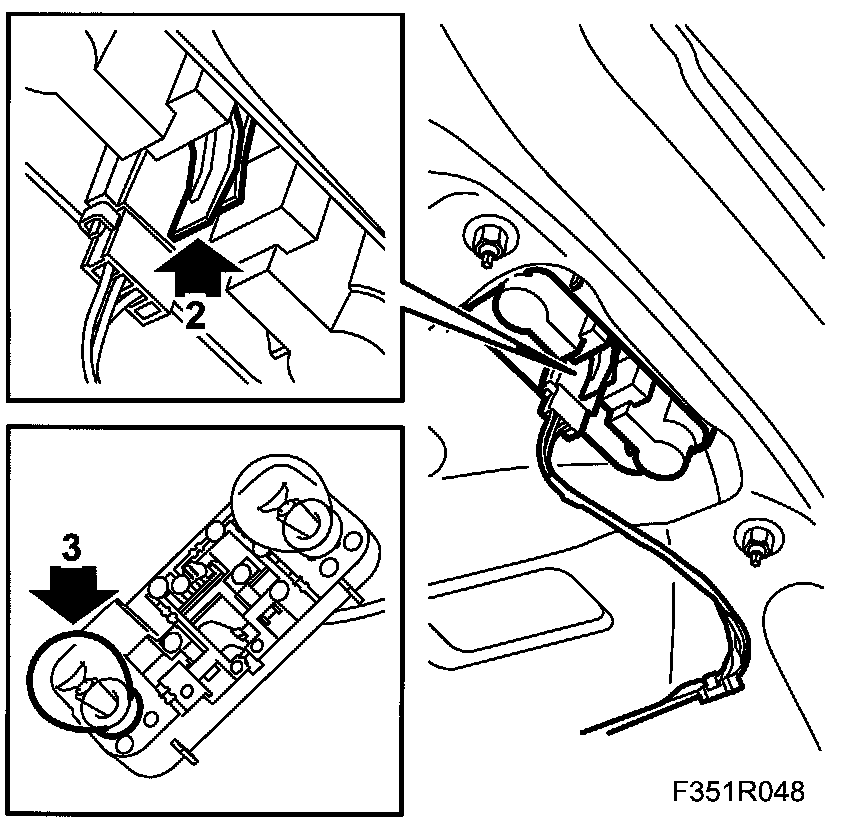

2. Detach the bulb socket from the lamp housing by pressing down the lock tongue.

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.







3. Replace the bulb.

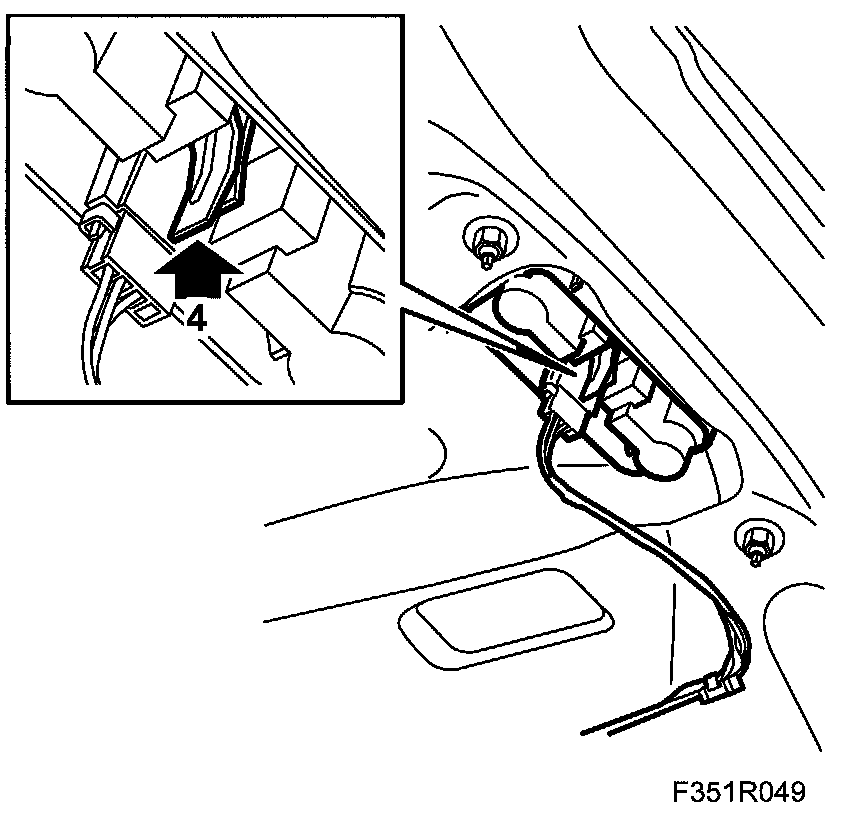

4. Fit the bulb socket.

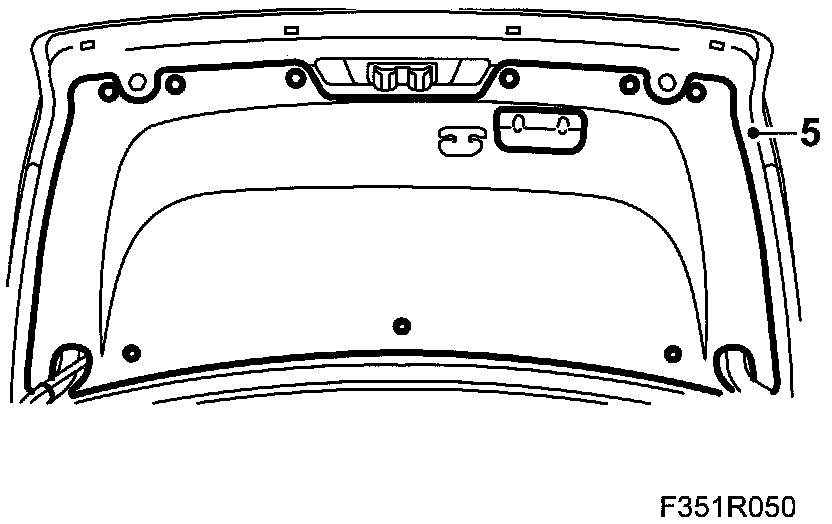

5. Fit the boot lid trim.
