Component Locations

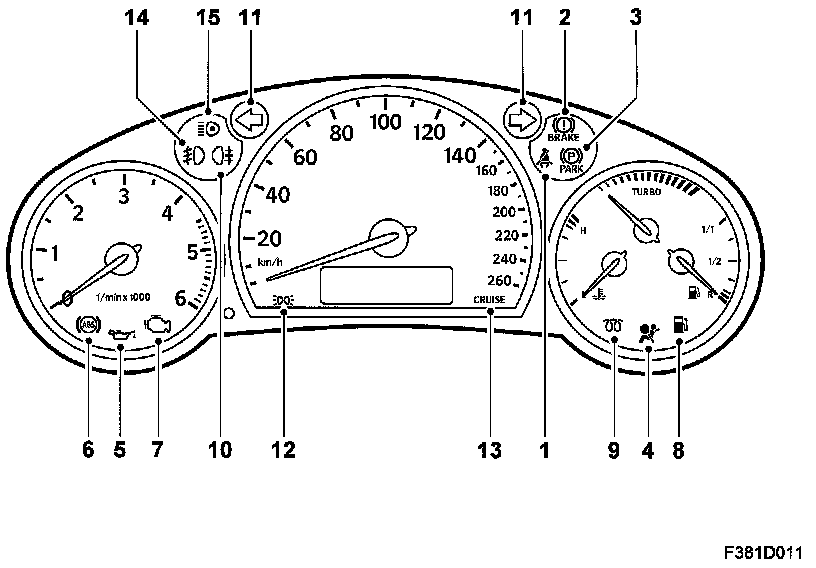

Main Instrument Unit

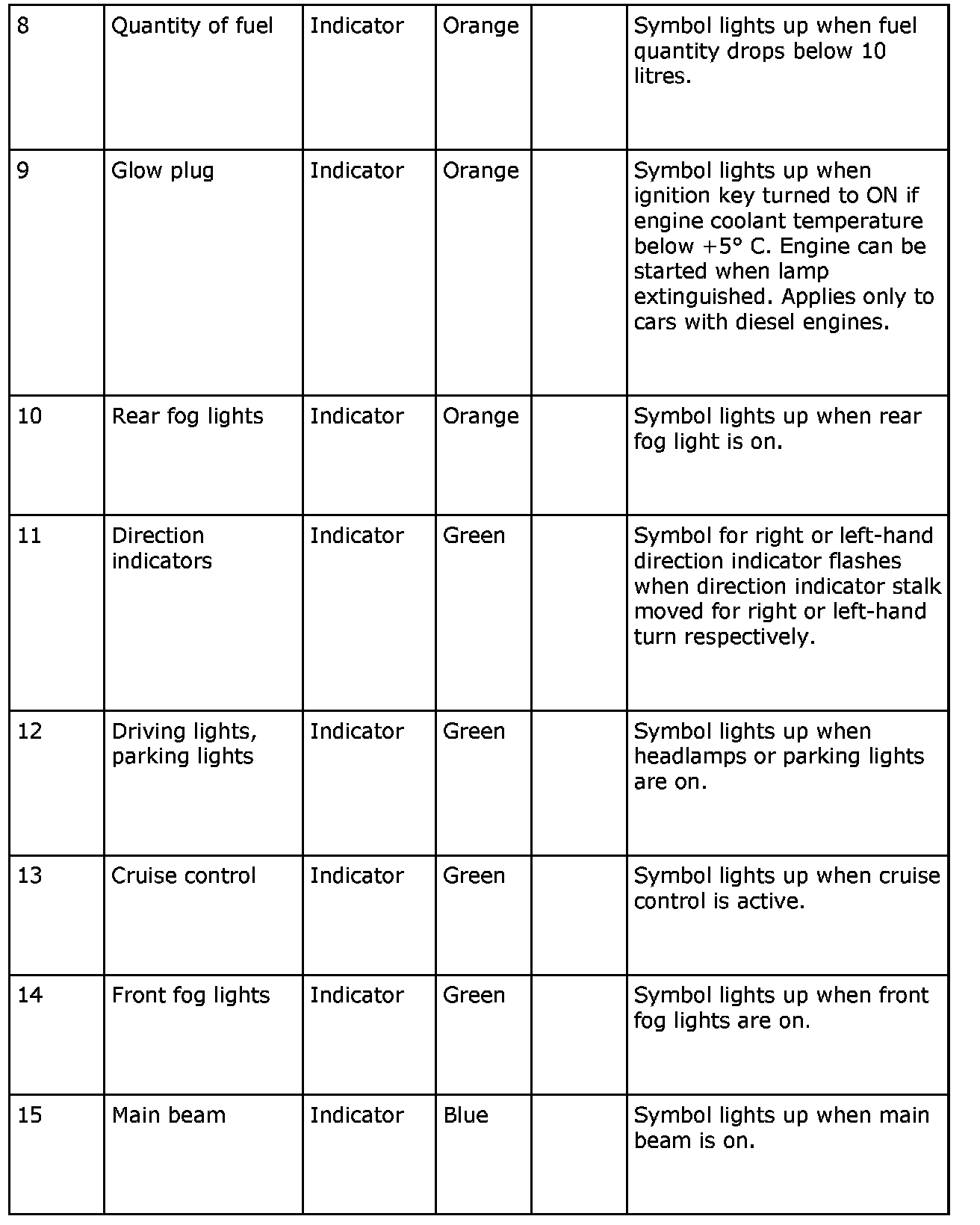

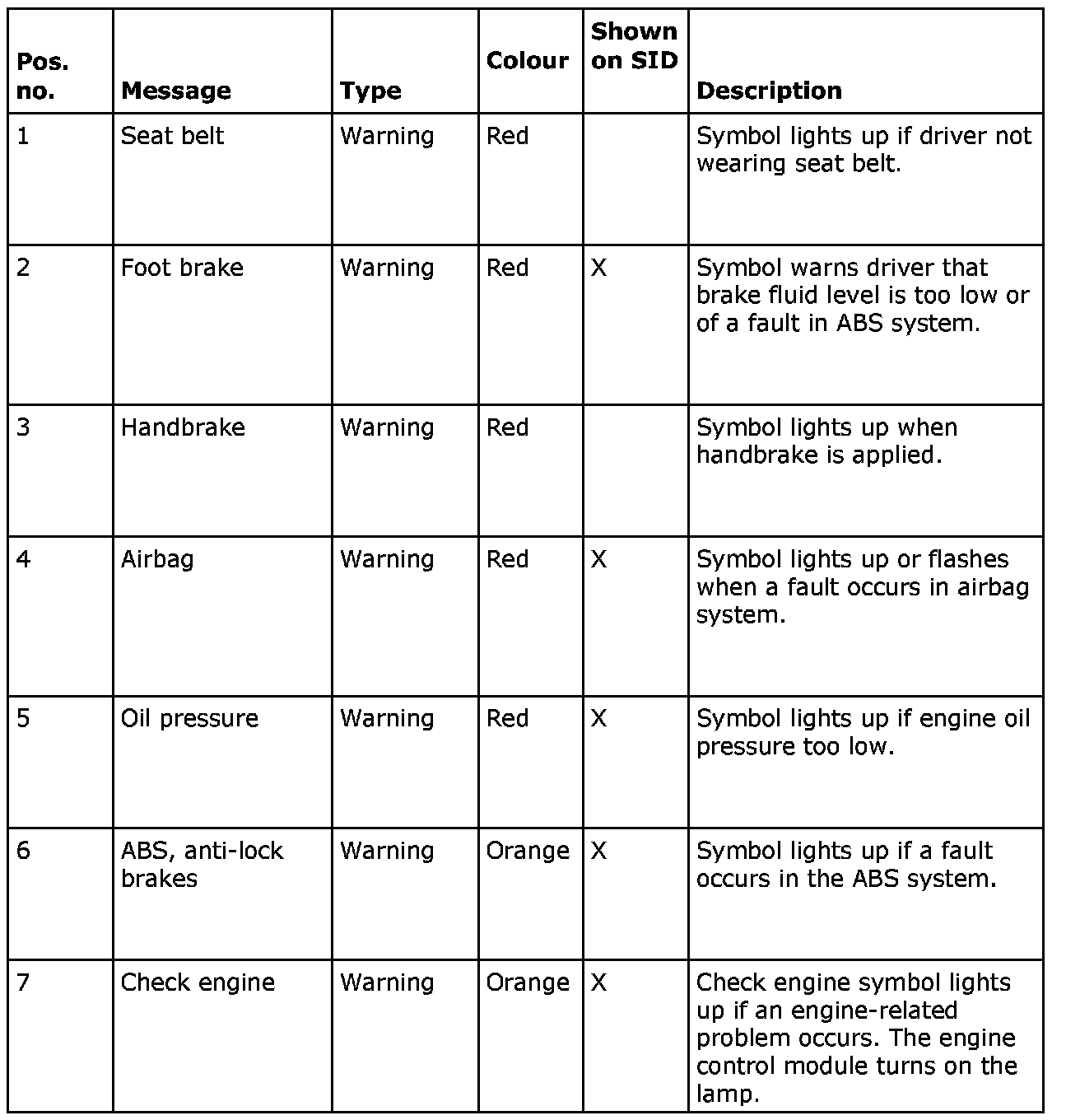

Warning and indicator lights in the main instrument unit
Messages shown at the same time on SID.

Part 1:

Part 2:

Main instrument unit display
The lower part of the speedometer displays the following:
1. Odometer and Tripmeter (green)





2. Indication on TCS or ESP (orange)
3. Gear indication for automatic transmission (green)





4. "I" for information shown on SID (orange)





5. Shift up (US/CA), manual transmissions (orange)
