A/C Button, Faulty Function

A/C Button, Faulty Function







Fault symptom
No A/C function.

Conditions
Ignition ON.
No Diagnostic Trouble Codes Stored

Diagnostic help

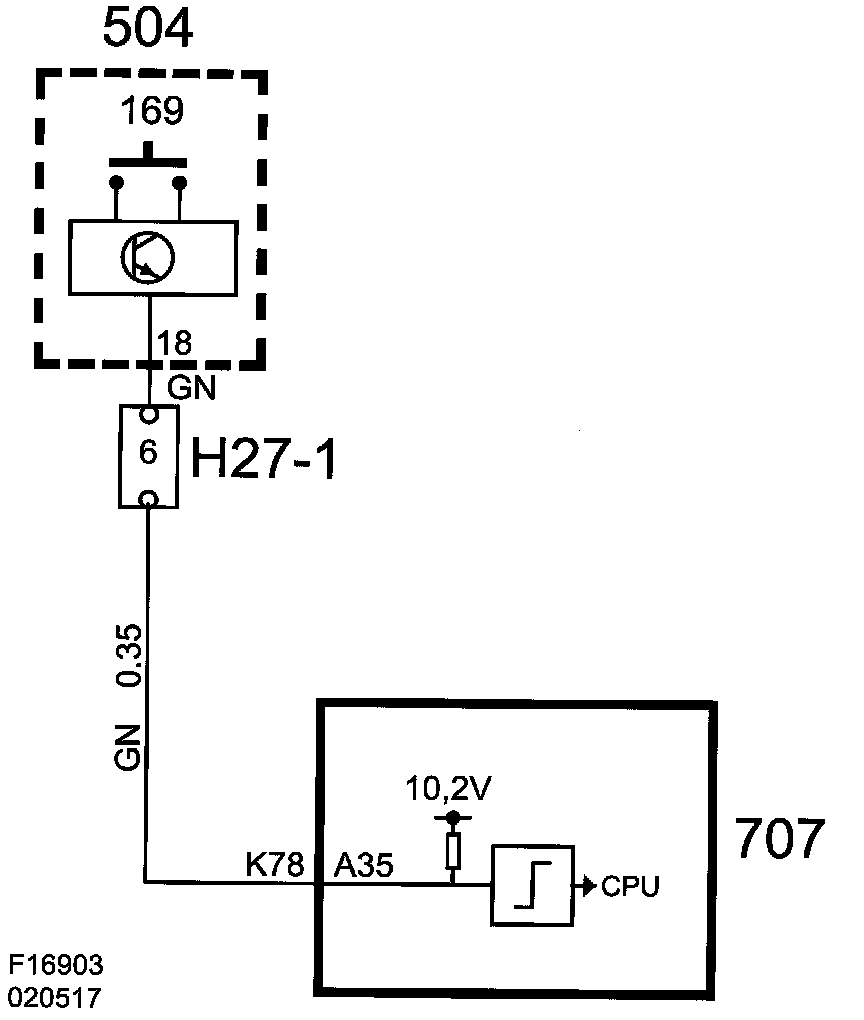

Fault diagnosis detects fault in A/C button and corresponding lead only.

Test value:
A/C, Request from MCC
(See also description of readings/activations in diagnostic tool)
