FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2005
>>
9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Specifications
>>

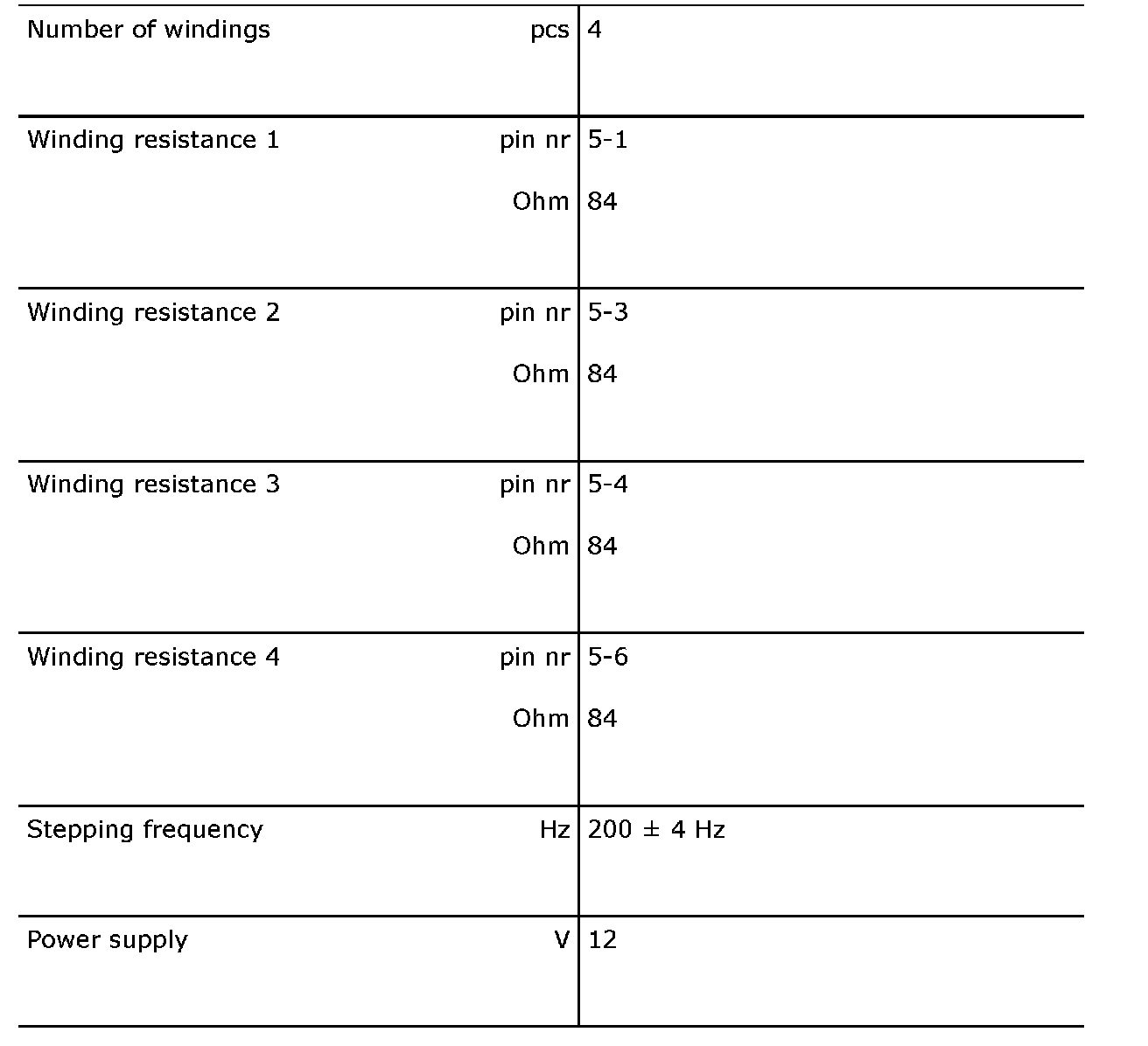

Electrical Specifications
>>
Air Door Actuator / Motor, HVAC
>>
Automatic Climate Control
>>

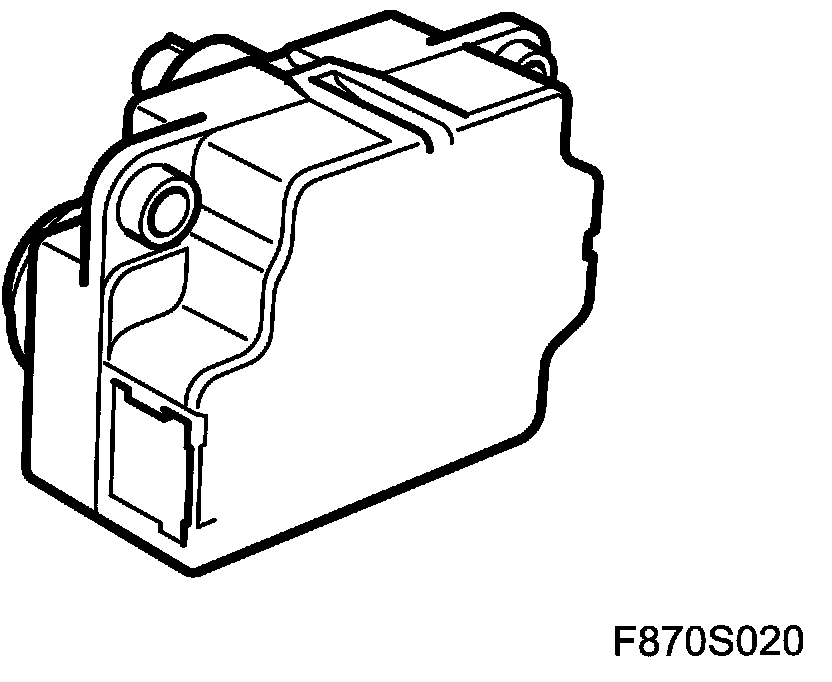

Right Mixed Air Stepping Motor (222RH)
Right Mixed Air Stepping Motor (222RH)
Right Mixed Air Stepping Motor (222RH)
