Electrical Centre, Trionic T8, 727 In the Engine Bay

Electrical Centre, Trionic T8, 727 In The Engine Bay







Location
The electrical centre in front of the battery

Main task
Act as the electrical centre for the engine management system T8 as well as the petrol pump relay 102, which is located in the compartment under the right A-pillar.

Type
Electrical centre with relays, maxi and micro-fuses.

Content
The electrical centre is integrated into the engine harness.

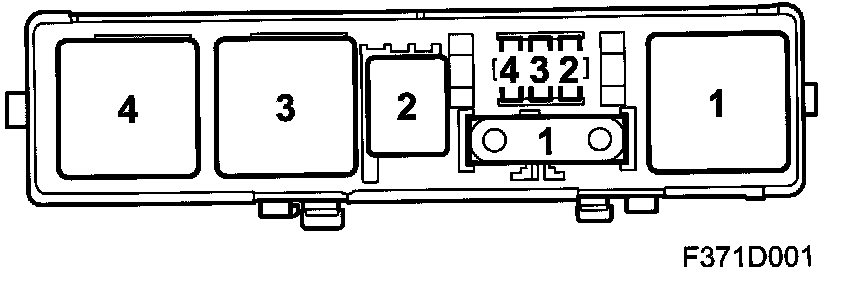

Power supply, electrical centre Trionic T8

Fuses

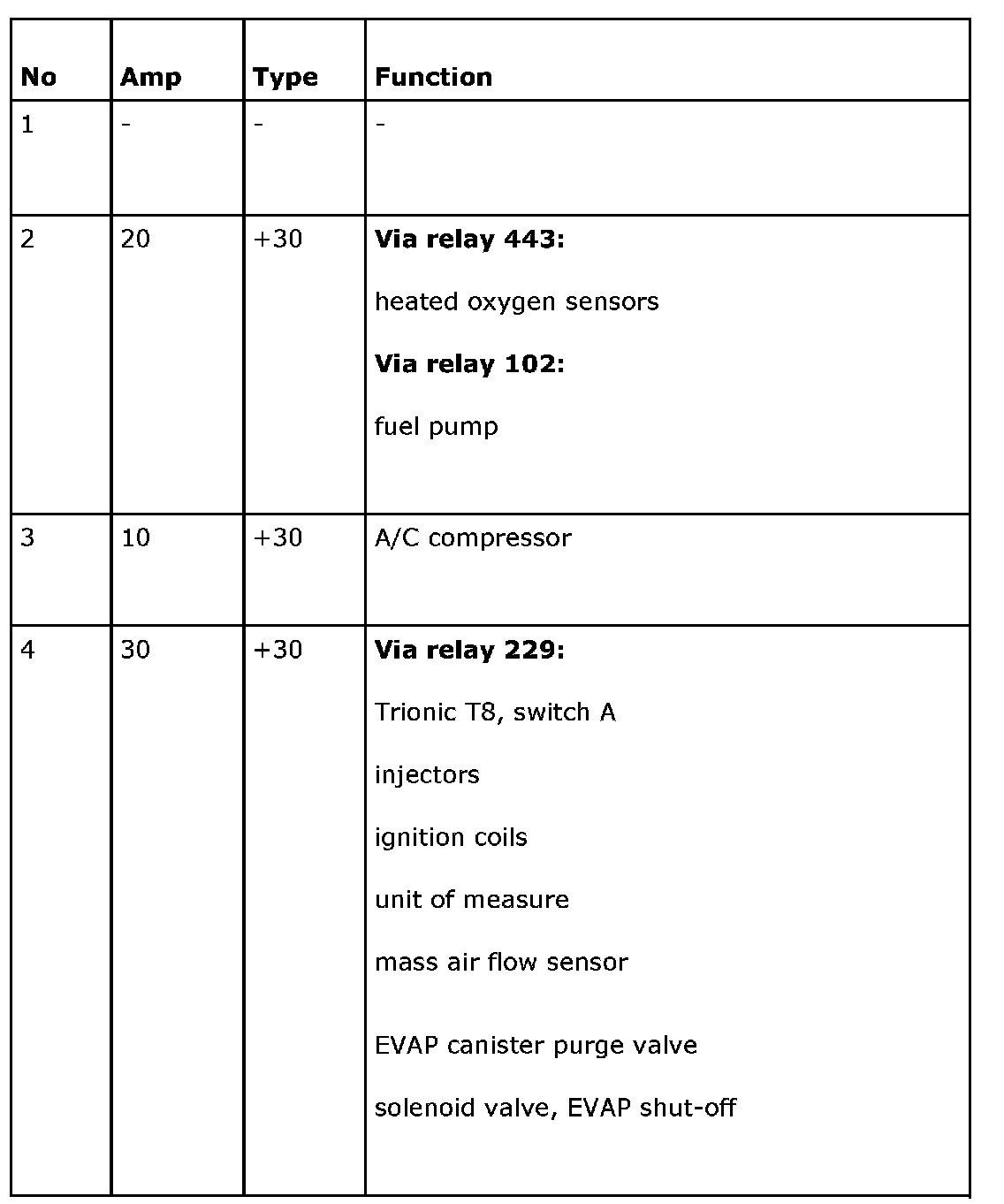

Fuse No. 1-4:

Relays
