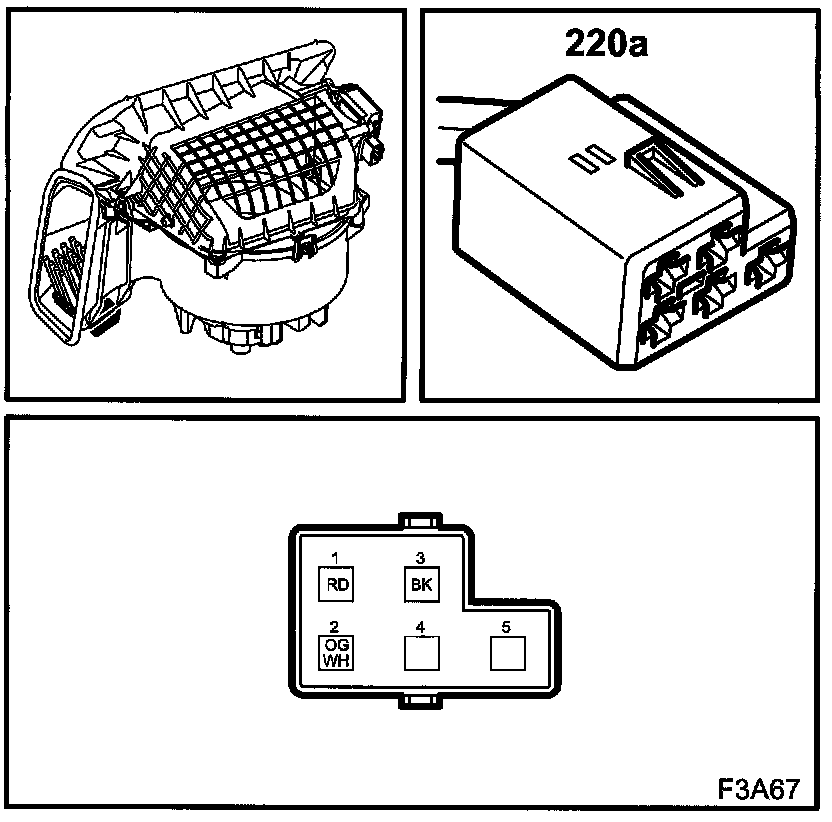

Control Unit, Ventilation Fan, MCC (220a)



Control Unit, Ventilation Fan, MCC (220a)

Location:
component: inside the fan housing on the underside
connector: in the centre of the floor duct
