FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2005
>>
9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Component Locations
>>
Heating and Ventilation, A/C
>>
Compressor, A/C (170)
Compressor, A/C (170)
Compressor, A/C (170)

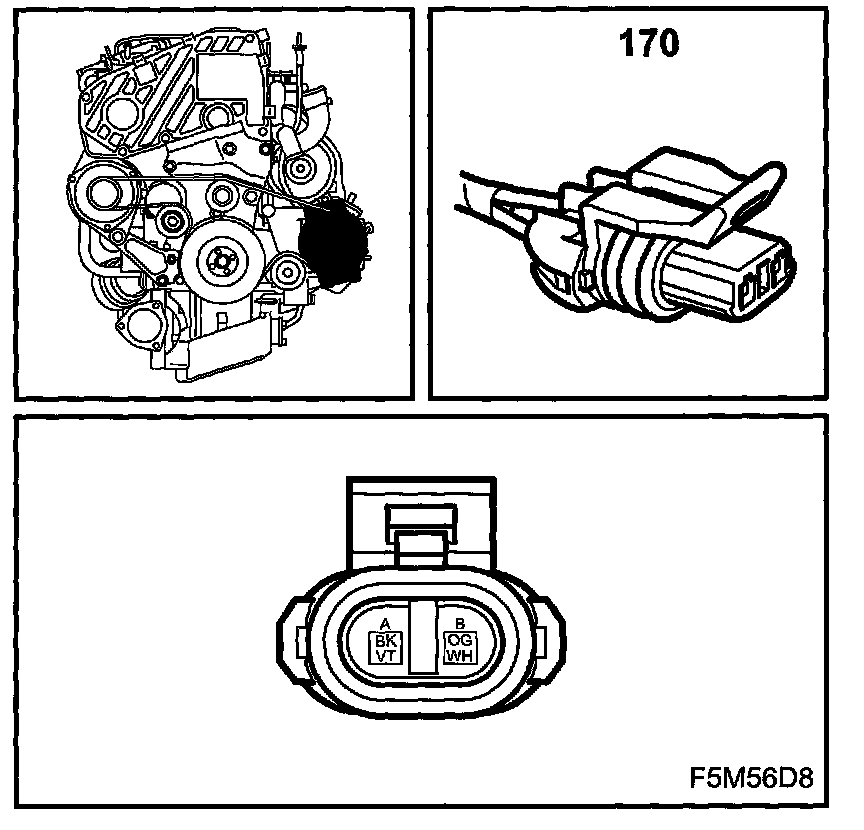

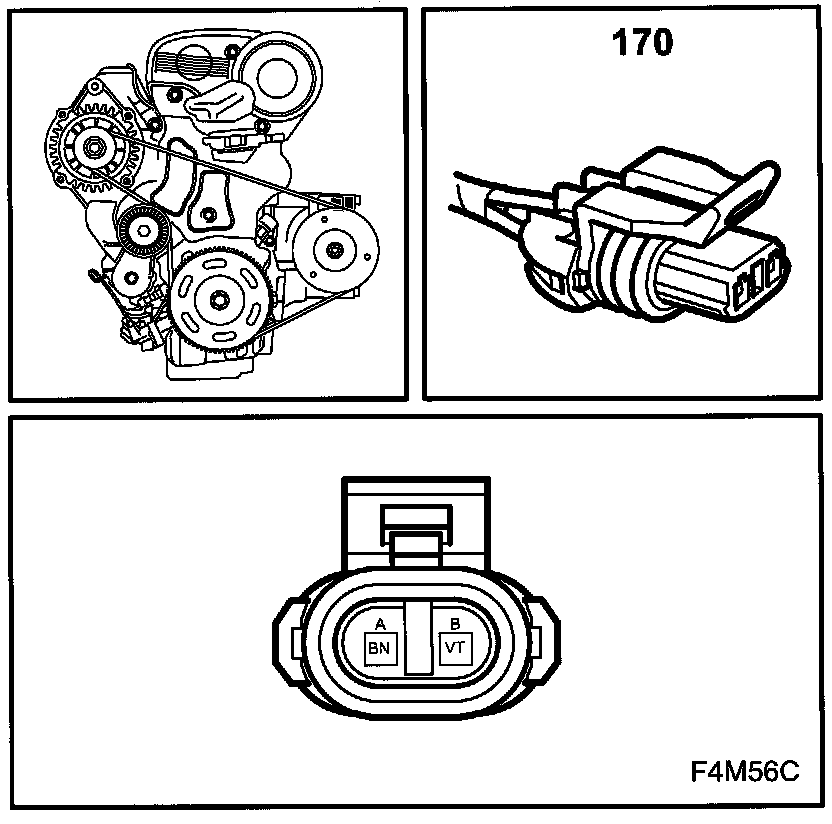

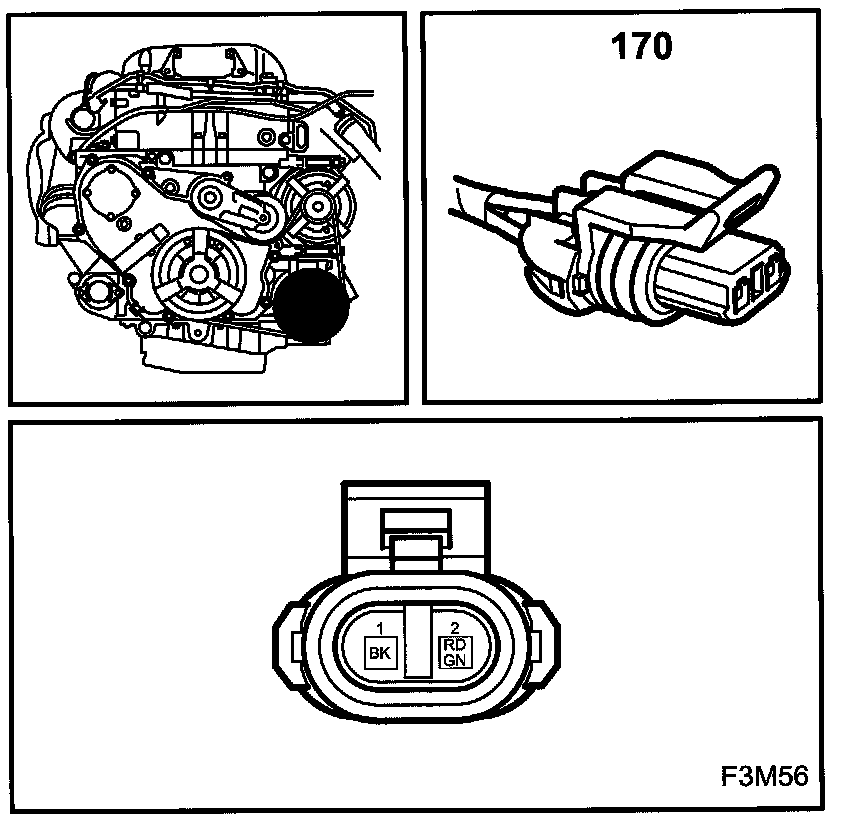

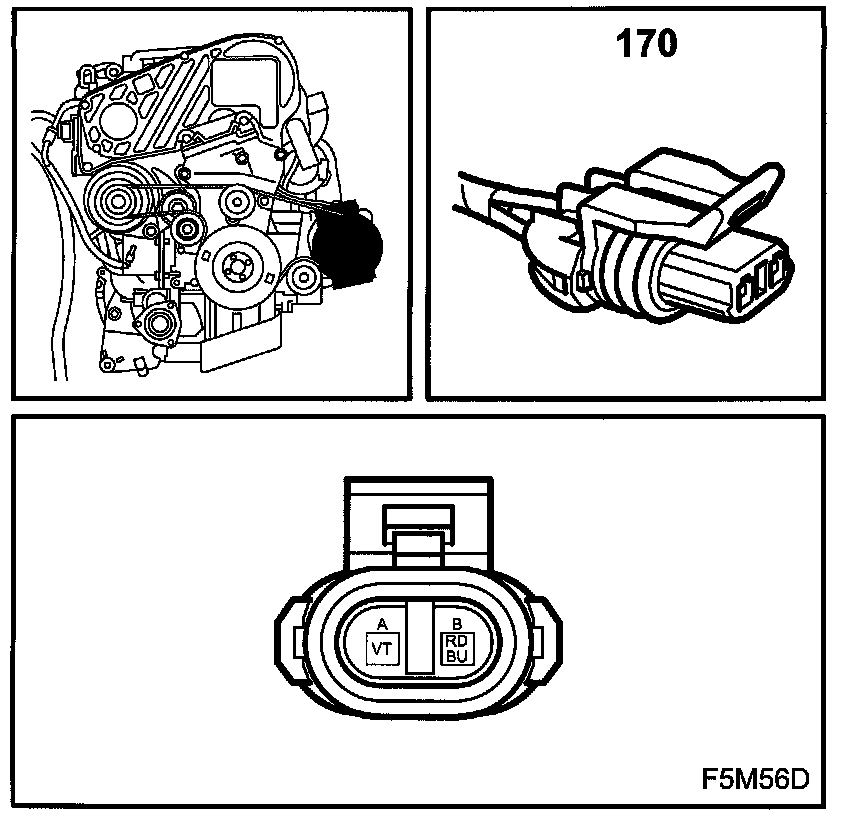

Location:
on the front long side of the engine (right)
B207
Z18XE
Z19DT
Z19DTH
