Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Component Locations >> Automatic Climate Control, ACC >> Motor, Air Mixing Damper, Right (222RH)

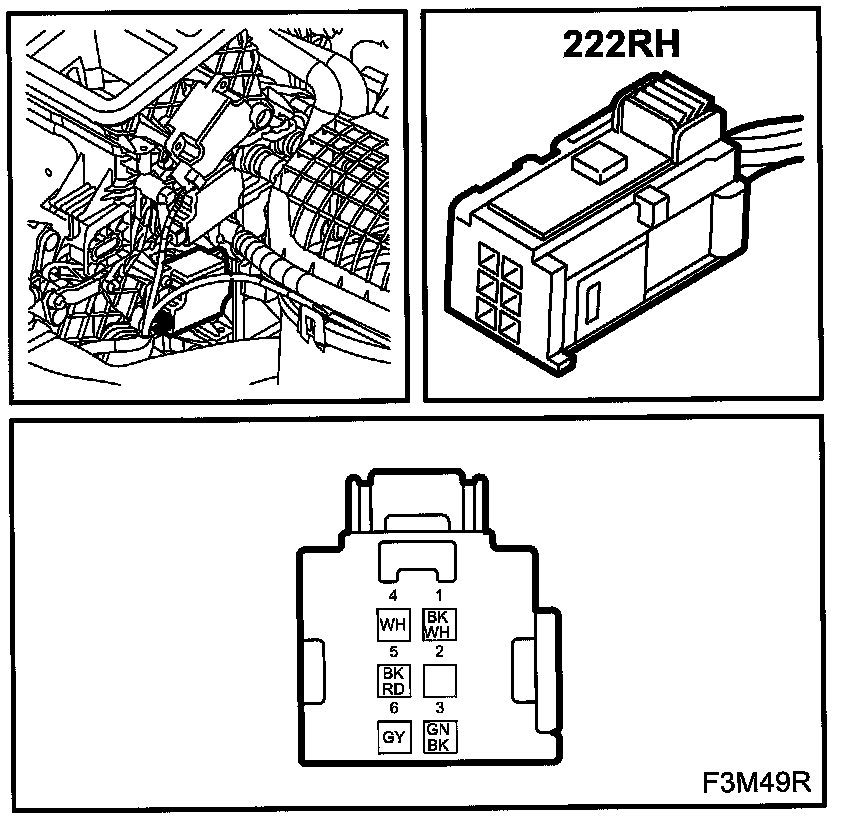

Motor, Air Mixing Damper, Right (222RH)



Motor, Air Mixing Damper, Right (222RH)

Location: lower motor on the RH side of the heating and ventilation unit
