Motor, Ventilation Fan (36), MCC

Motor, Ventilation Fan (36), MCC

Main function
The ventilation fan provides the cabin interior with air from outside the car or inside the cabin depending on the position selected for the air recirculation flap.

Type
Direct current motor.







Connection

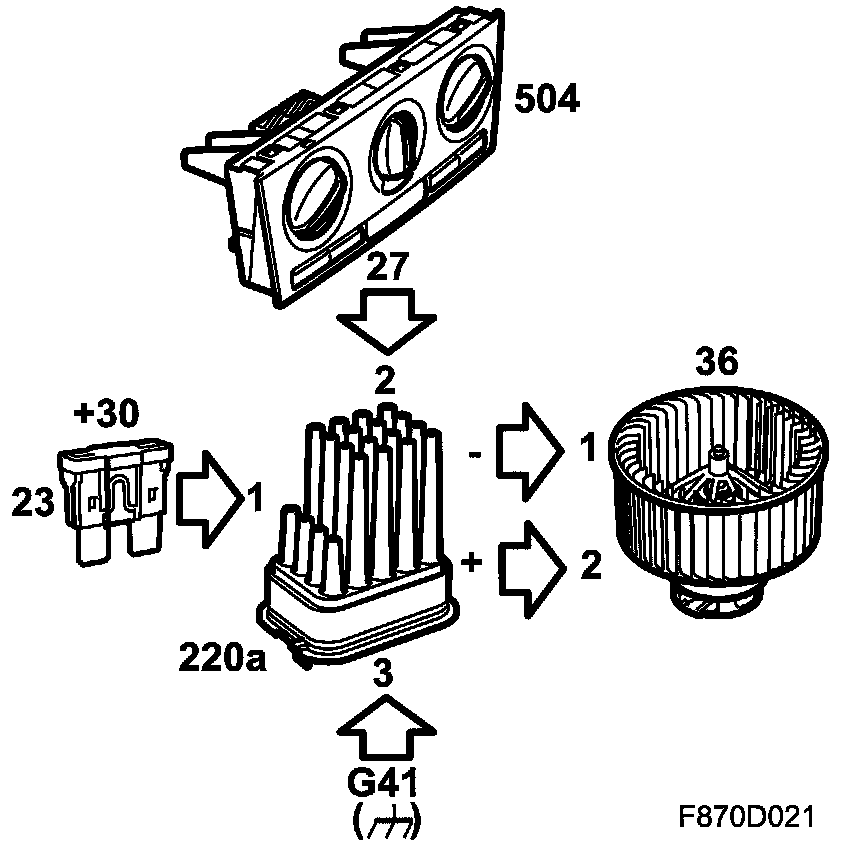

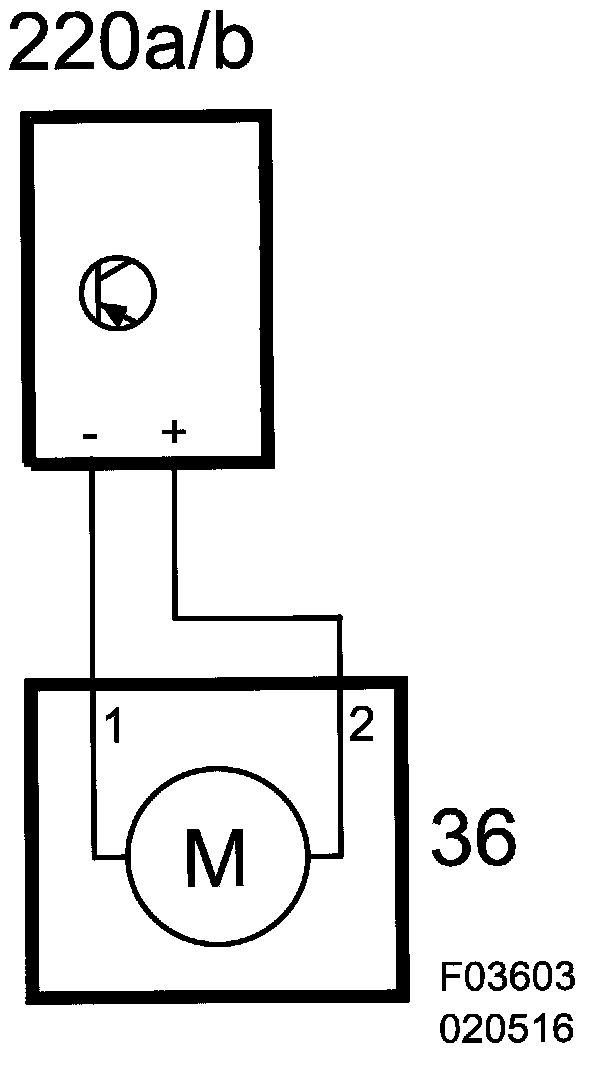

The ventilation fan motor is connected to the corresponding MCC fan control unit.










For MCC connection, see Control unit, MCC ventilation fan (220a).
