Sun Sensor (223)

Sun Sensor (223)

Main Function
The solar sensor provides information regarding the intensity of the sun and its position.

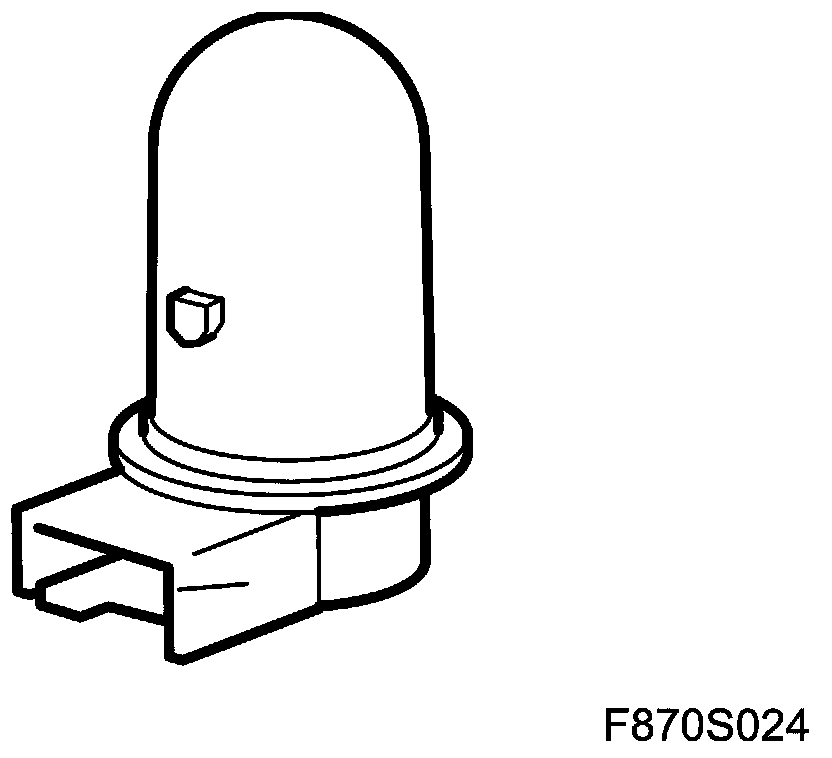

Type
The solar sensor contains 5 solar cells: left, right, front, rear and top. The treated plastic housing allows infrared light (heat radiation) through only. The ACC control module sends a B+ pulse feed to the sensor and grounds the sensor. Voltage from the 5 sensor elements are sent in succession to the ACC unit which then calculates the sun's intensity and position.

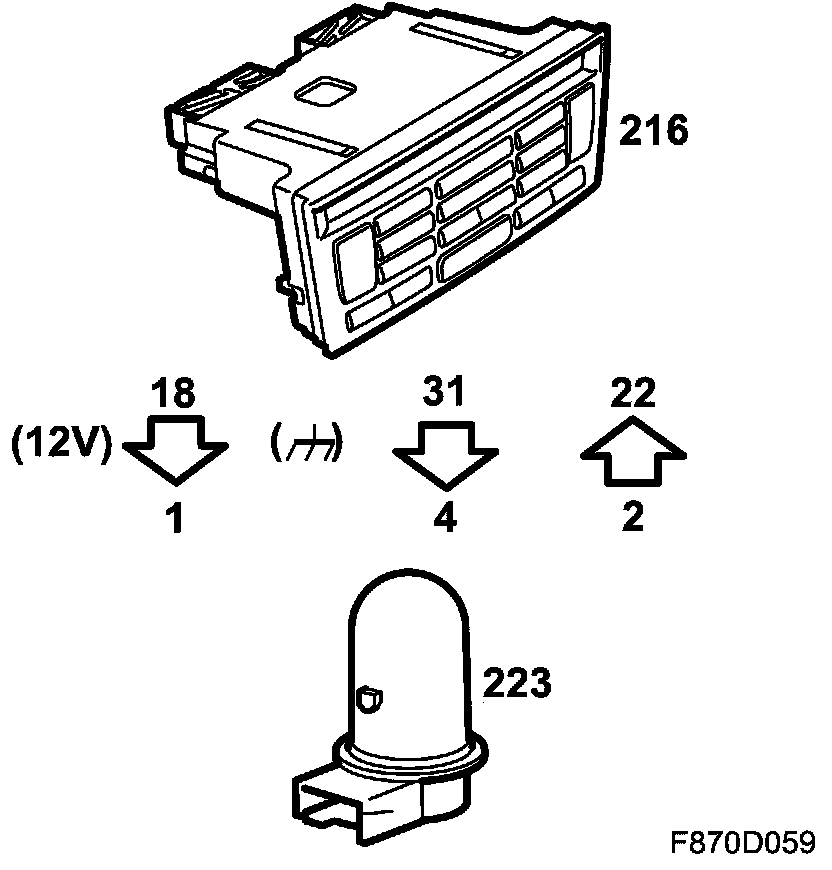

Connection

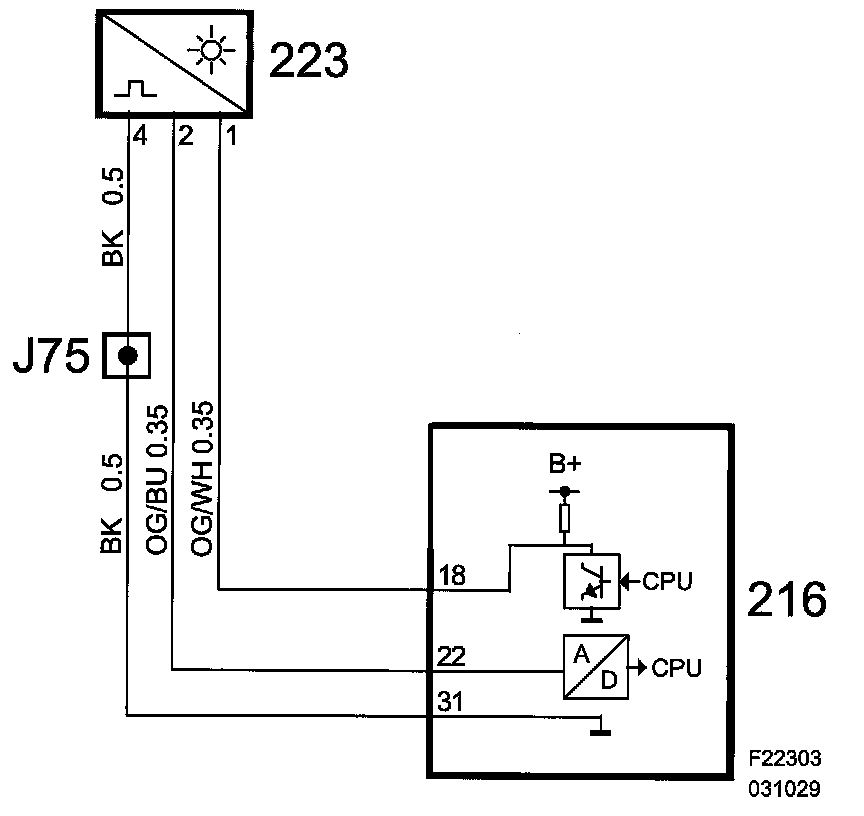

Solar sensor pin 1 receives a B+ pulse feed from ACC control module pin 18 (K32) and is connected to ground with pin 4 from ACC control module pin 31 (K32). Voltage from the 5 sensor elements are sent in succession from pin 2 to ACC control module pin 22 (K32).
