Motor, Air Distribution, Defroster (714)

Motor, Air Distribution, Defroster (714)

Main Function

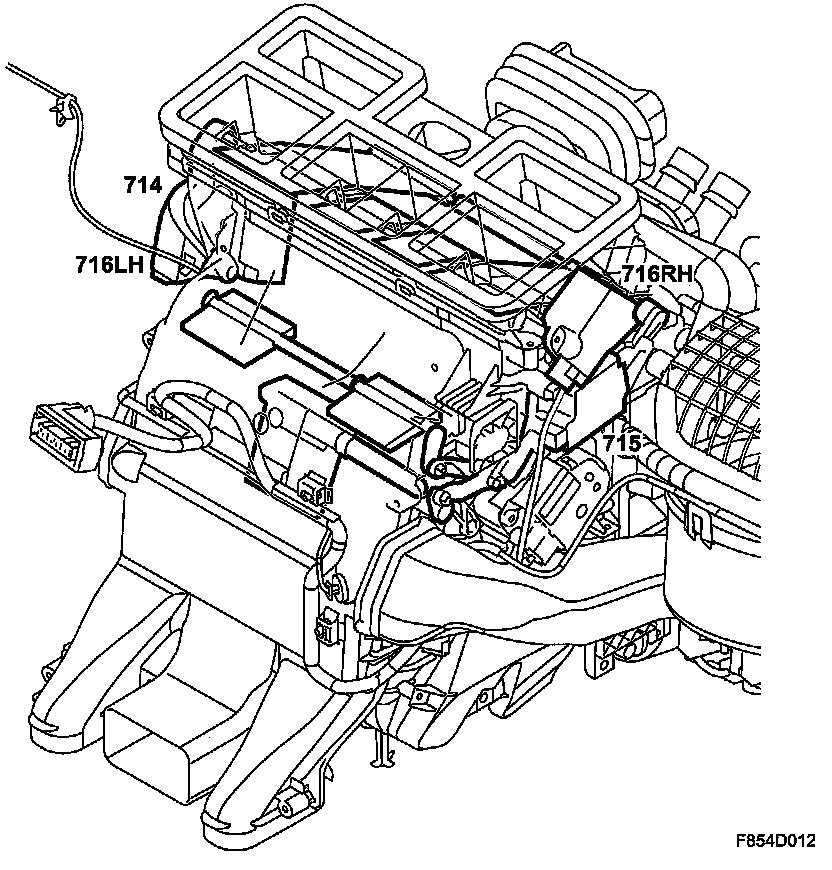

The stepping motor is connected via linkage and controls the defroster damper which is used for both climate zones.







Type

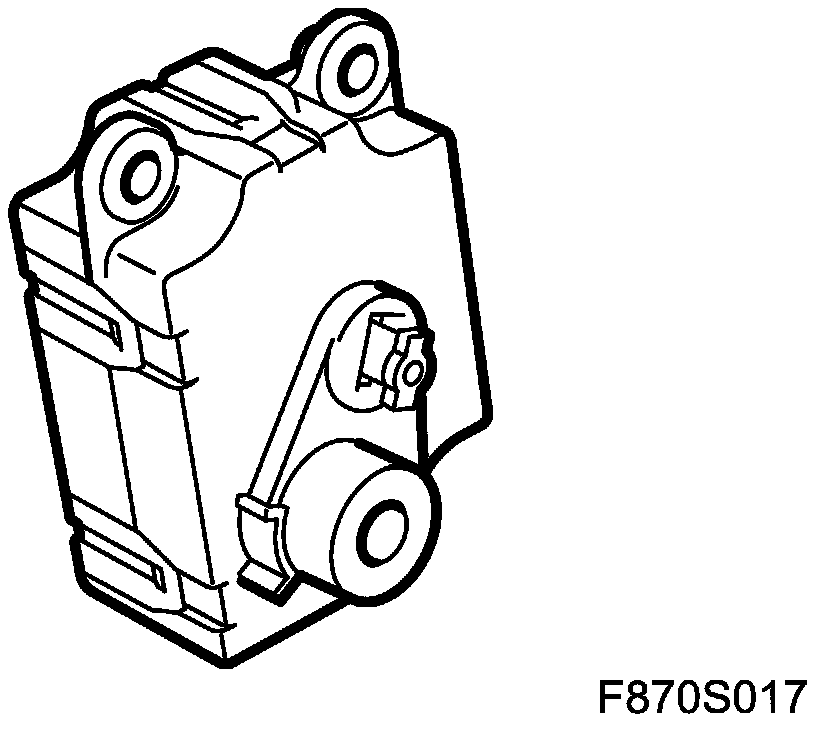

The unipolar stepping motor consists of a rotor (10 poles) and four stator windings. A gearbox transfers the power from the rotor to the lever which controls the damper.







Connection

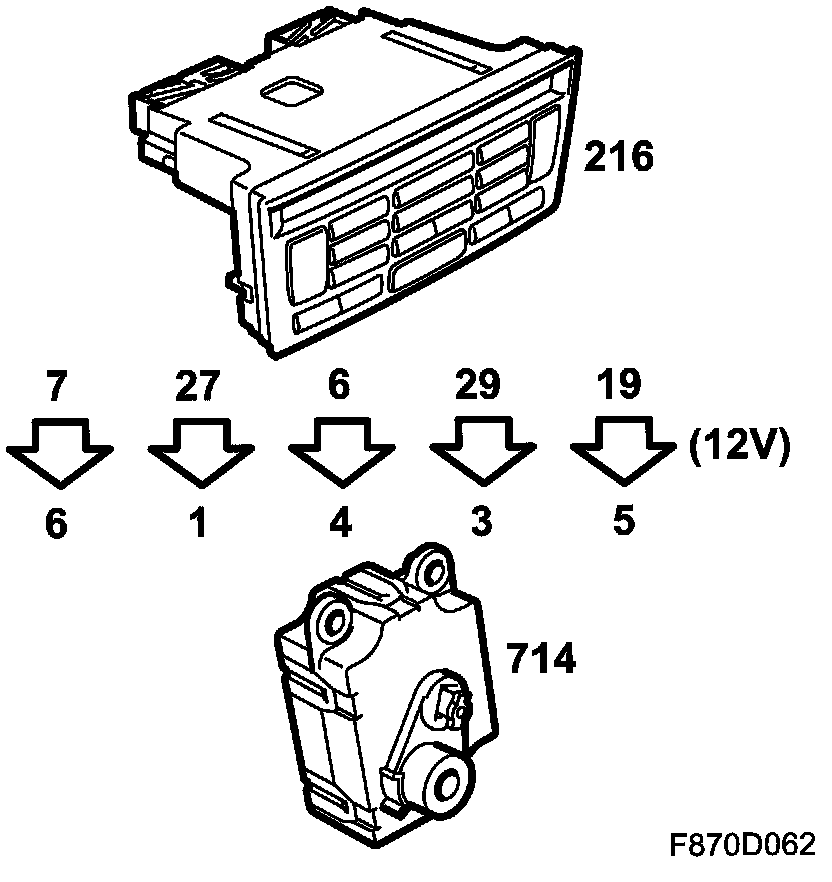

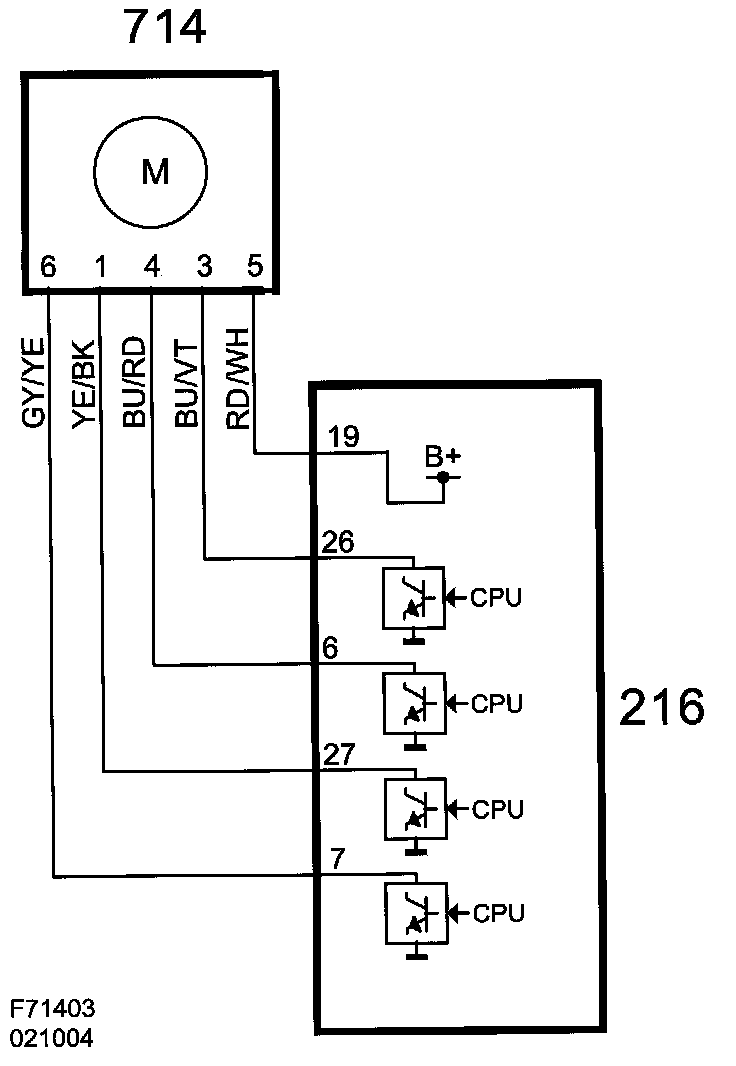

The four stepping motor windings receive a common B+ feed from ACC unit pin 19 (K42) and grounds each corresponding winding (pin 7, 27, 6 and 26 in K42) in a specific order thus operating the motor in short pulses, which explains the name stepping motor. The rotational direction can be changed.










When the stepping motor is stationary, two windings are continuously grounded in order to lock the motor. The stepping motor does not need to be reconnected to the control module (position sensor). By sending a specific number of ground pulses, the ACC unit knows how far the air distribution damper has moved.
