Compressor HVAC: Description and Operation

Compressor, A/C (170)

Main task

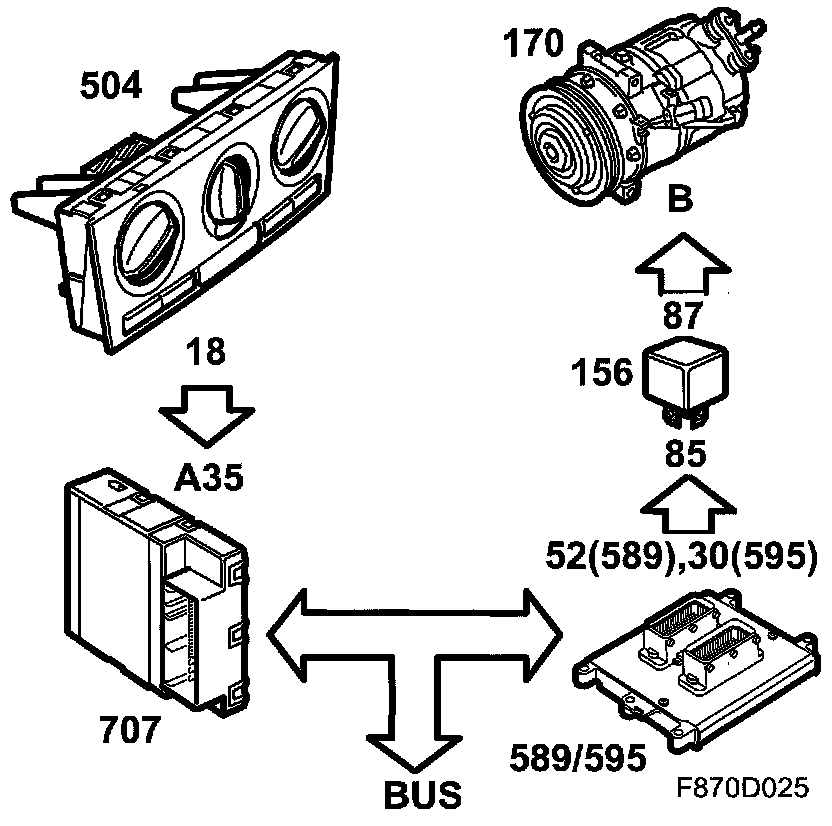

The A/C compressor electromagnetic clutch connects the belt pulley driven by the drive belt system and the A/C compressor crankcase in order to cool the climate control unit.

Type

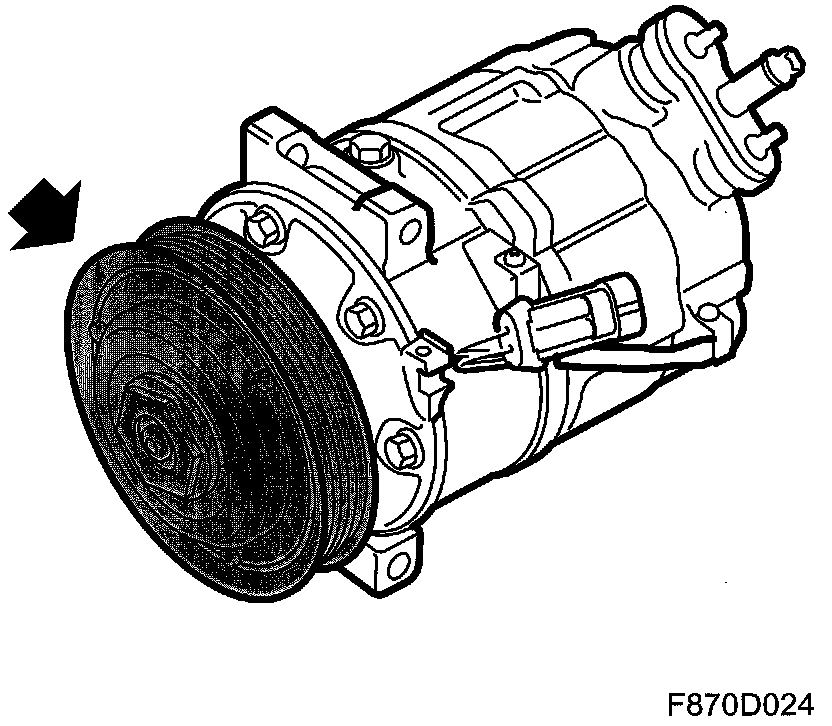

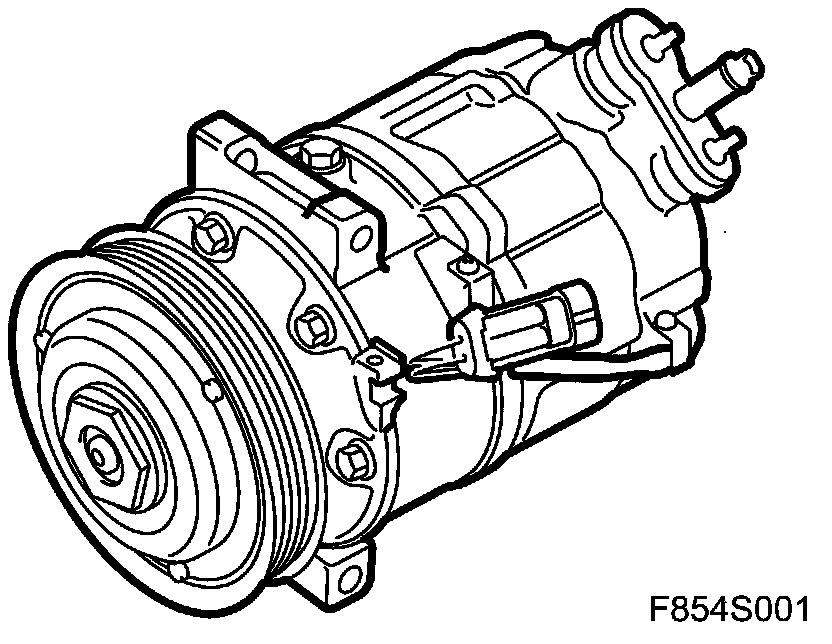

The compressor clutch consists of a coil, belt pulley and follower. When the coil is supplied with voltage, the belt pulley and follower are coupled together as one unit.

Connection
Petrol engine T8

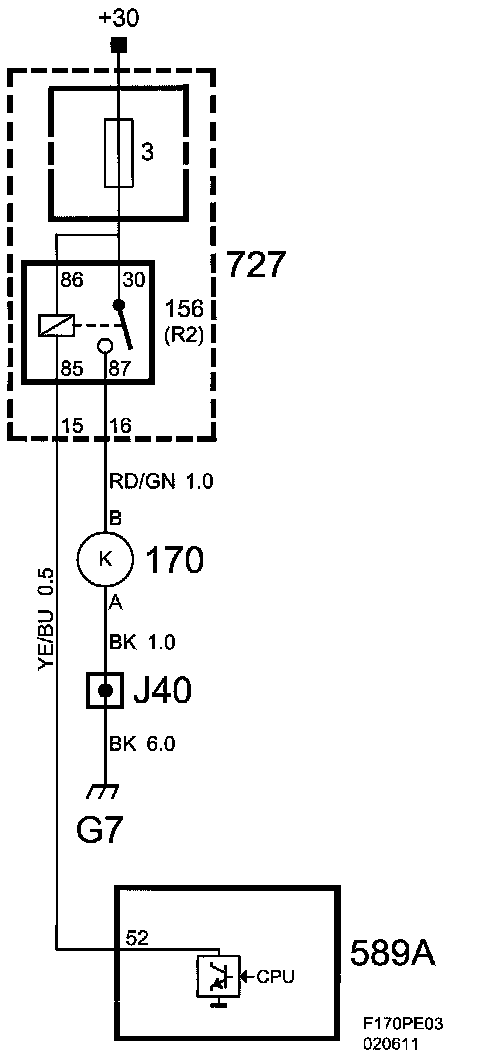

The compressor clutch is activated through a feed from relay 156 in the engine bay electrical distribution unit (727) and is connected to ground through grounding point G7A.
