Ventilation Fan Control, MCC

Ventilation Fan Control

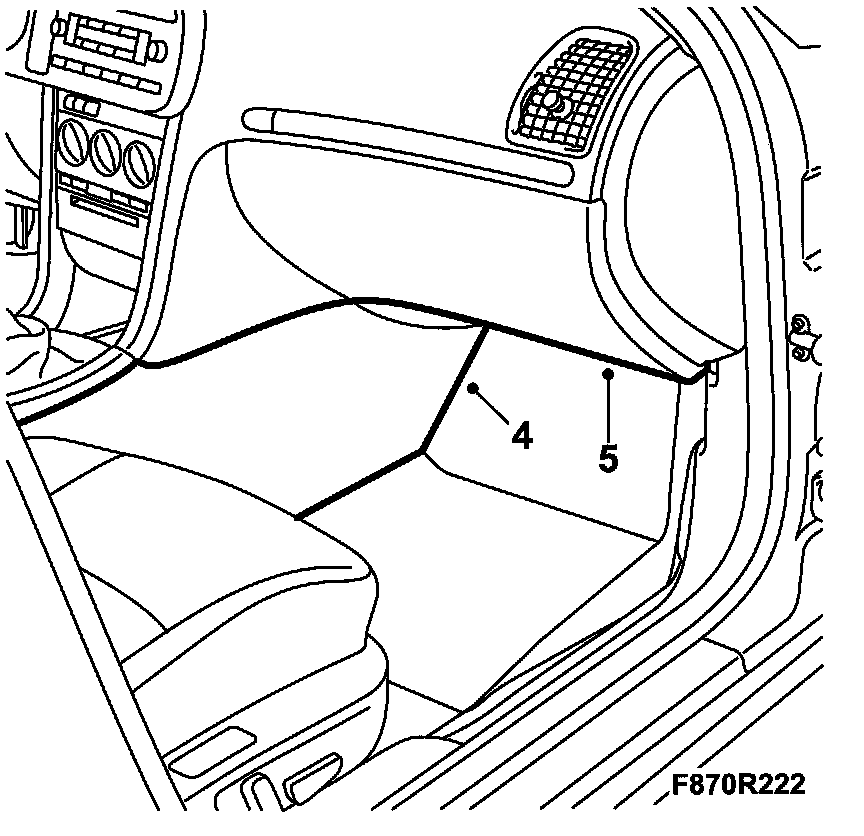

To remove
1. Remove the glove box.







2. Remove the passenger acoustic insulation .
3. Remove the clip and move the ventilation fan control to the side so that is releases from the other clip.

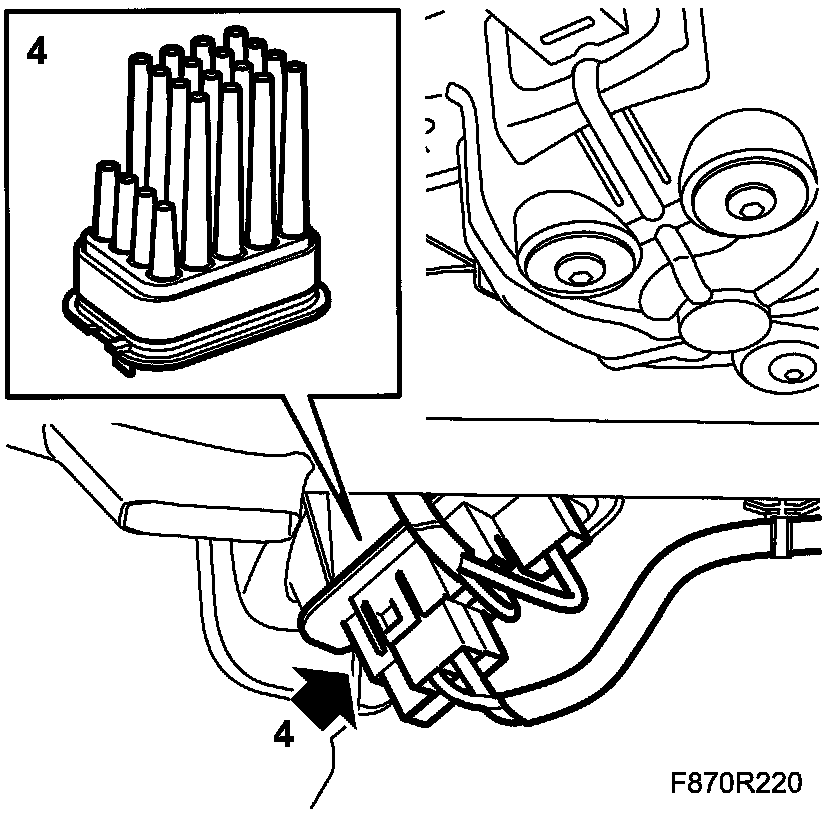

4. Dismantle the ventilation fan control's connector







5. Lift out the ventilation fan control.

To fit

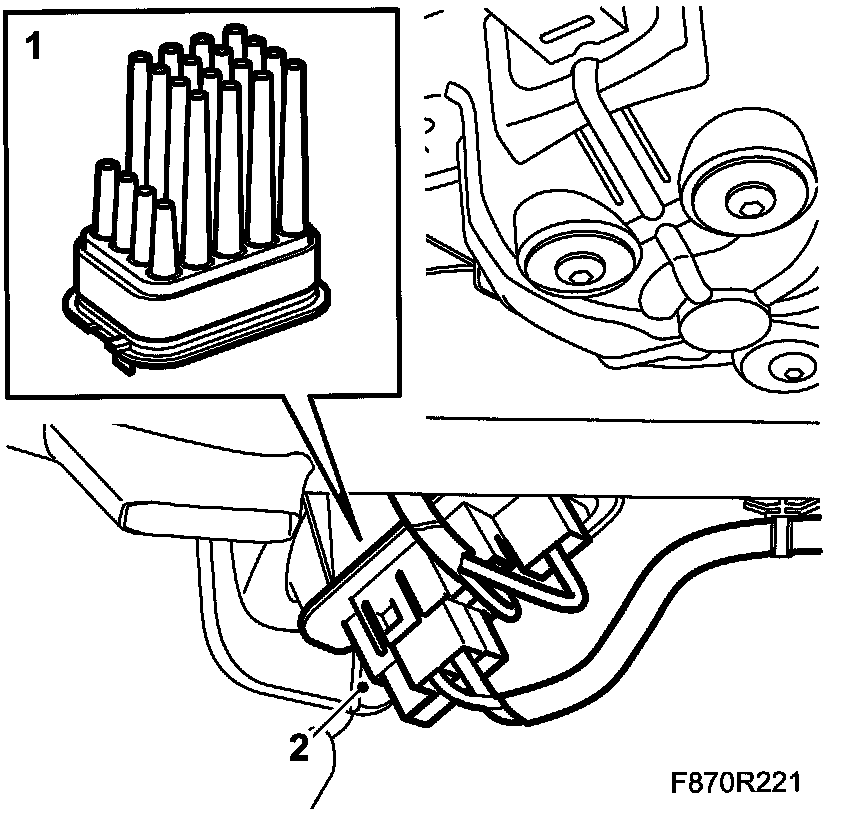

1. Insert the ventilation fan control into position.
2. Connect the ventilation fan control's connector.







3. Fit the ventilation fan control to the clips.
4. Fit the passenger acoustic insulation.







5. Refit the glove box.
