Radiator Hose: Service and Repair

Upper radiator hose
To remove

Warning: Coolant is very hot and is exposed to high pressure. When the pressure cap is opened there is a great risk of getting burnt. Observe great caution.

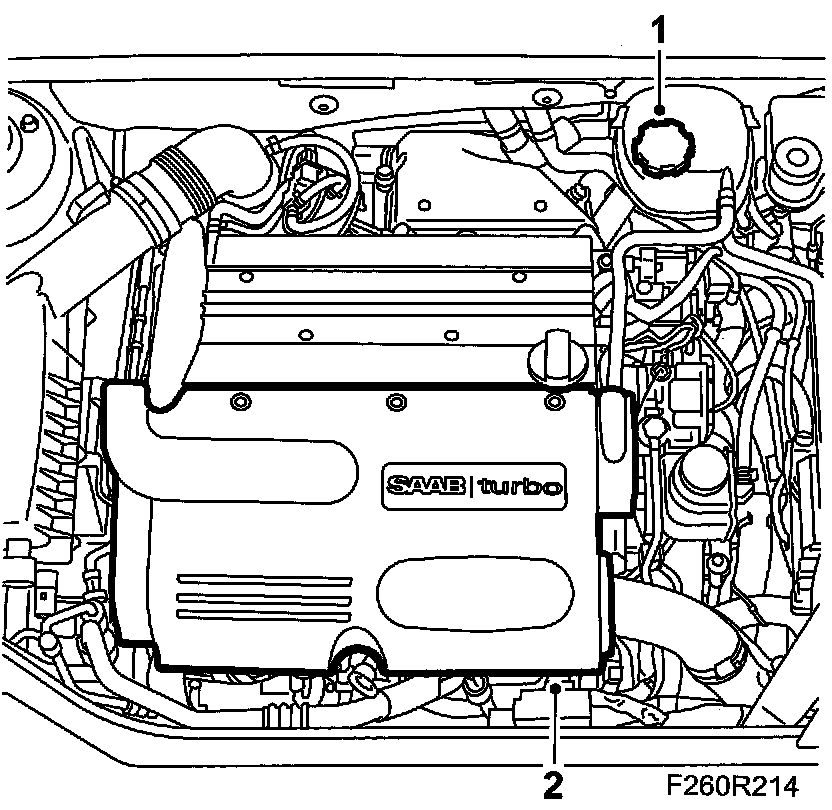

1. Undo the expansion tank cap and release the pressure.





2. Remove the upper engine cover.
3. Remove the Spoiler shield, front.

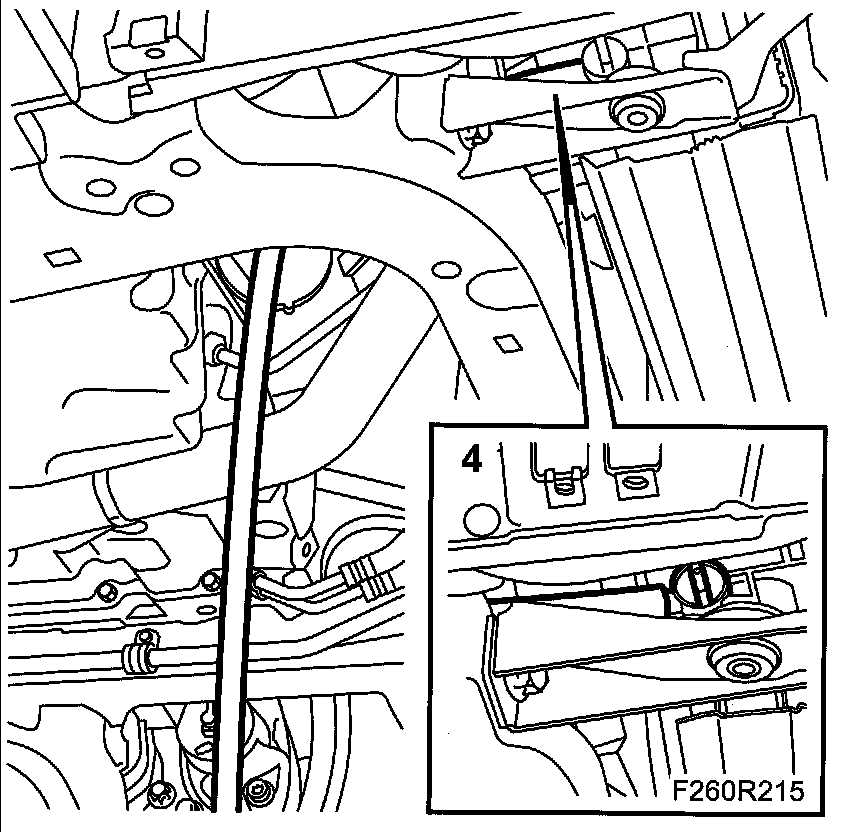

4. Place a receptacle under the car, connect a hose and drain the cooling system.

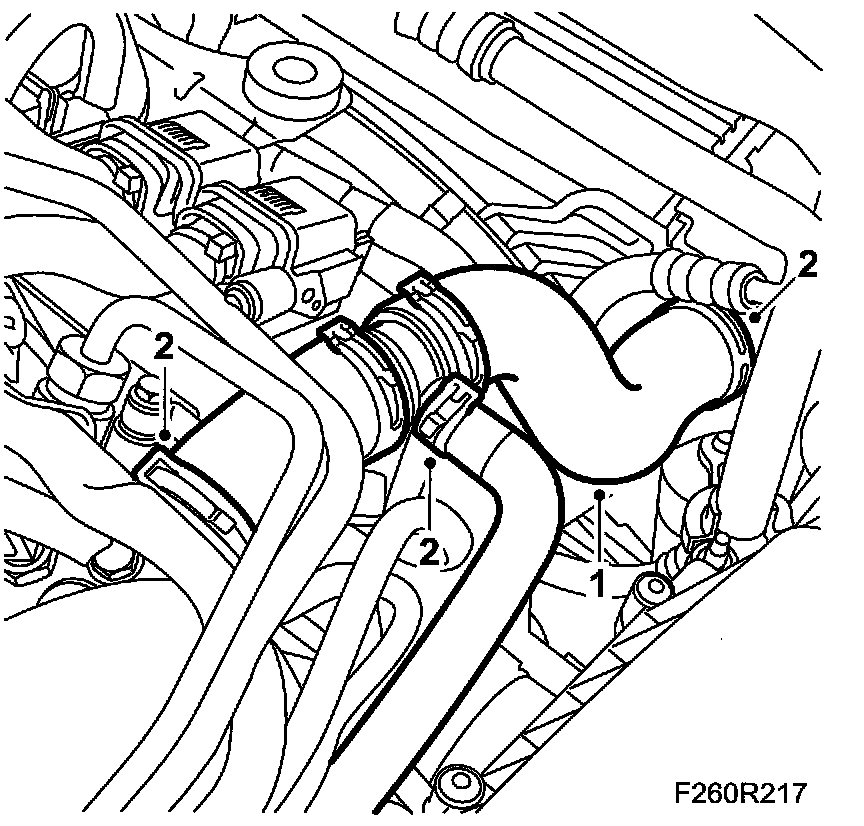

5. Remove the hose's clamps.





6. Remove the radiator hose.

To fit
1. Position the radiator hose.





2. Fit the radiator hose clamps. Pressure test the cooling system.

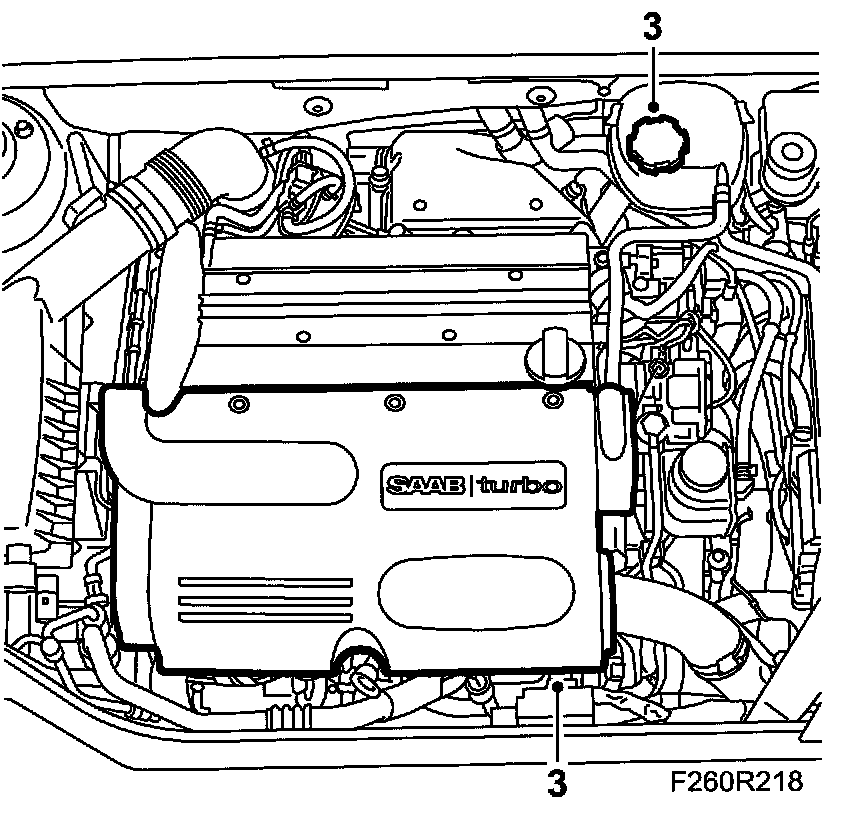

3. Replace the upper engine cover.





4. Fit the Spoiler shield, front.
5. Fill with coolant and bleed the system.
