Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Diagrams >> Related Connectors >> Trionic Engine Control Module, Switch B (589b)

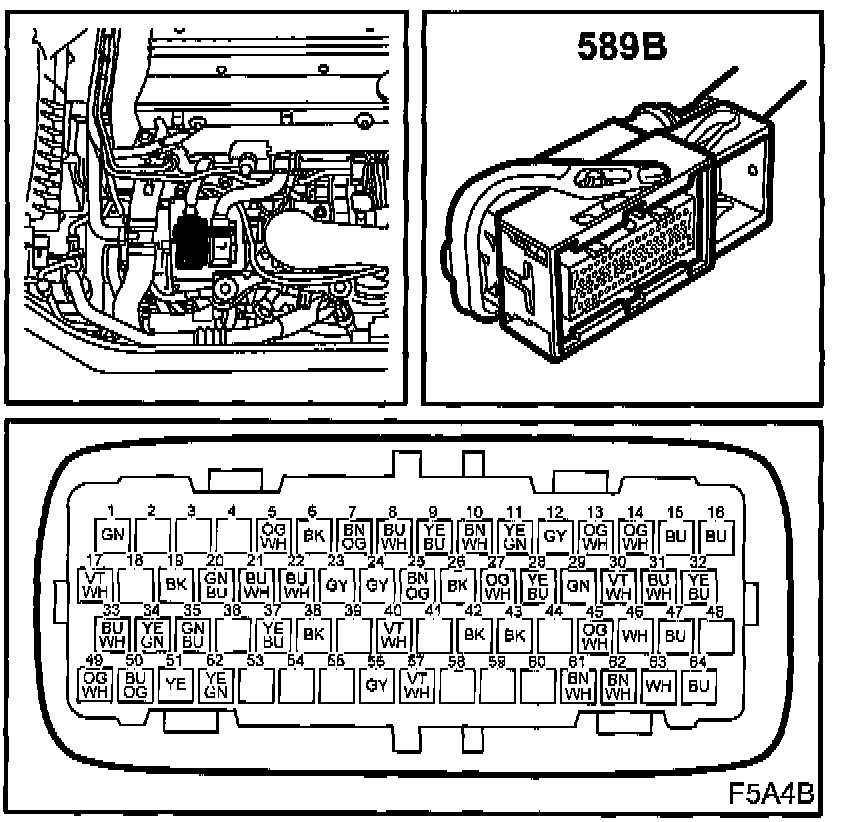

Trionic Engine Control Module, Switch B (589b)



Control Module, Trionic, B207, Switch B (589B)






Location: engine front.
