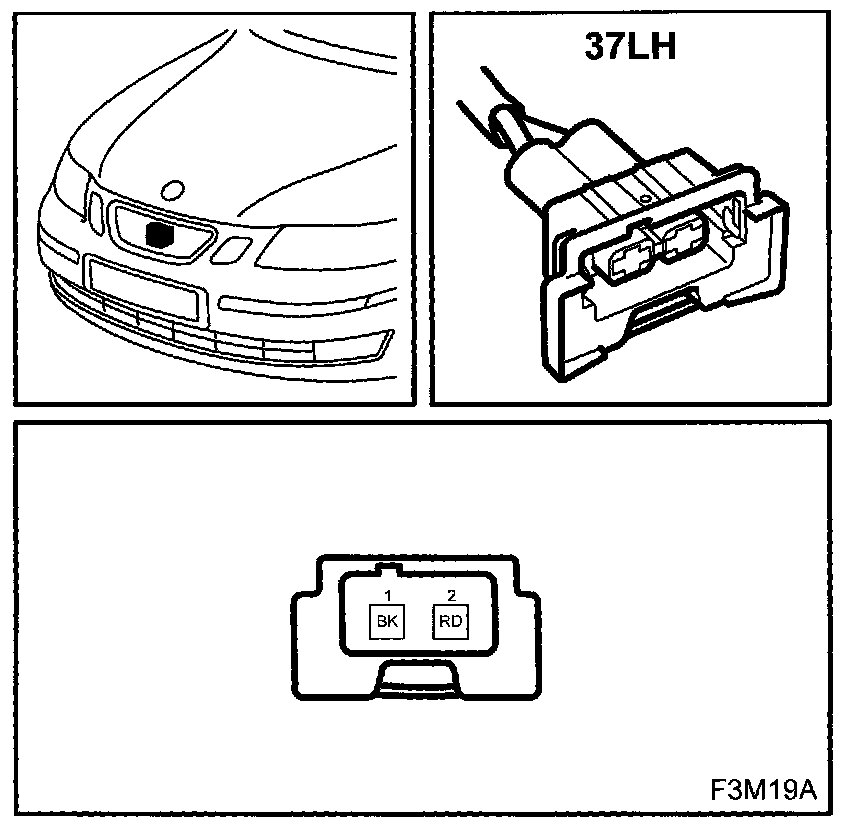

Left Radiator Fan Motor (37LH)



Location: on left side of the radiator


Left Radiator Fan Motor (37LH):
