Crimp J202, Main Wiring Harness CV



Location: Approx. 100 mm from the branching point to the roof light unit towards the LH front door

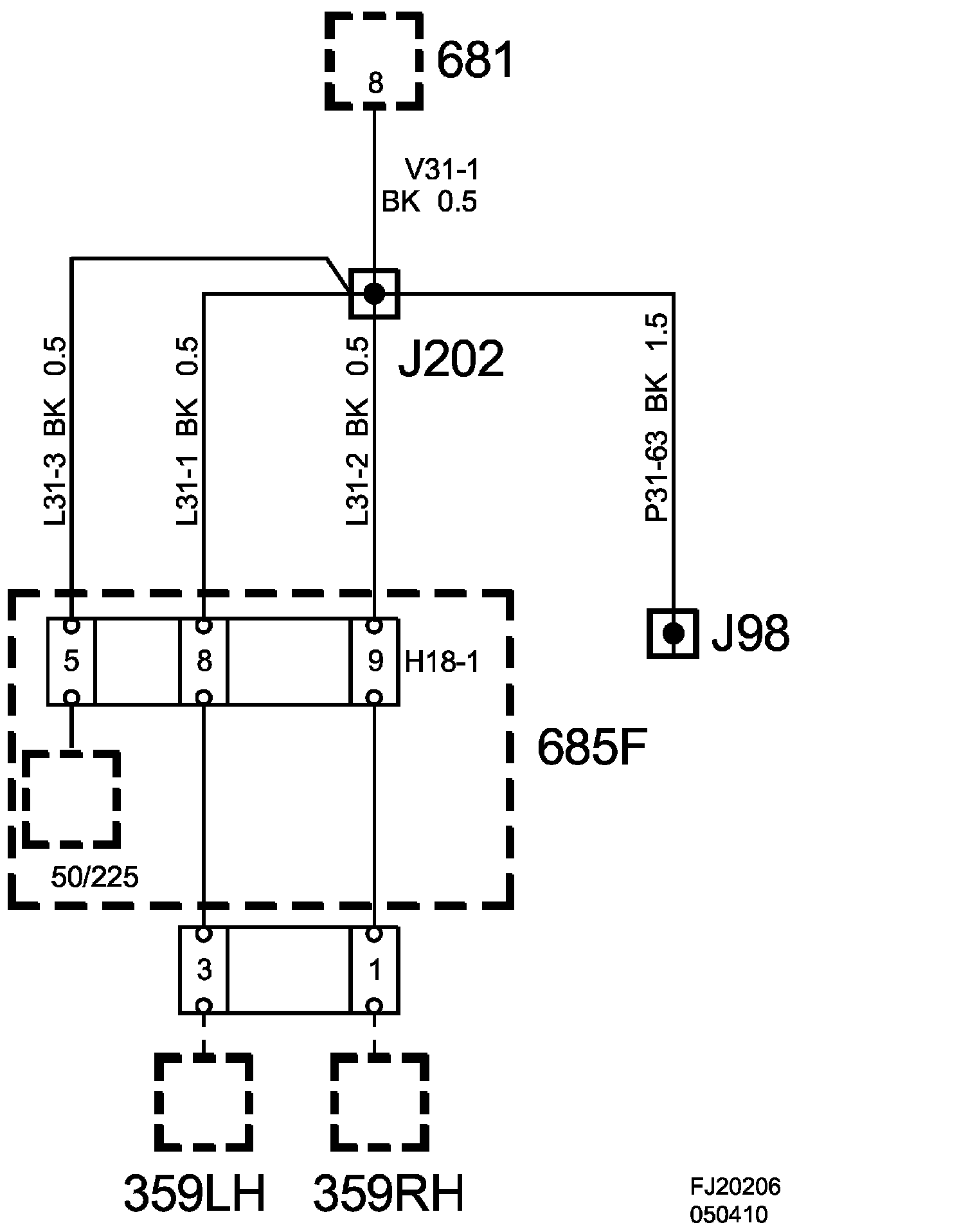

Crimp J202, Main Wiring Harness CV:

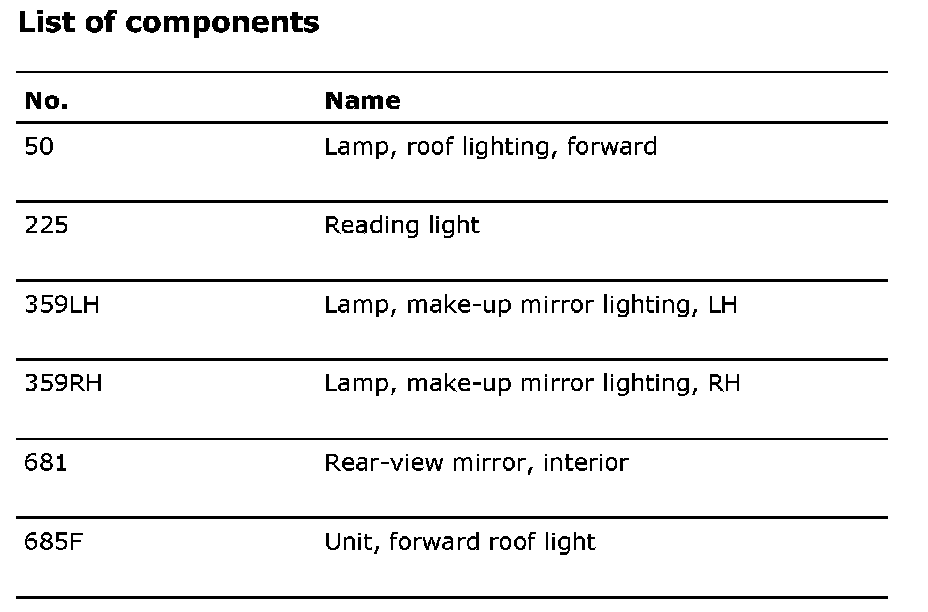

List of Components:
