Crimp J132 Outer Door Harness



Location:

4D/5D: Approx. 50 mm from branching point central locking system motor towards door connector.
CV: Approx. 50 mm from the branching point central locking system motor towards door control module

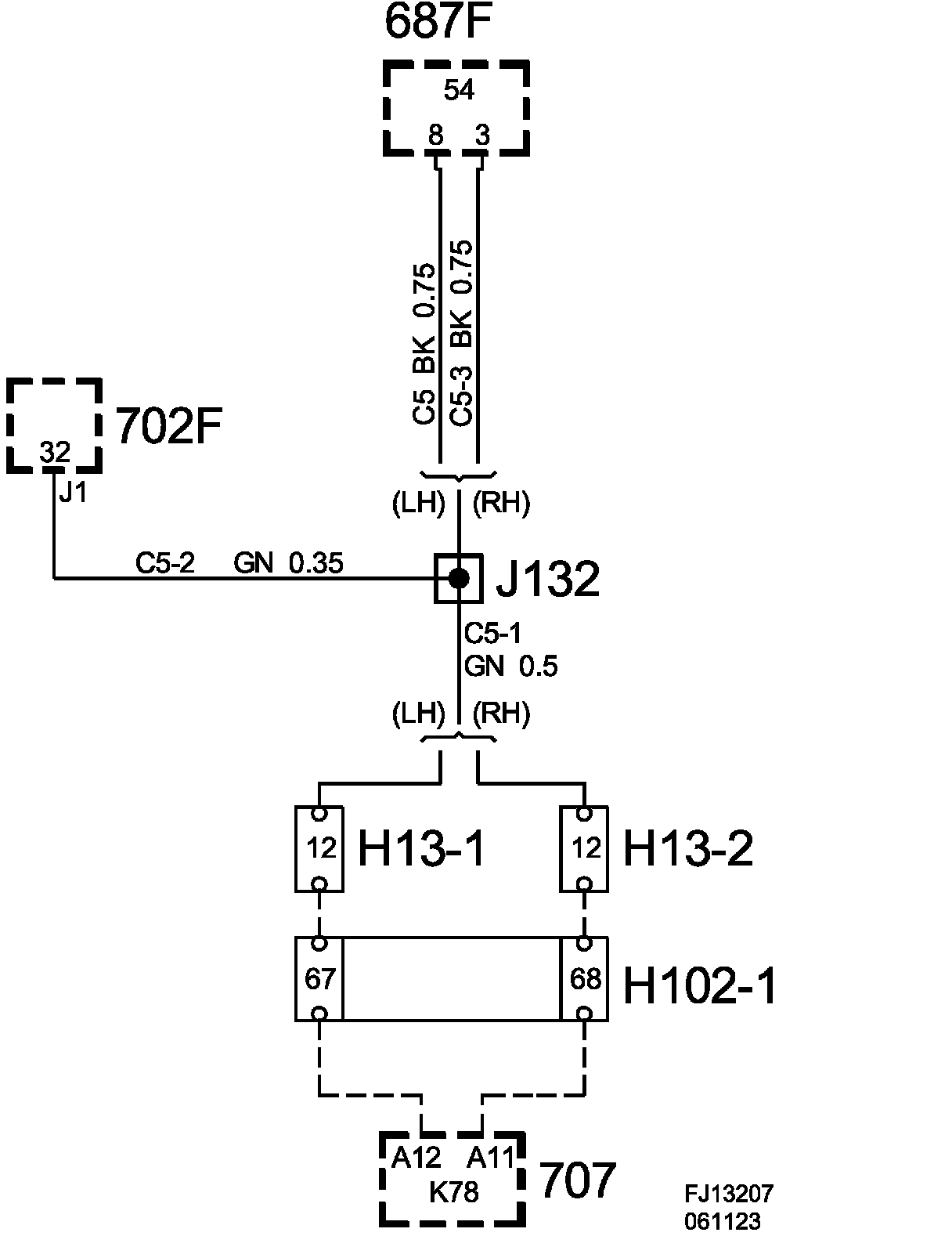

Crimp J132 Outer Door Harness:

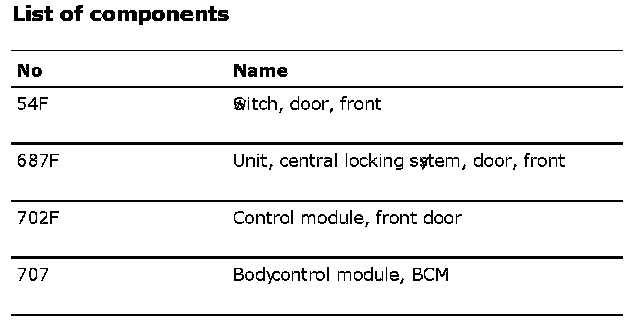

List Of Components:
