Crimp J131, Door Wiring Harness, Outer




Location:

4D/5D: Approx. 90 mm form front door connector
CV: Approx. 350 mm from the door connector

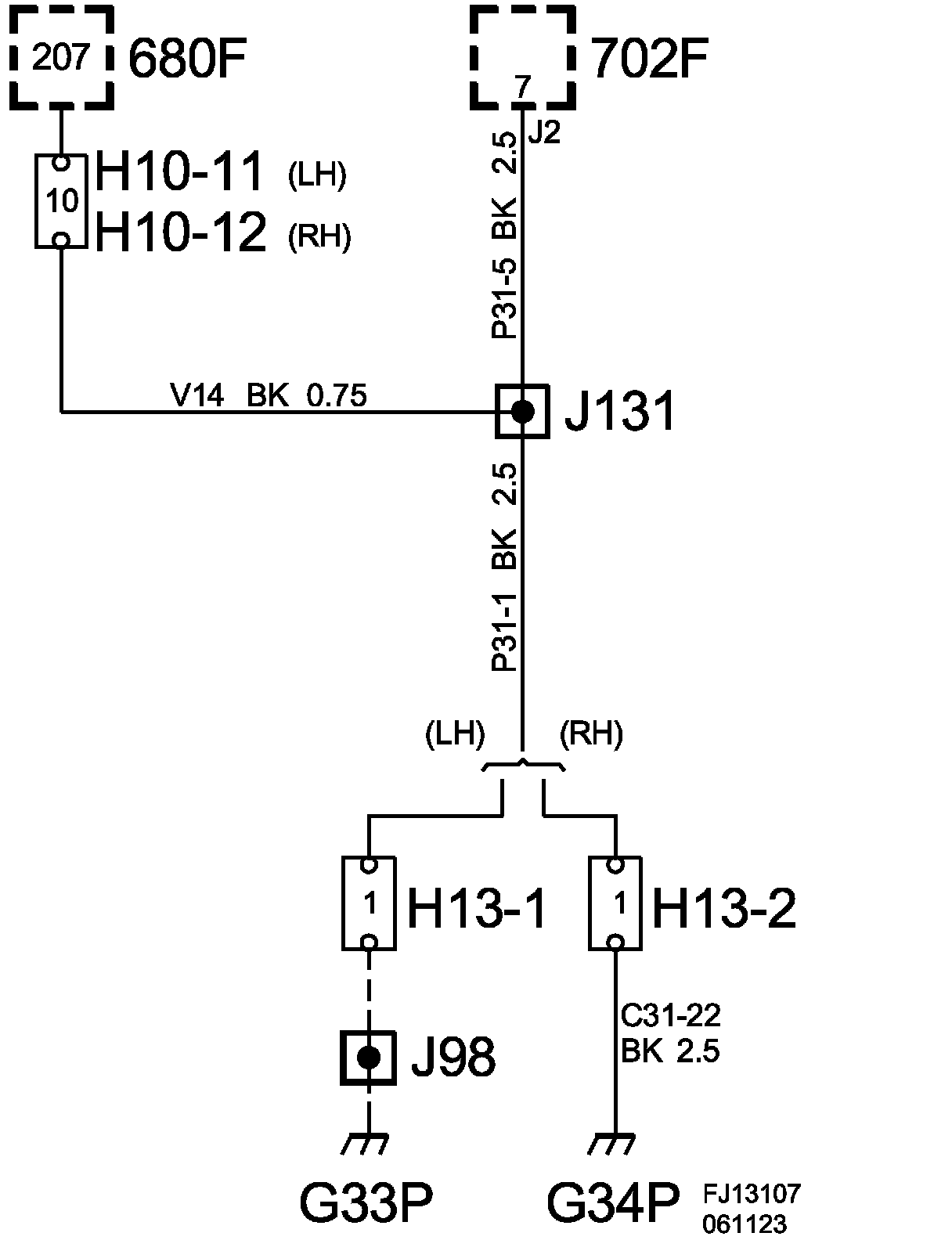

Crimp J131, Door Wiring Harness, Outer:

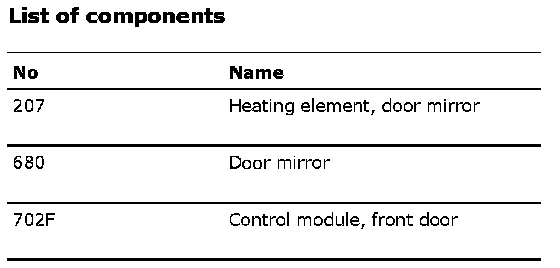

List Of Components:
