Crimp J129, Roof Harness



Location: Approx. 40 mm from the branching point to the LH make-up light towards the luggage compartment electrical centre.

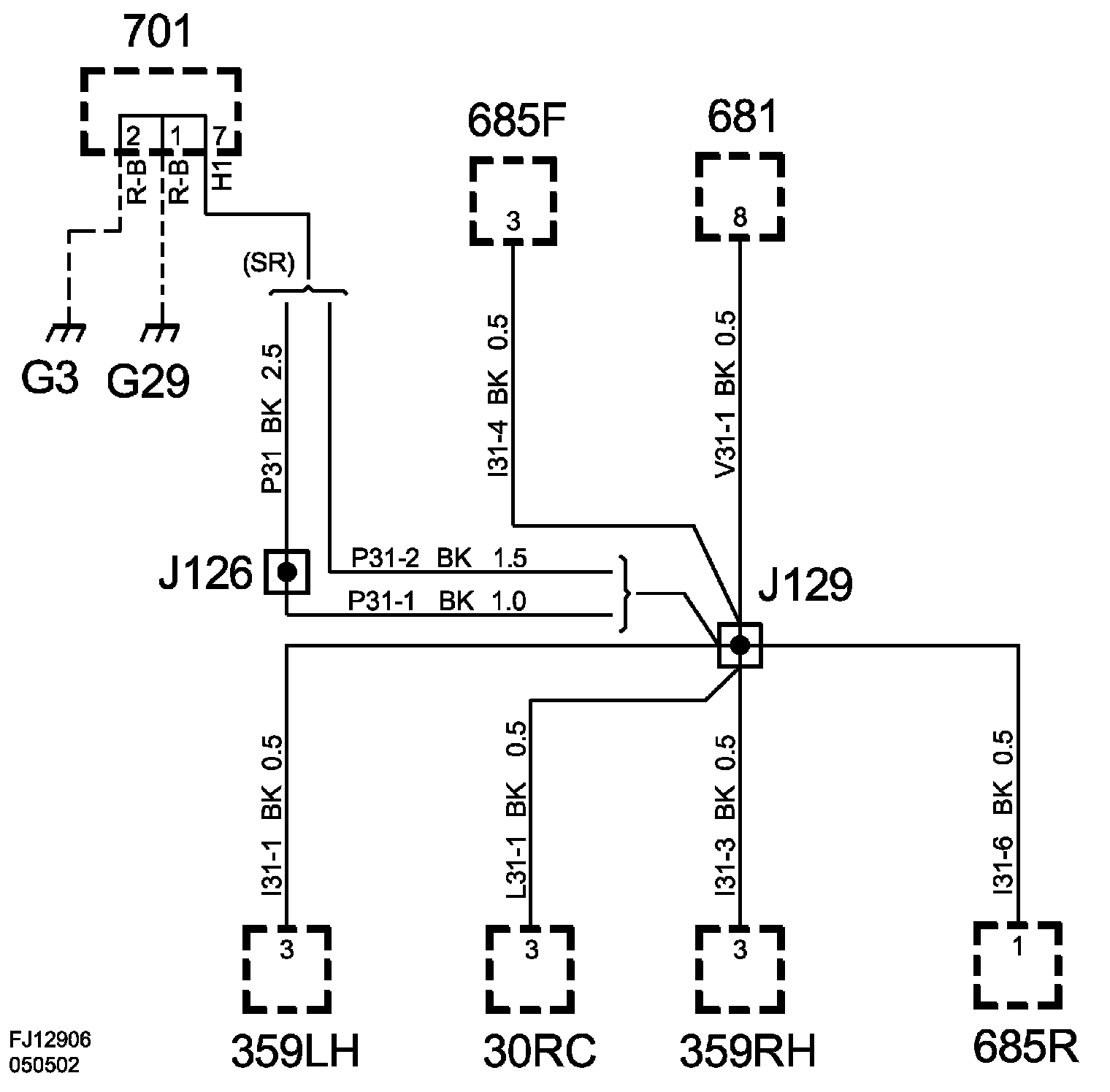

Crimp J129, Roof Harness:

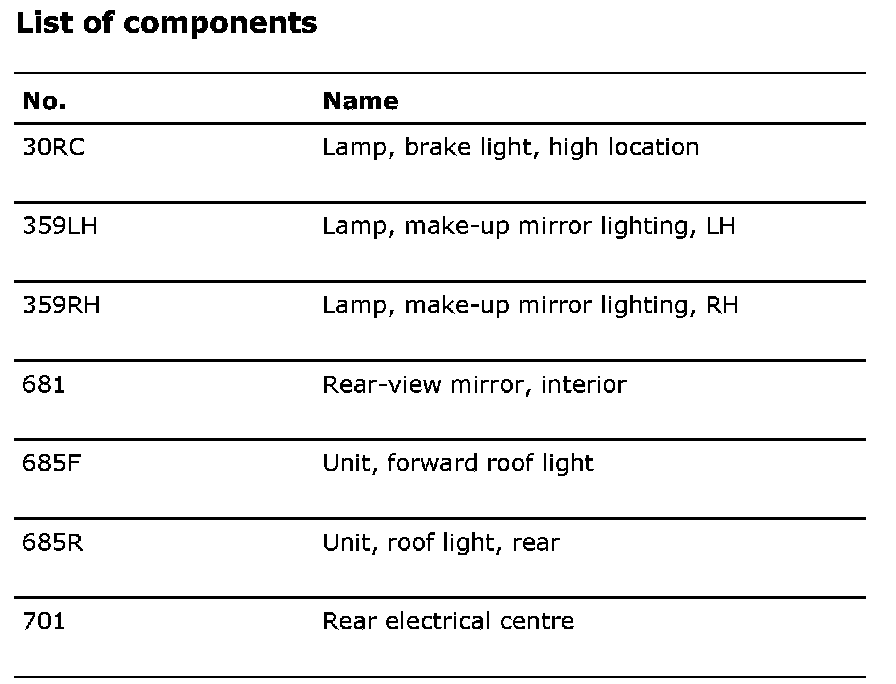

List of Components:
