Crimp J126, Roof Harness



Location: Approx. 130 mm from branching point of cabin lighting switches towards LH sun visor

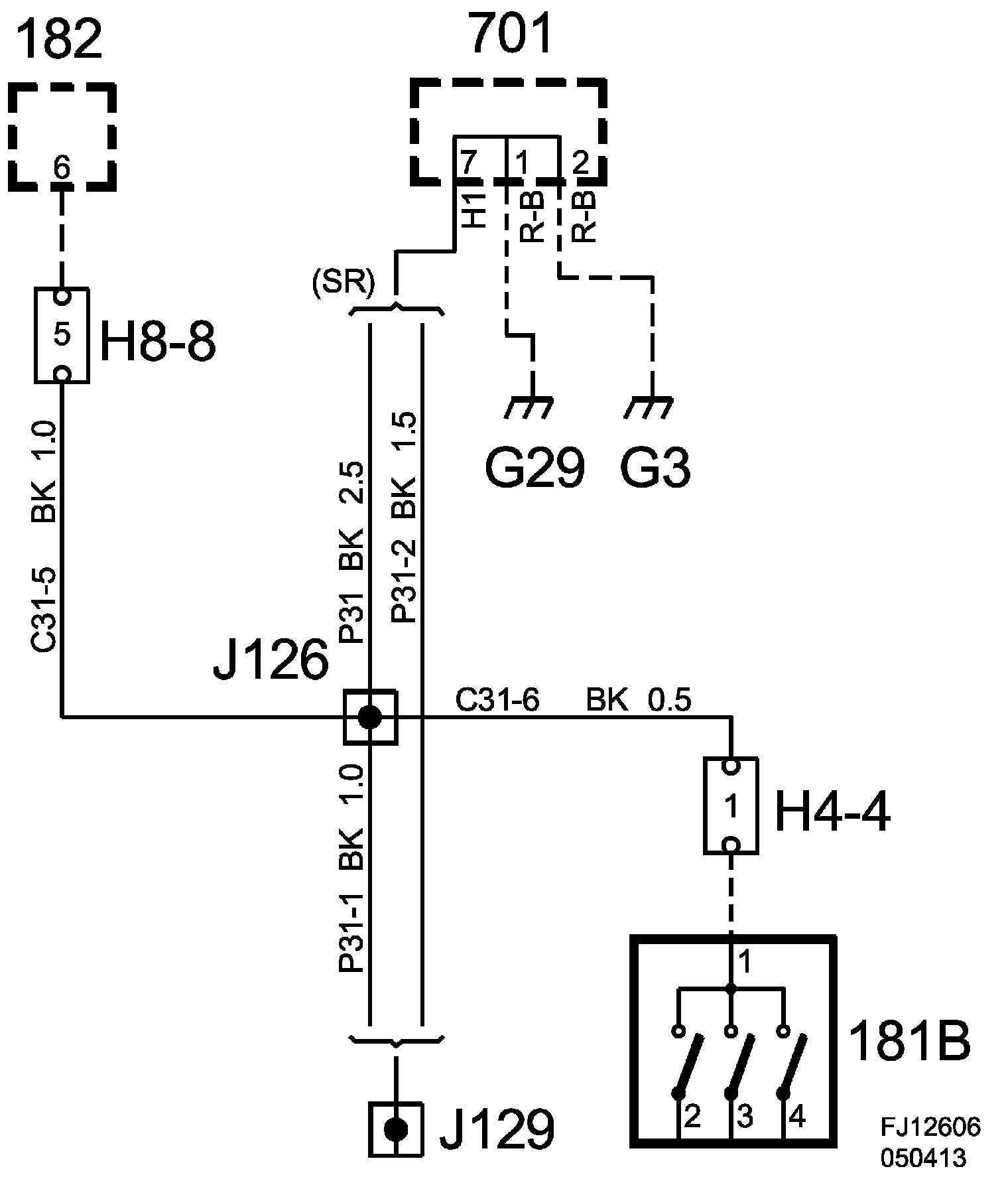

Crimp J126, Roof Harness:

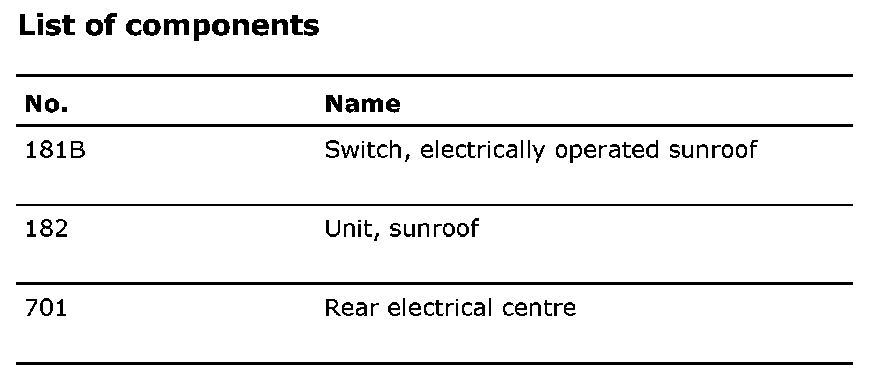

List of Components:
