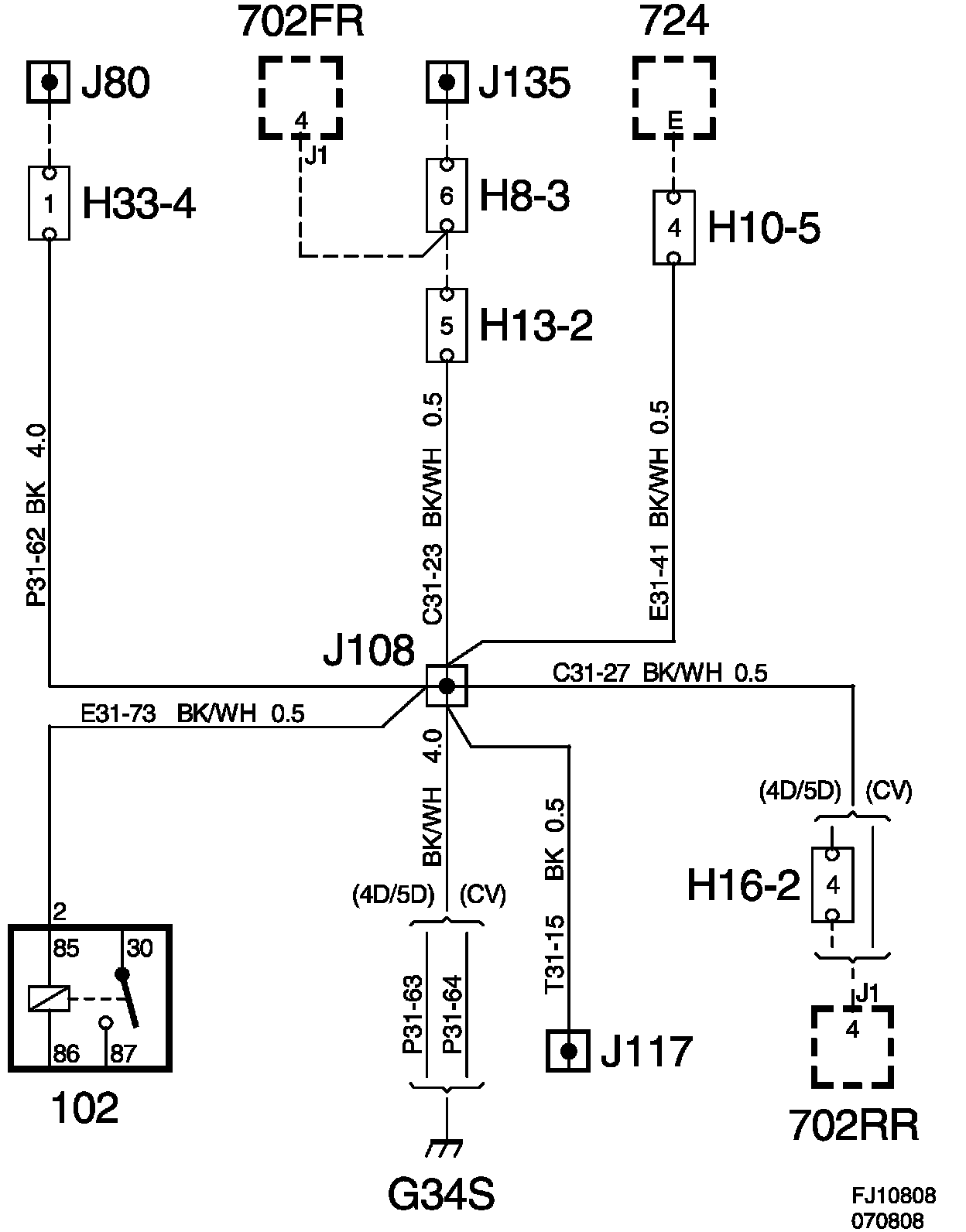

Crimp J108, Main Wiring Harness

Location:

4D: in branching point grounding point G34
5D: Approx. 50 mm from branching point to grounding point G34P/S towards front right door
CV: Approx. 80 mm from branching point to grounding point G34P/S towards connector H33-4
