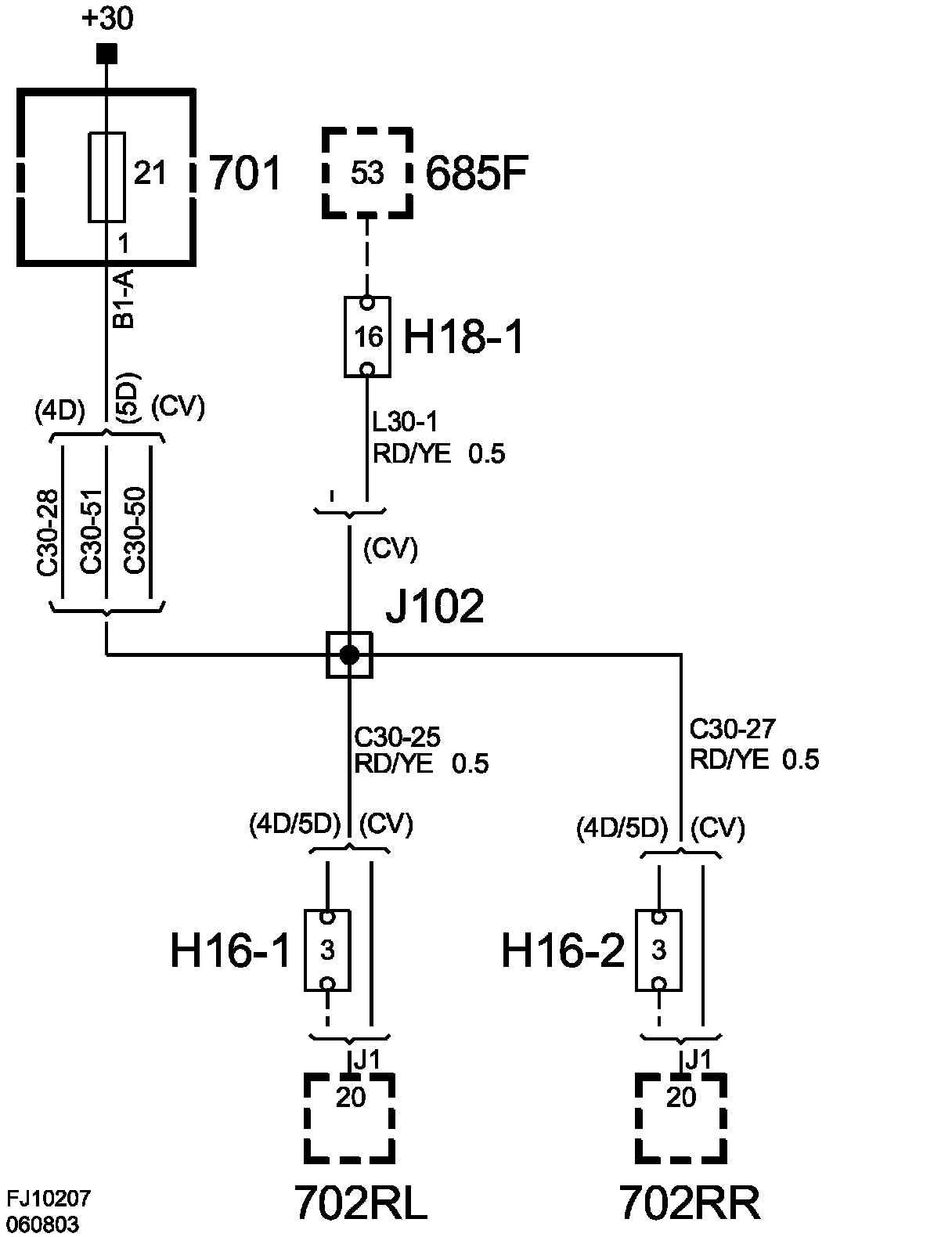

Crimp J102, Main Wiring Harness

Location:

4D: In branching point main wiring harness connector to REC
5D: Approx. 280 mm from branching point seat belt tensioner, left-hand B-pillar, towards rear seat
CV: Approx. 280 mm from branching of left window lift towards front amplifier
