Crimp Connection (all)
Crimp Connection (all)
Crimp Connections

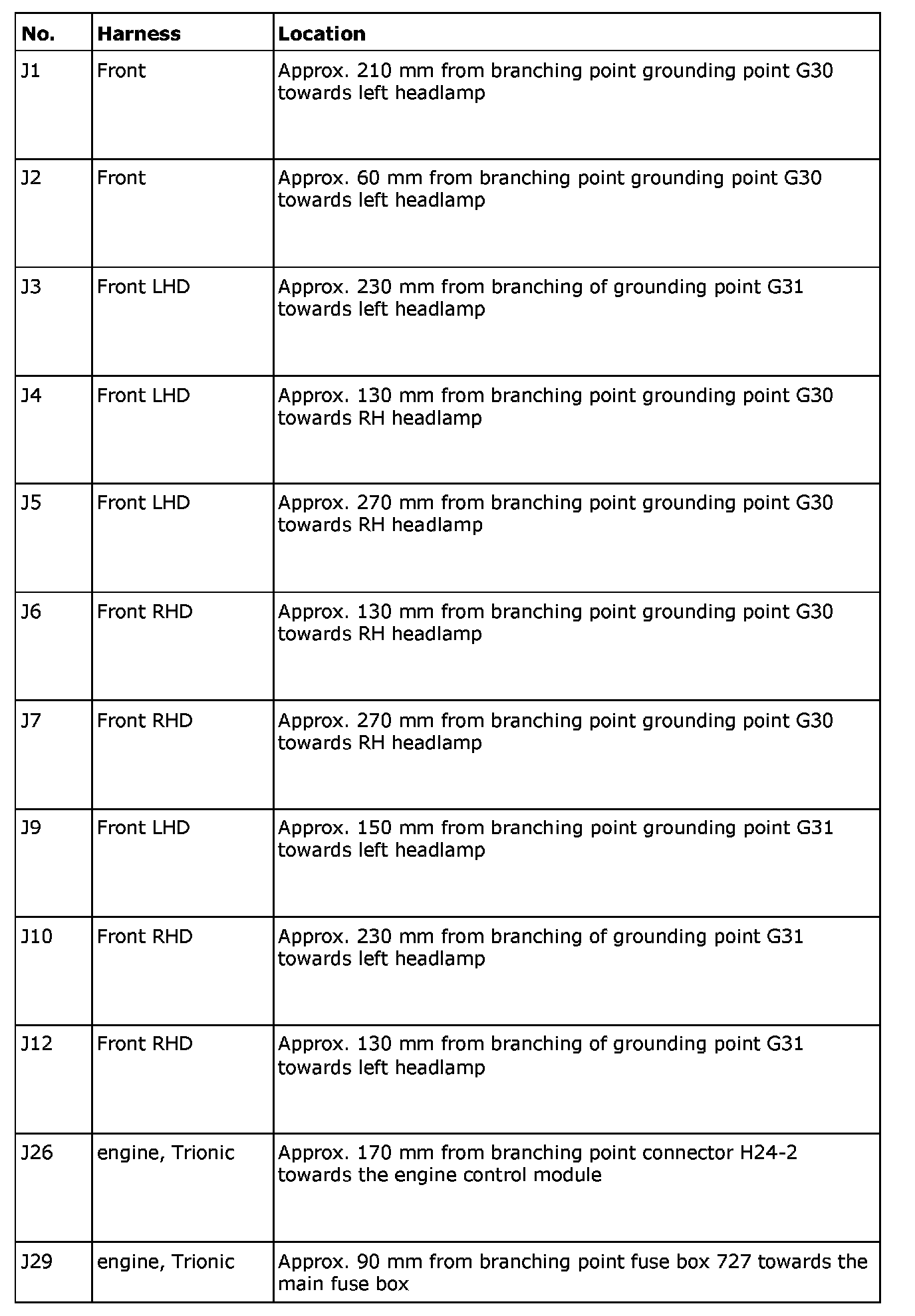

J1 To J29:

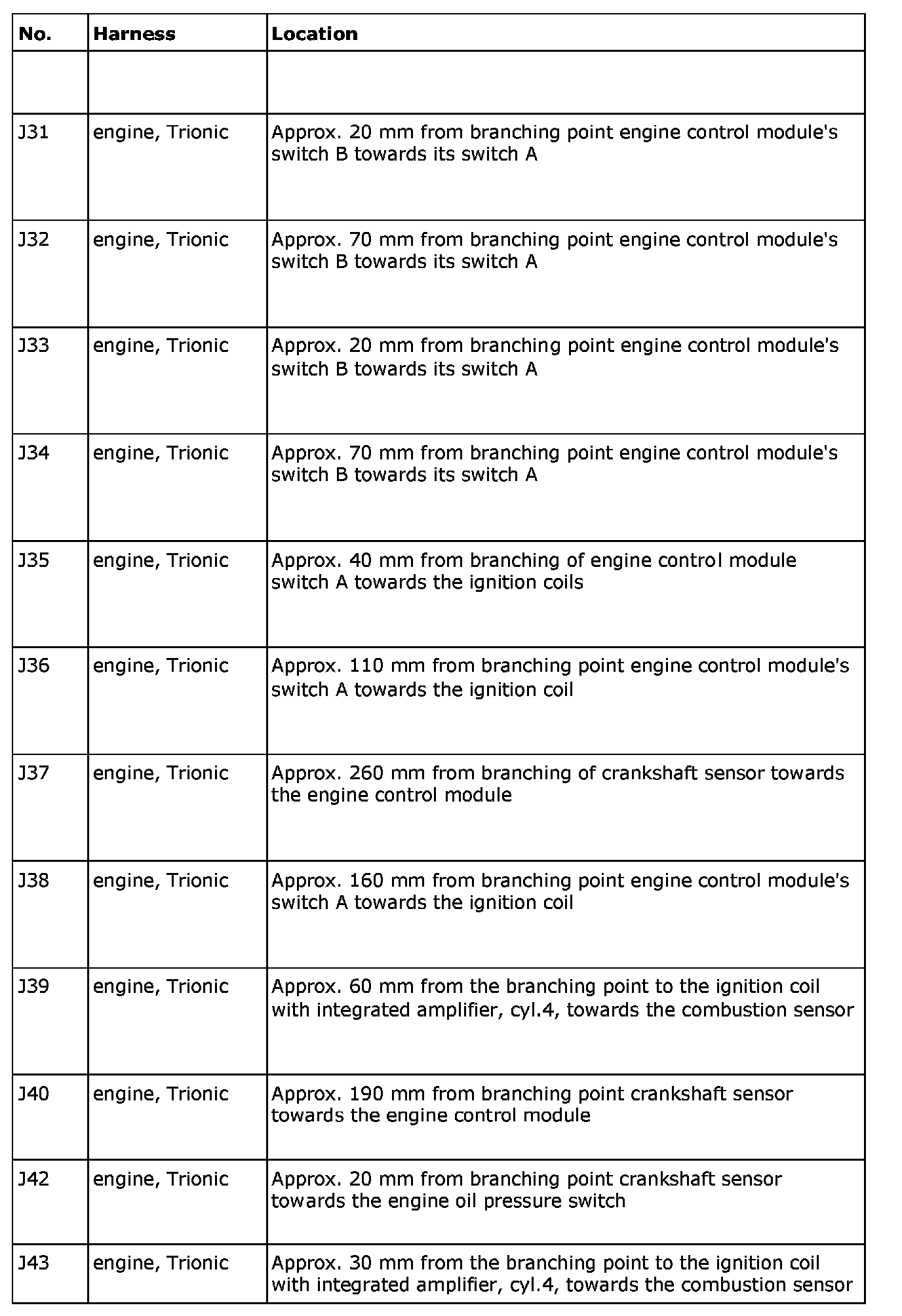

J31 To J43:

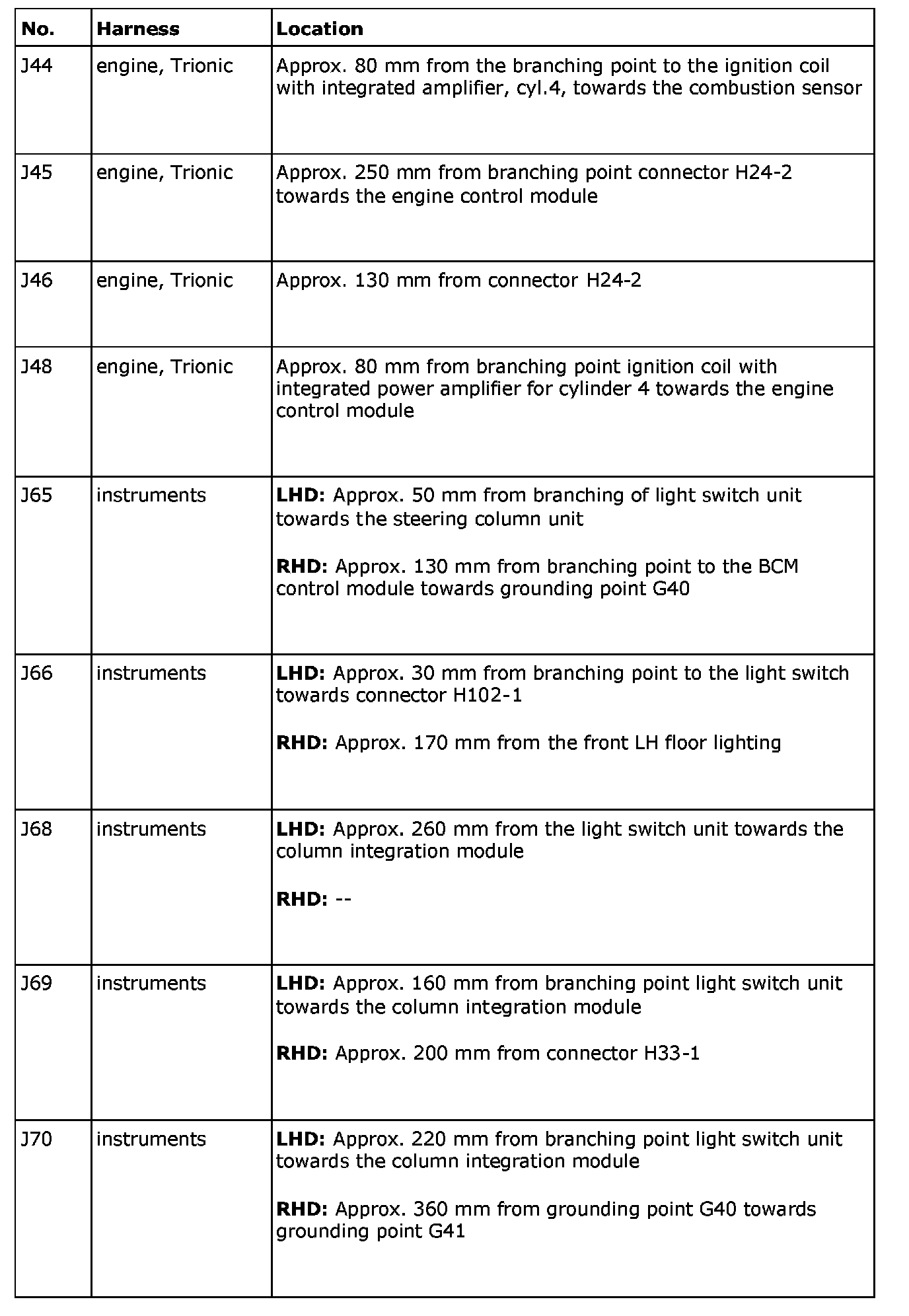

J44 To J70:

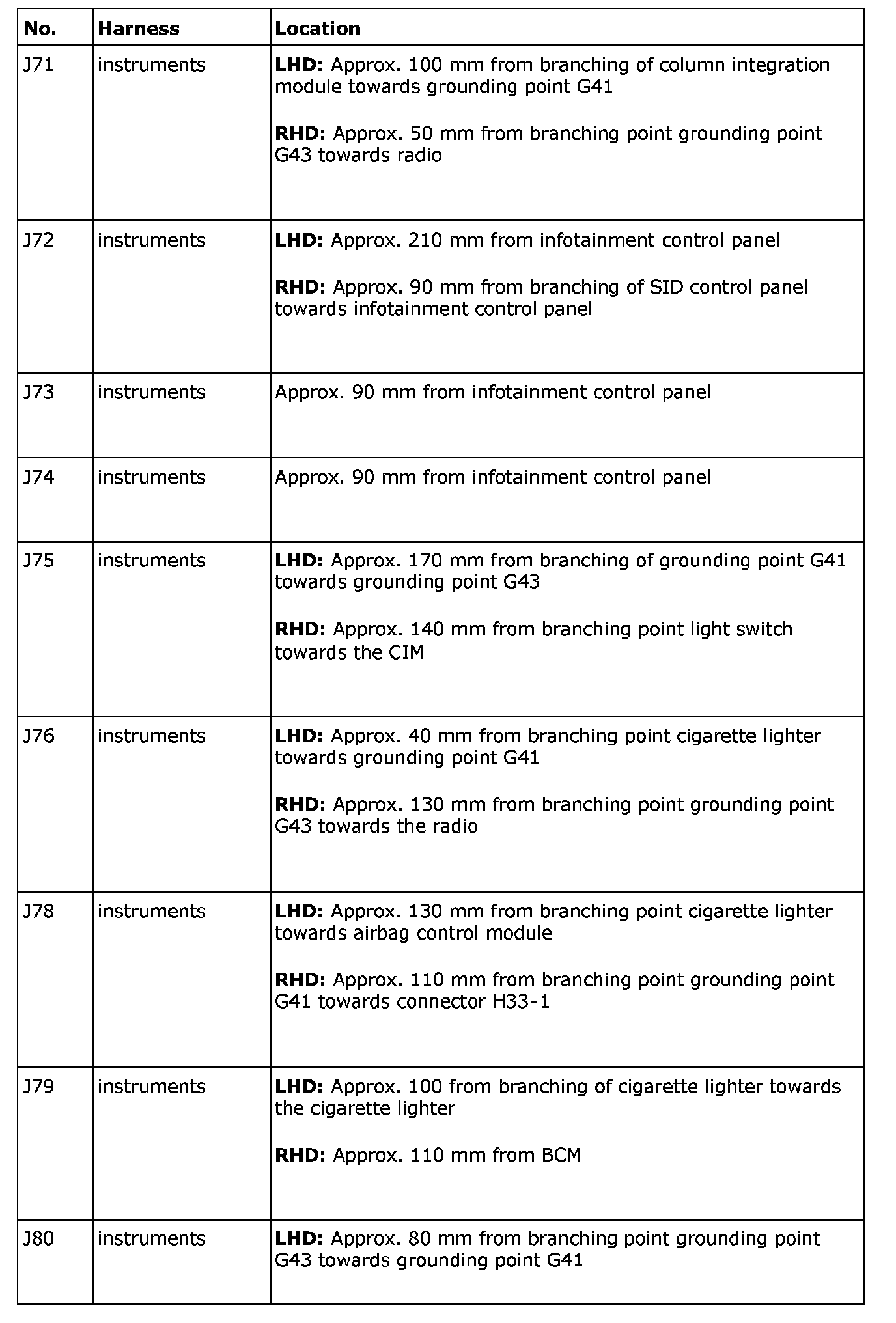

J71 To J80:

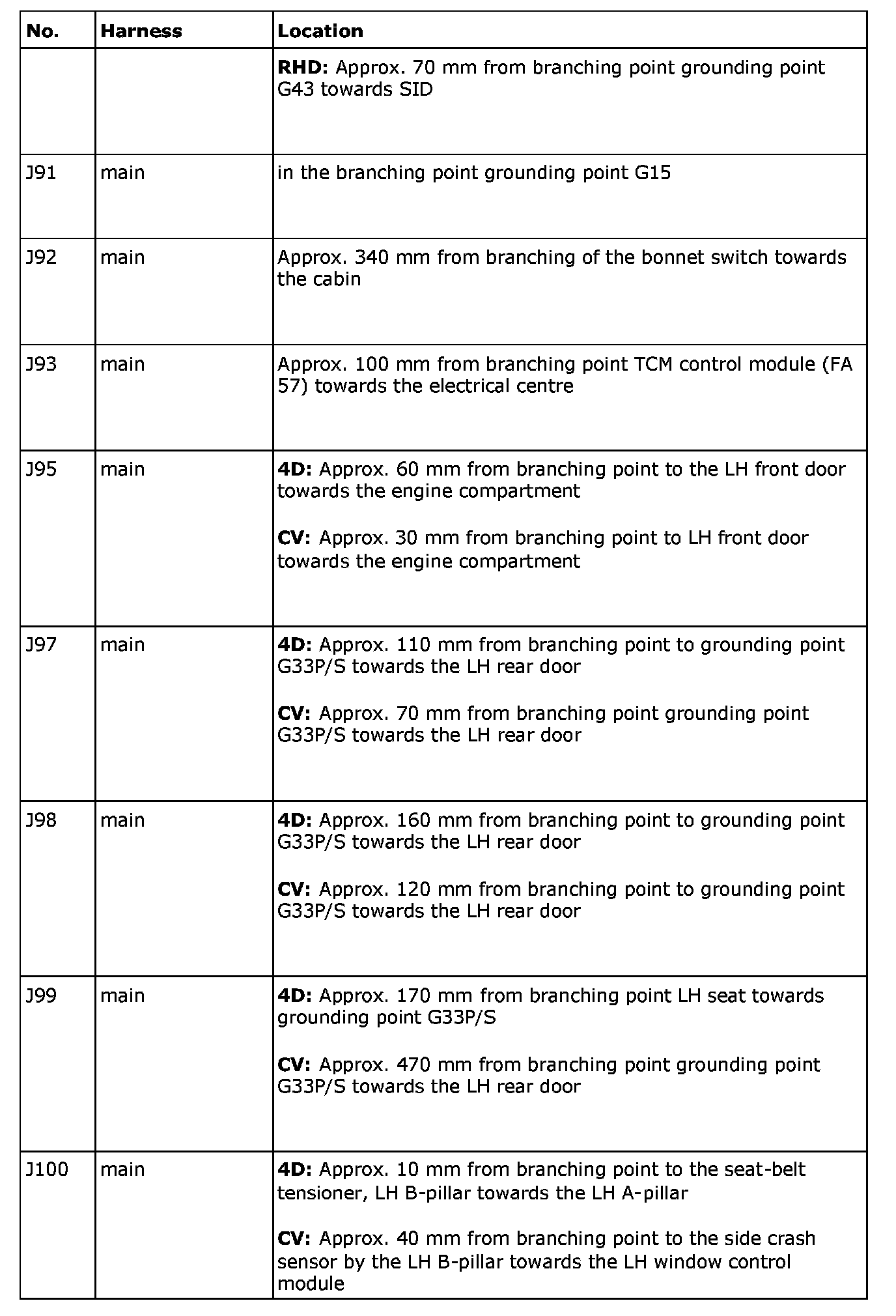

J91 To J100:

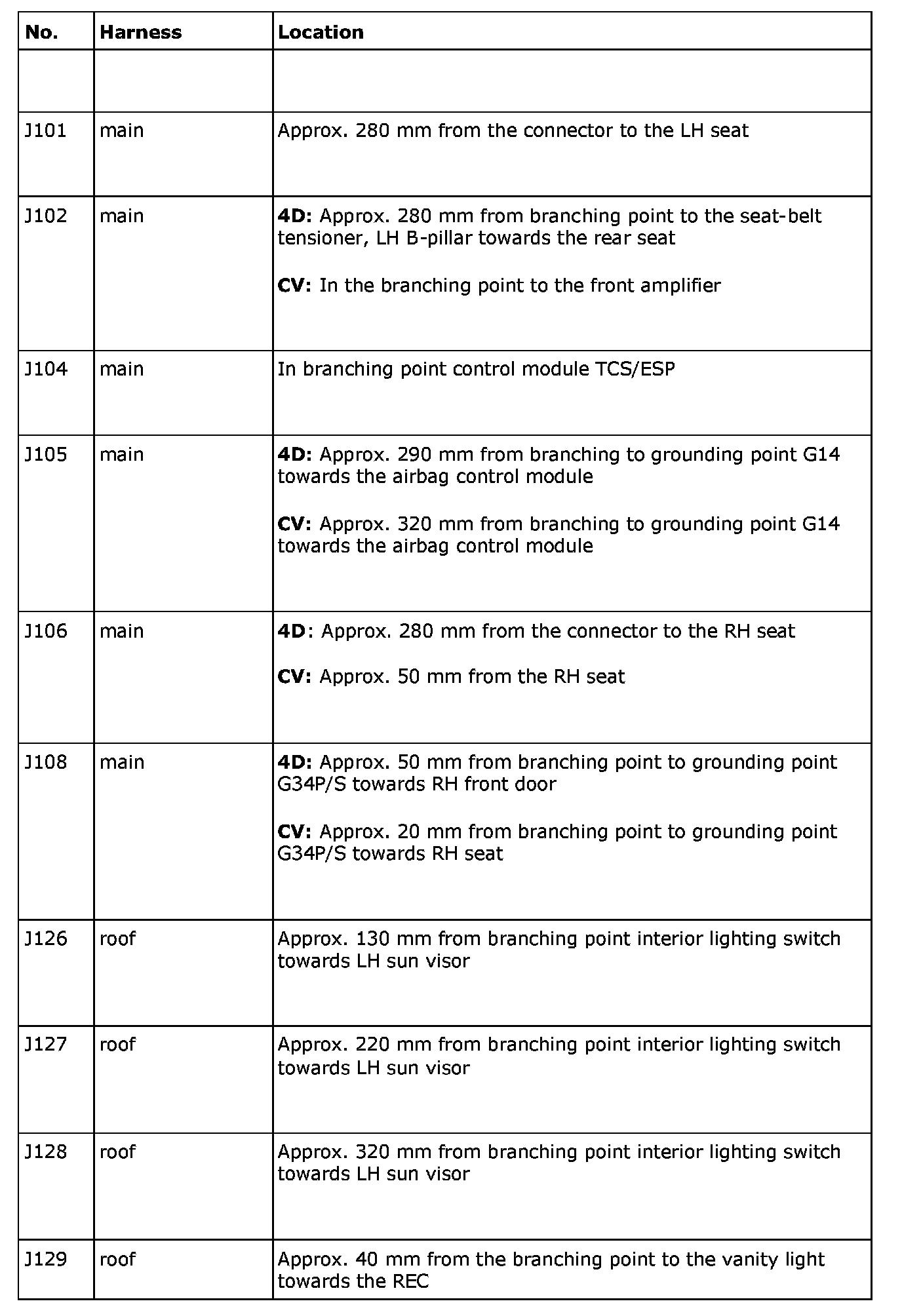

J101 To J129:

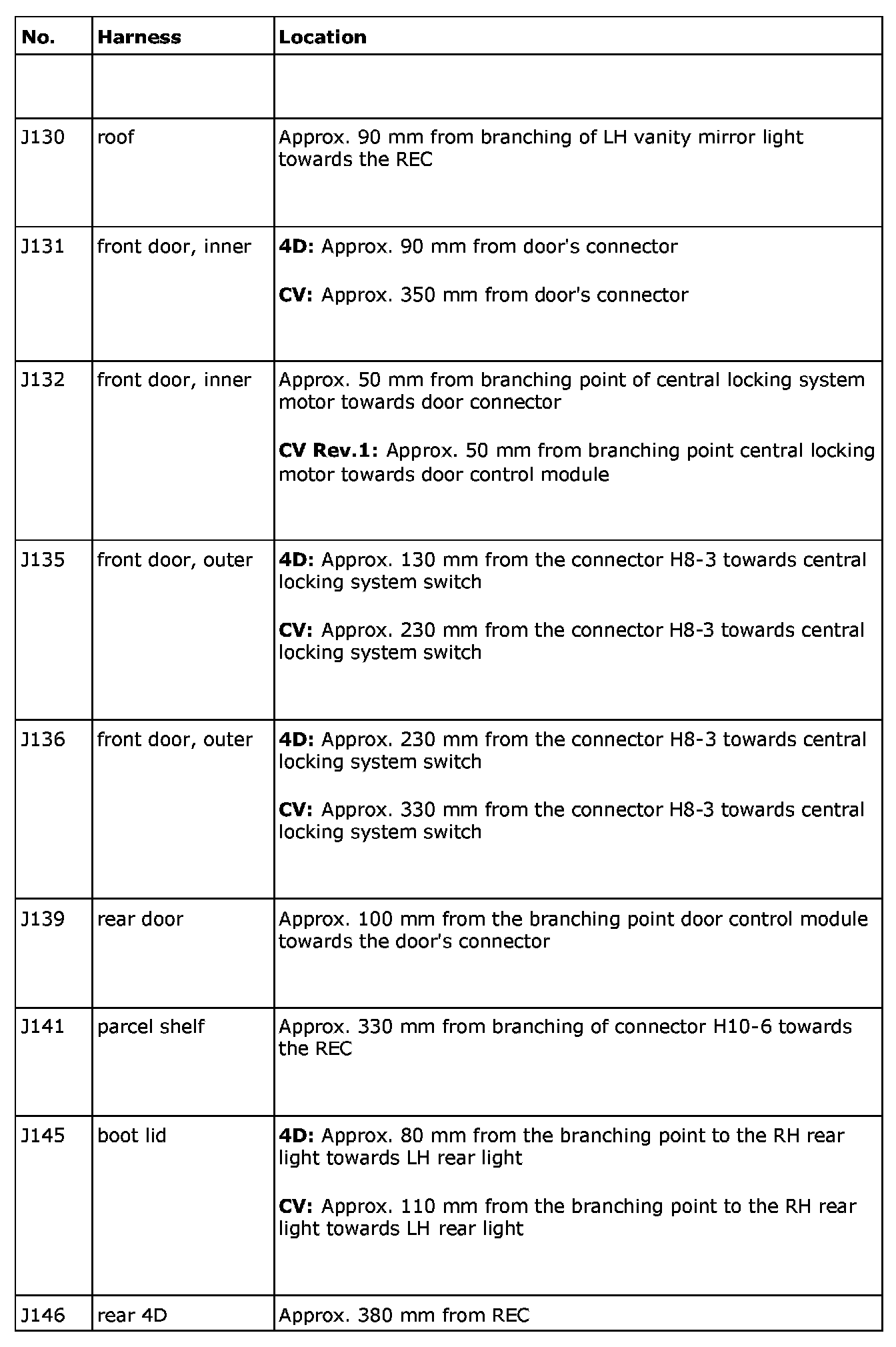

J130 To J146:

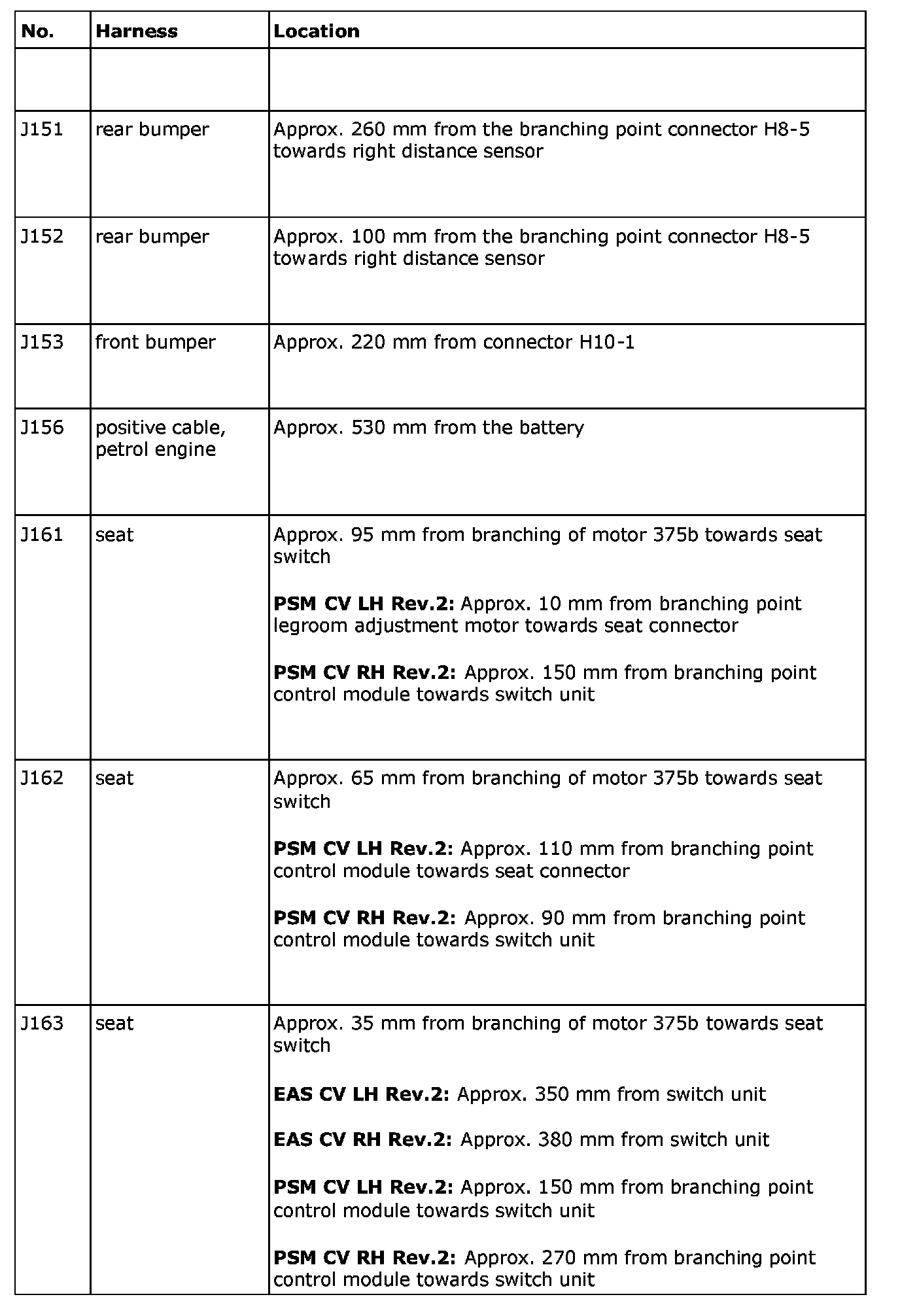

J151 To J163:

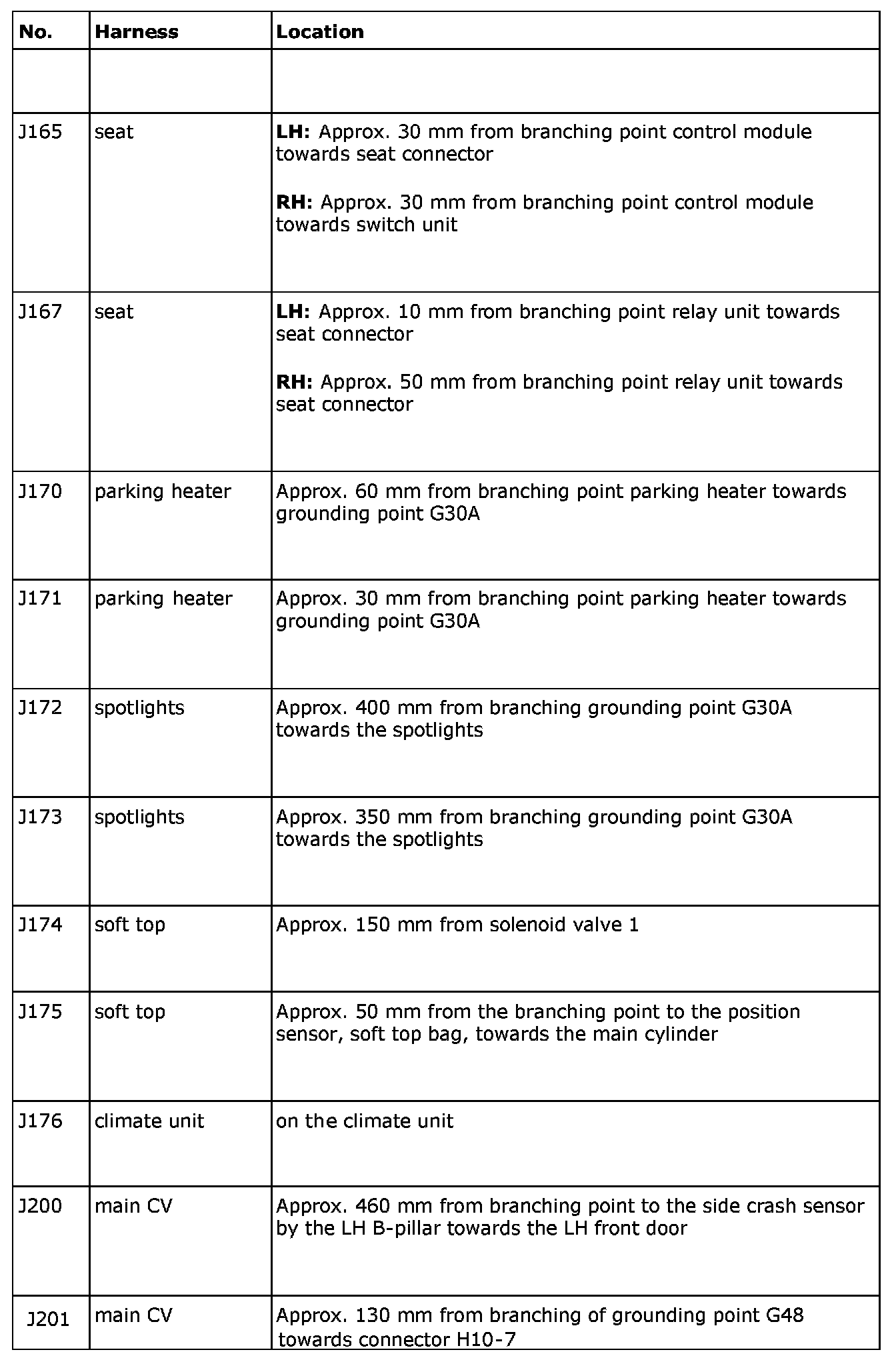

J165 To J201:

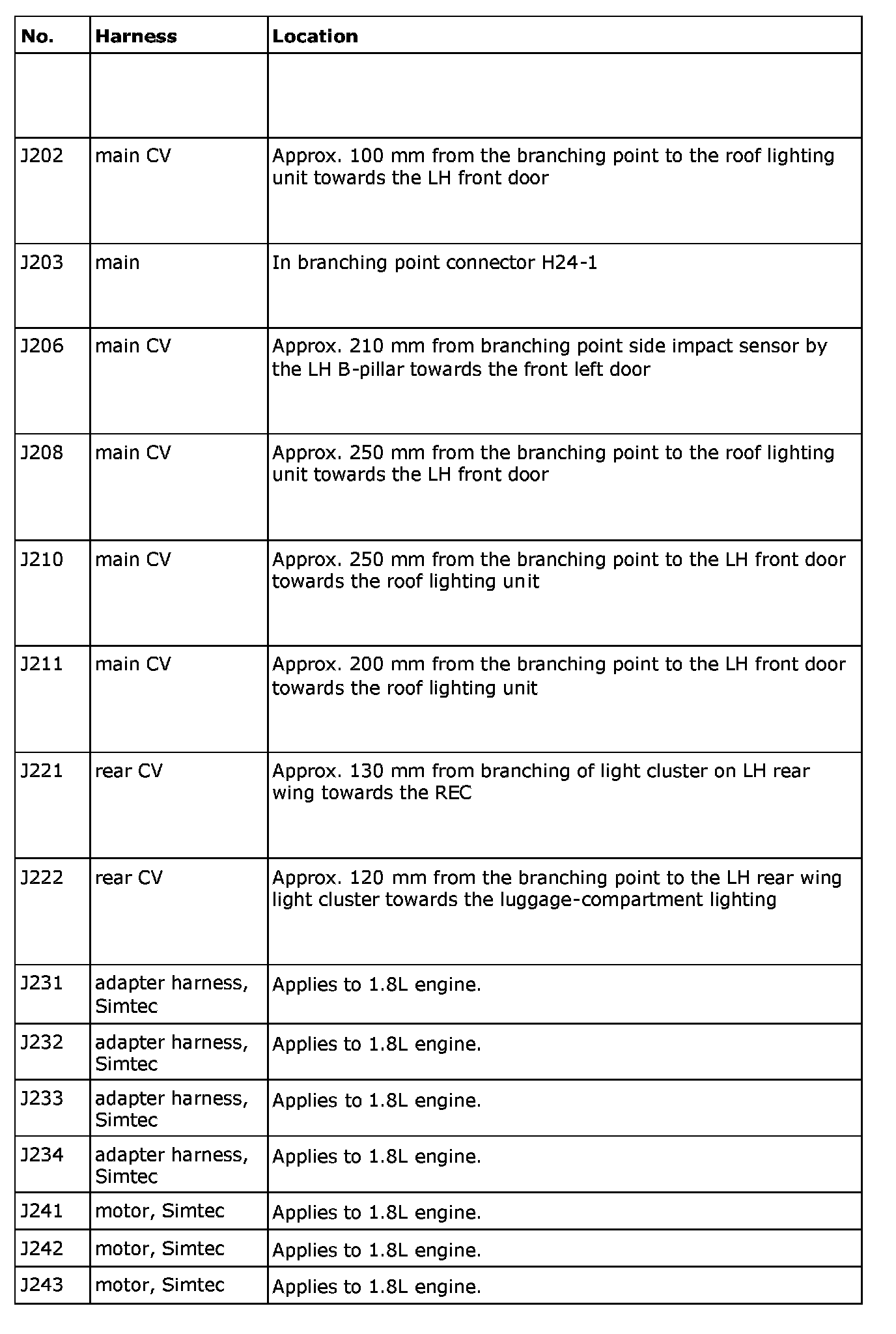

J202 To J243:

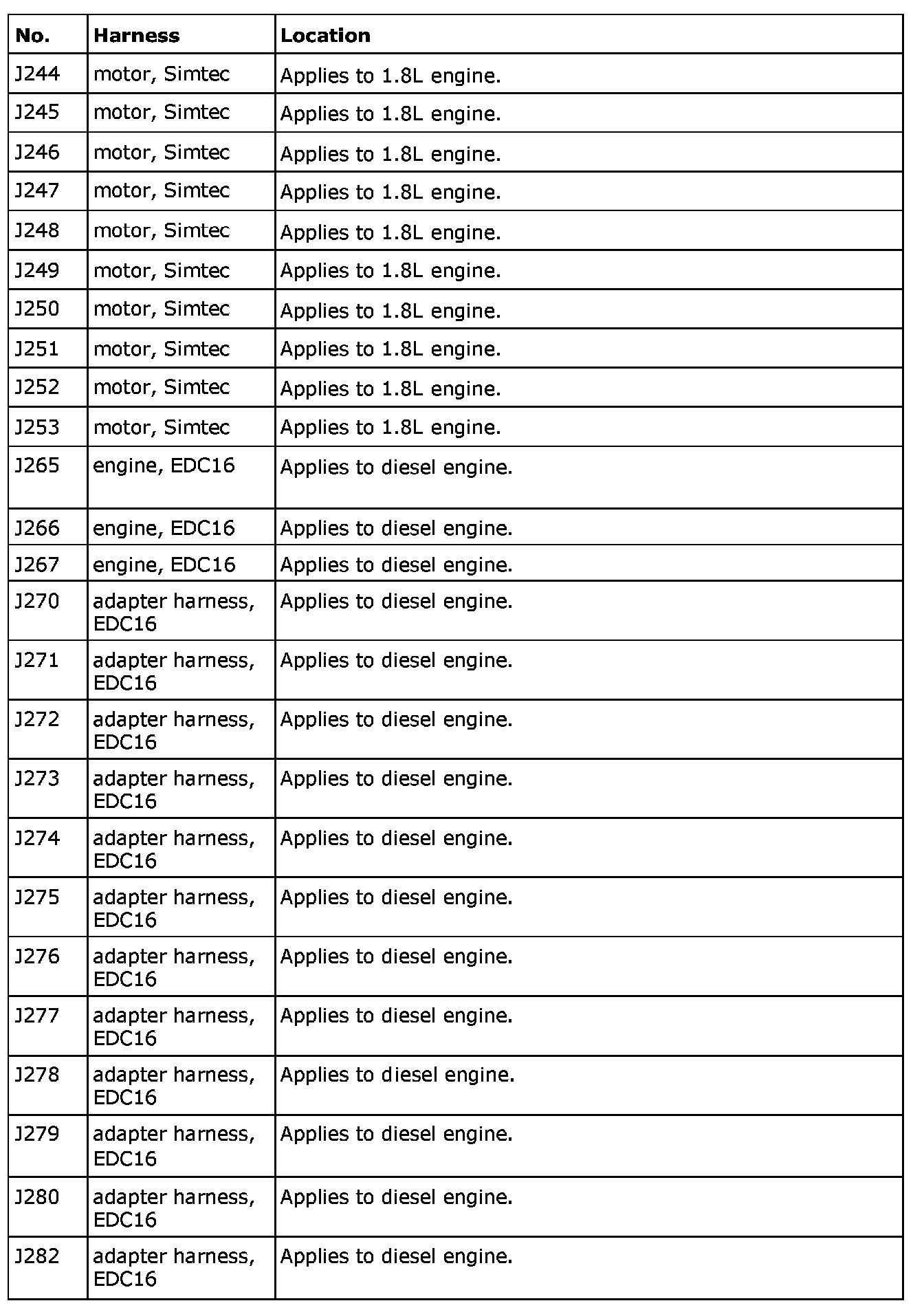

J242 To J282:
