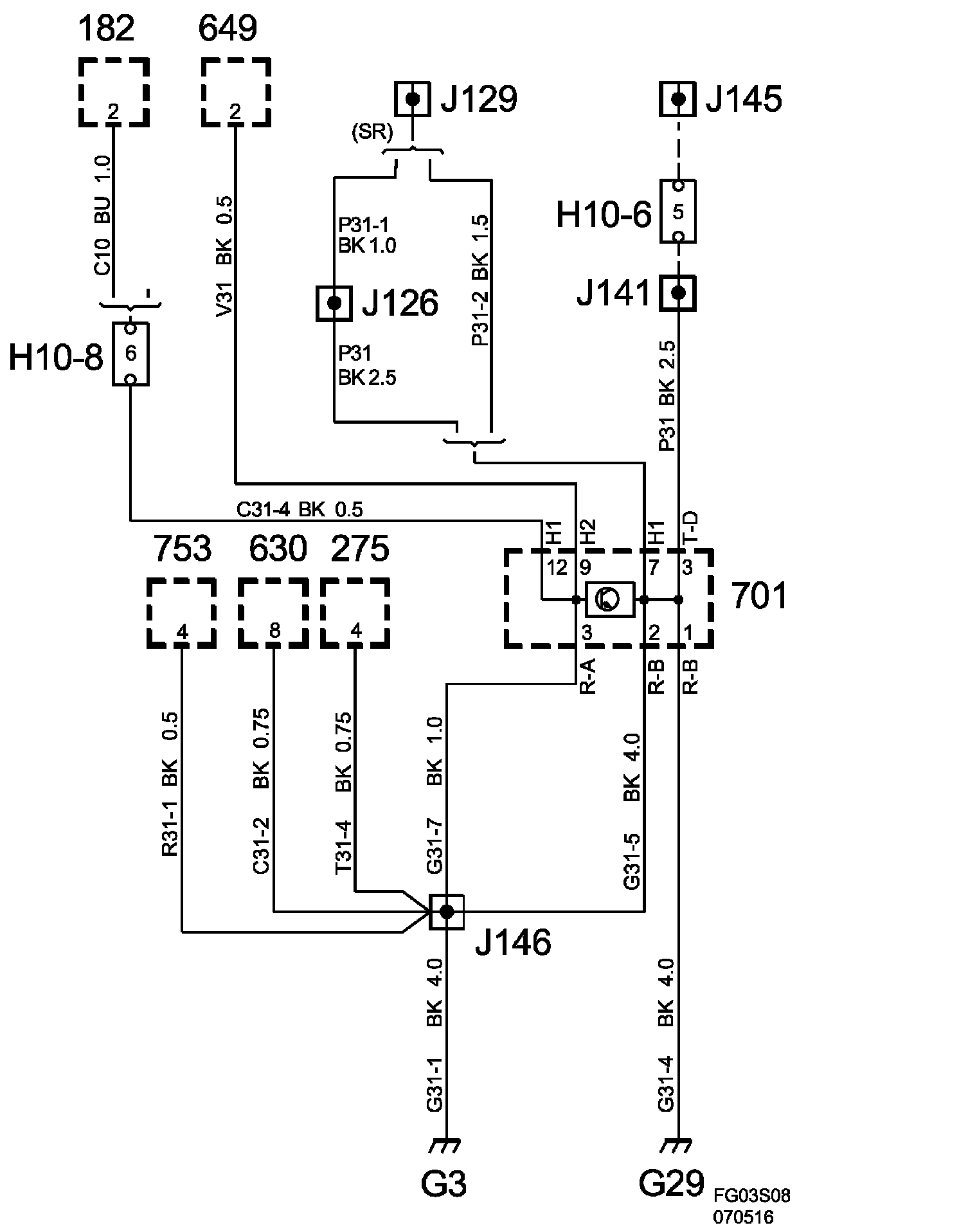

Grounding Point G3, 4D

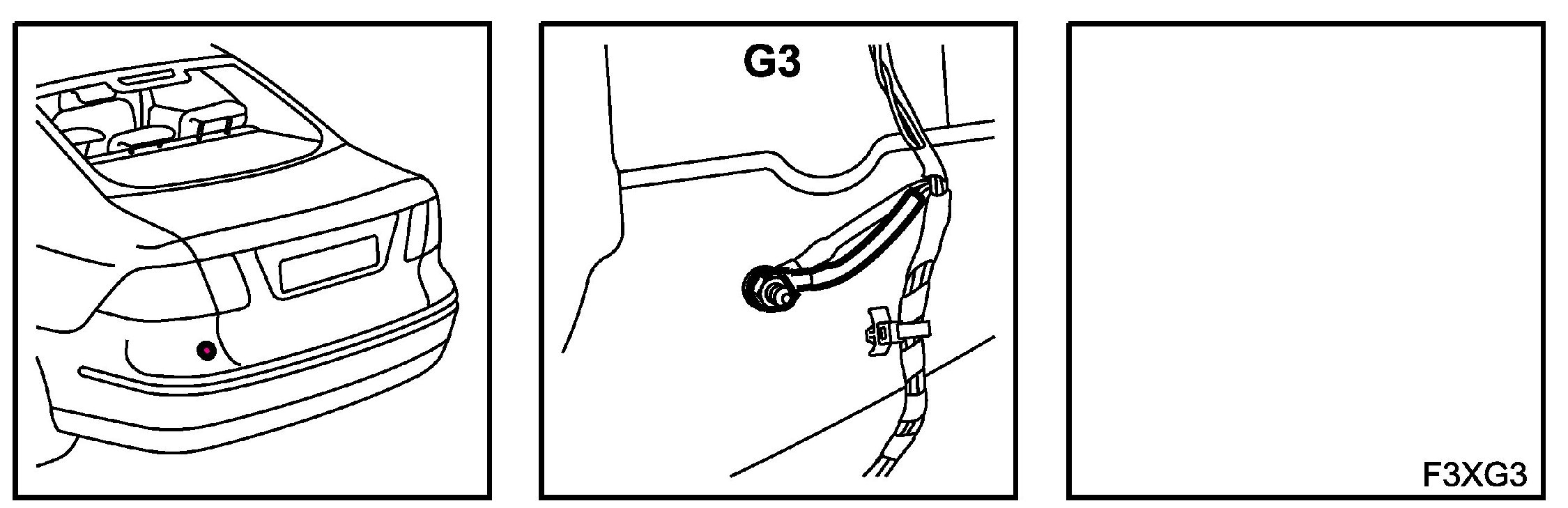

Location: In boot below left light cluster
The grounding point is connected with grounding point G29 via the boot electrical centre 701.
Grounding Point G3, 4D:

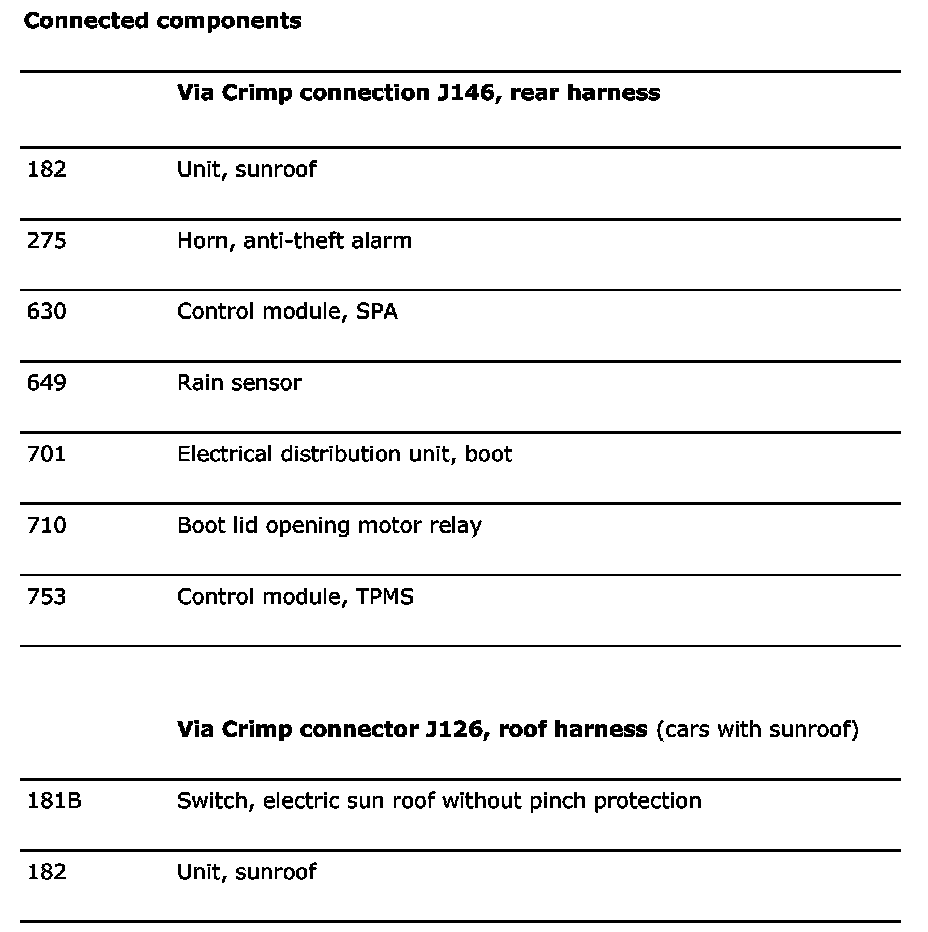

Connected Components (Part 1):
Connected Components (Part 2):
Location: In boot below left light cluster
The grounding point is connected with grounding point G29 via the boot electrical centre 701.
