9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Lock Indication, Backrest, Rear Seat 4D
Lock Indication, Backrest, Rear Seat 4D
Lock Indication, Backrest, Rear Seat 4D

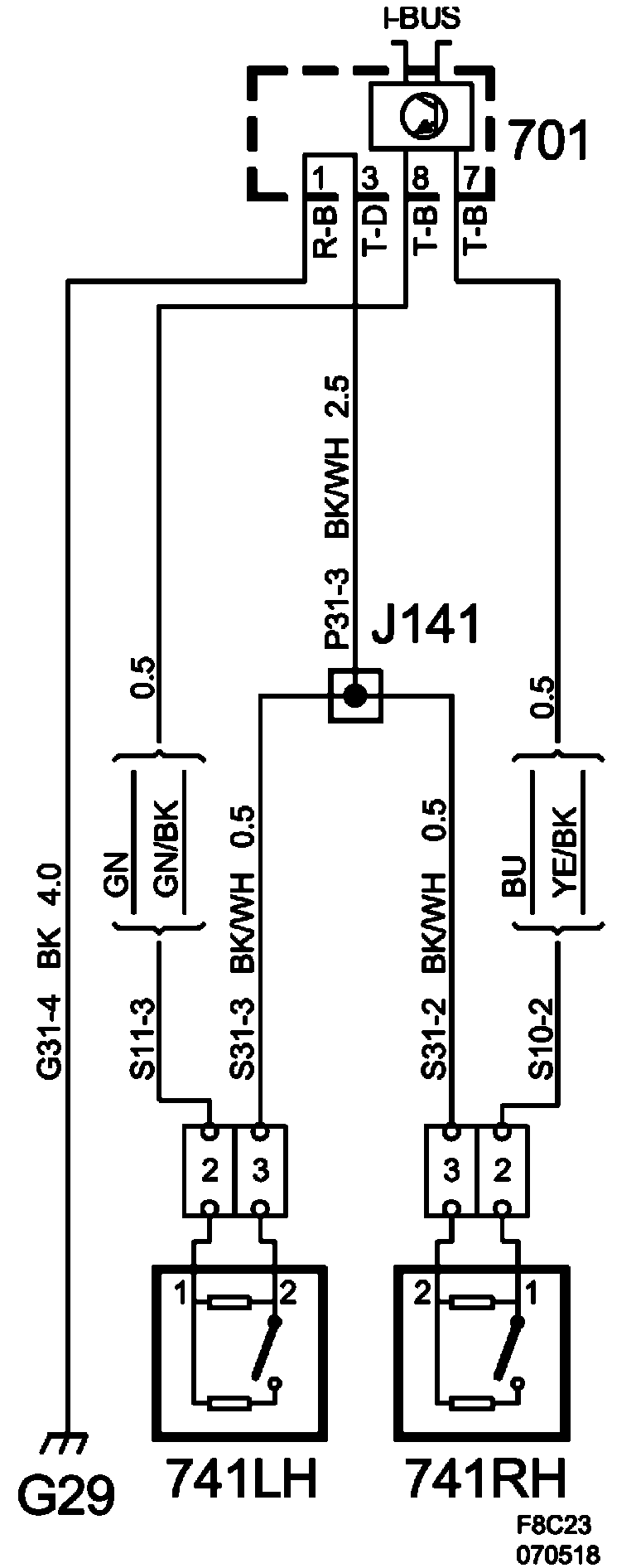

Lock Indication, Backrest, Rear Seat 4D:

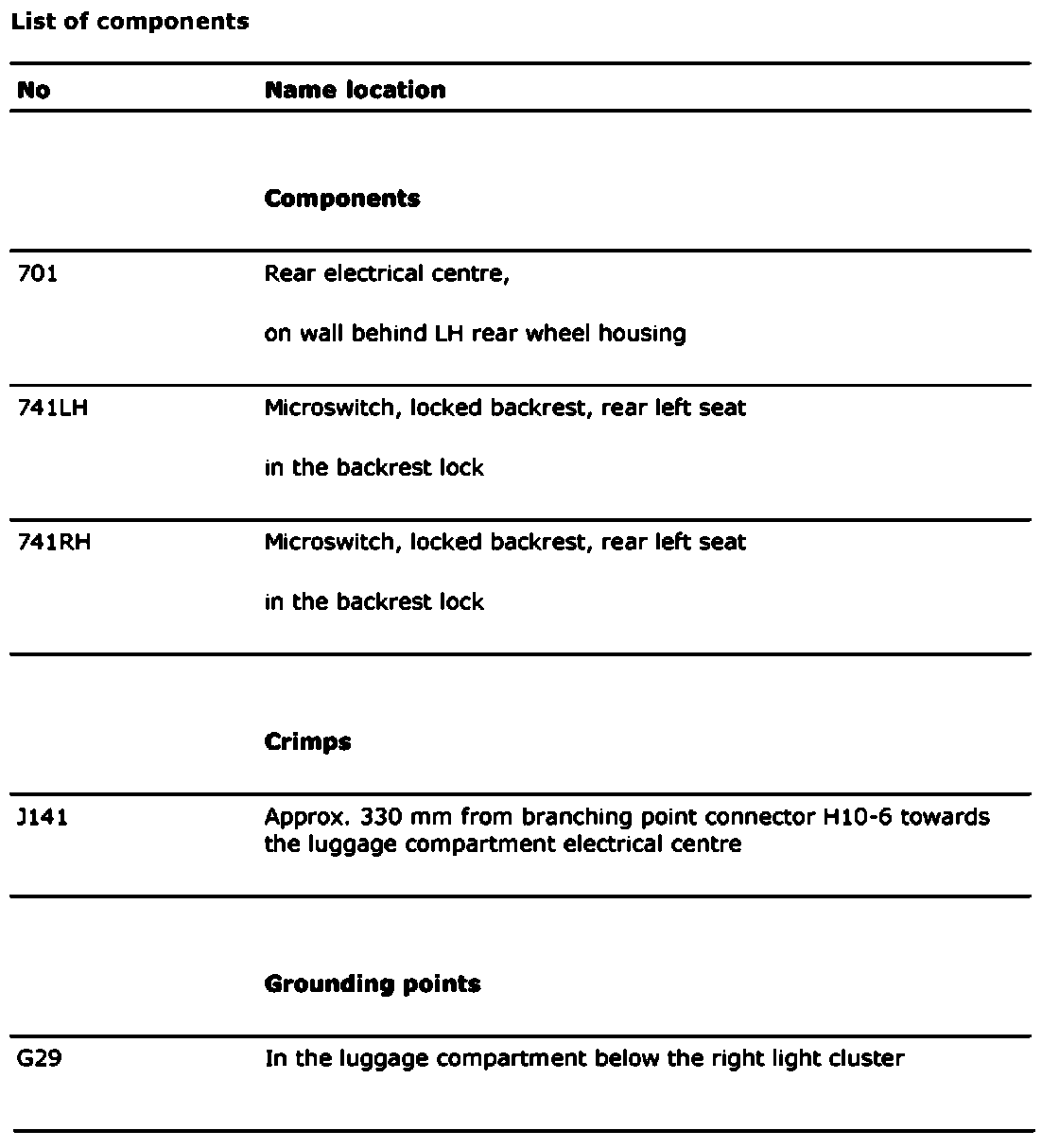

List Of Components:
