Electrically Adjustable Seat CV RH



Electrically Adjustable Seat CV RH

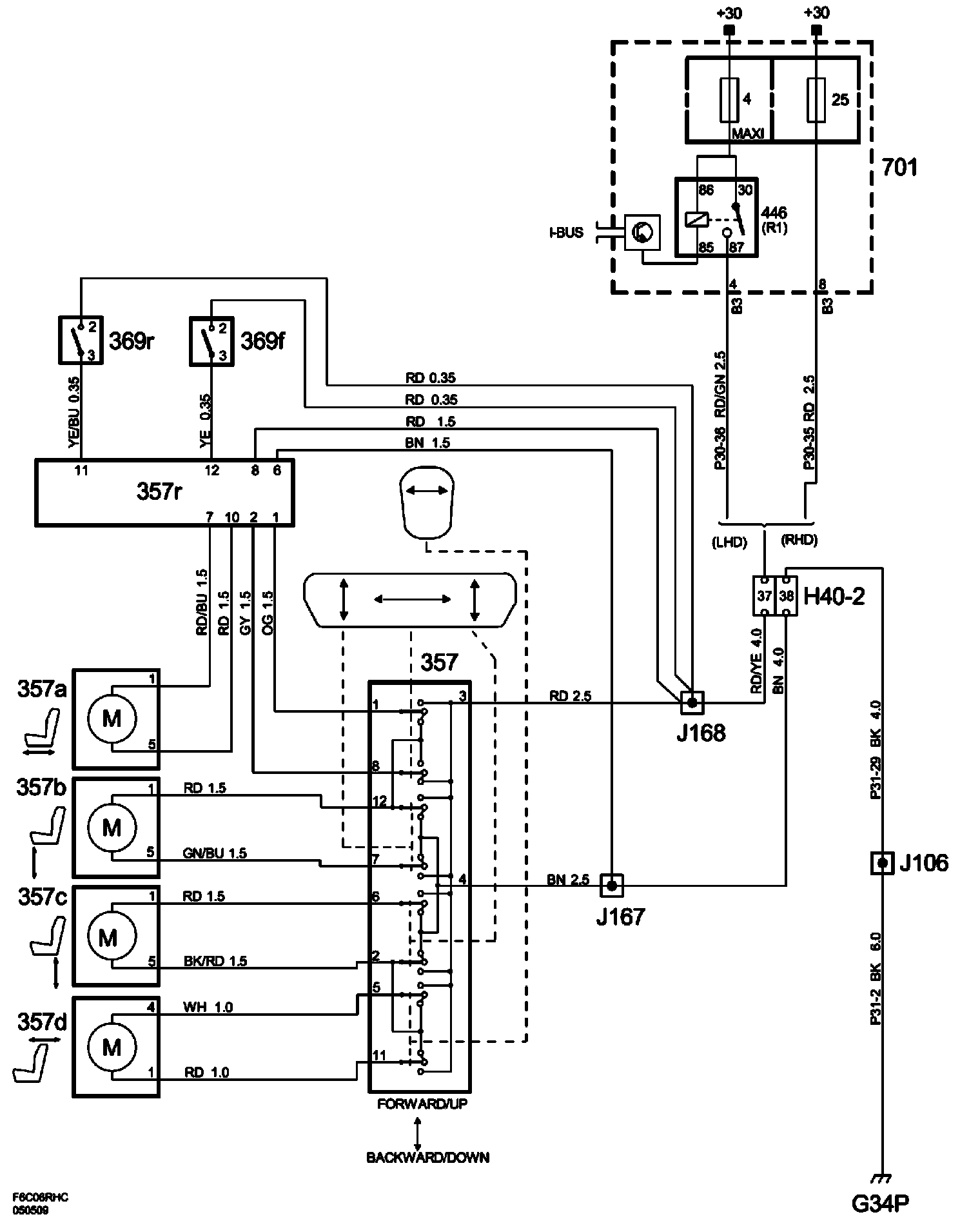

Electrically Adjustable Seat CV RH:

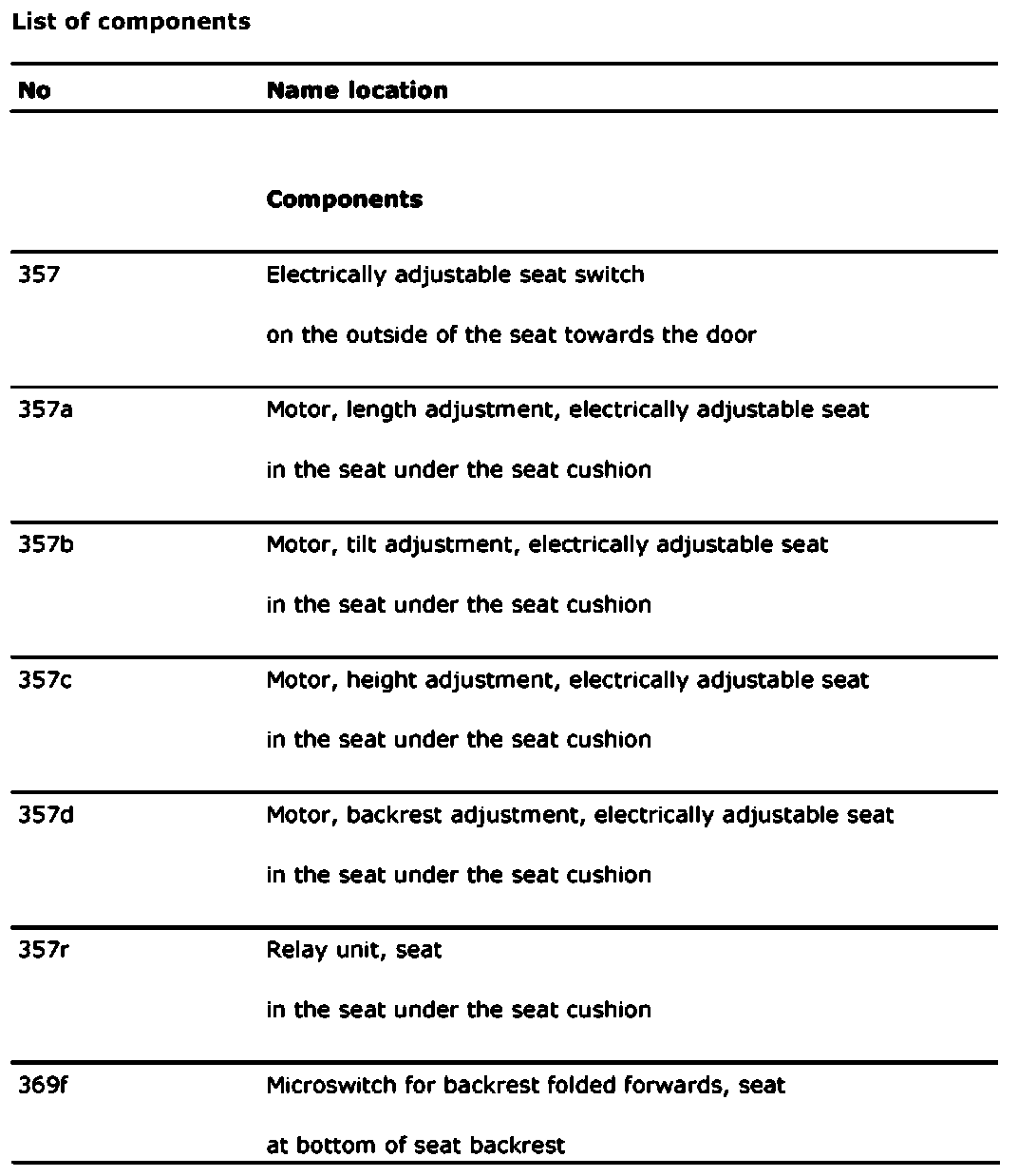

List Of Components (Part 1):




List Of Components (Part 2):
