Trionic T8 (Part 4/4)

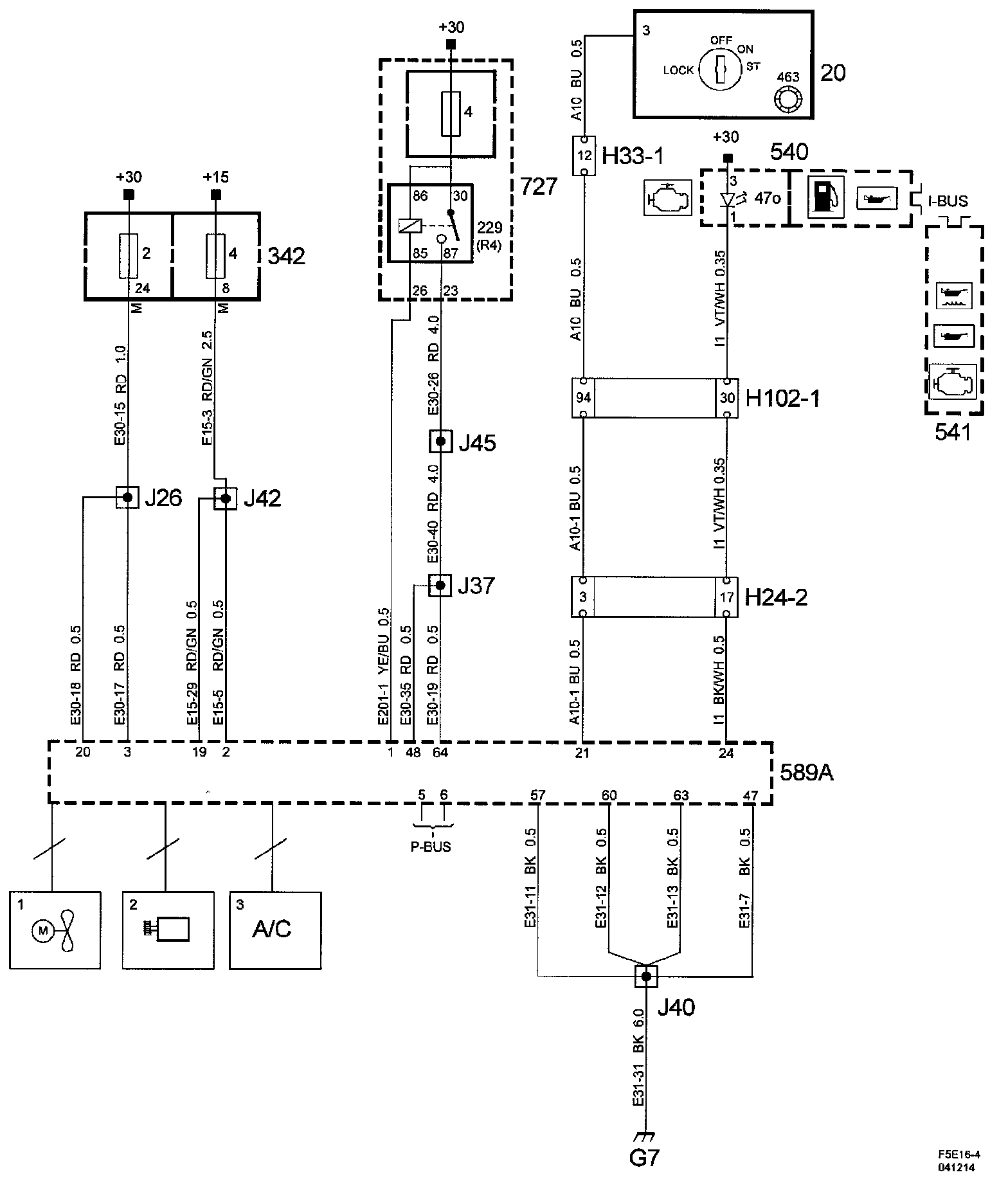

Engine Management System Trionic T8 (Part 4/4):

T8 also controls the following systems:
1. Radiator fan system, L850, one fan
Radiator fan system, L850, two fans
2. Starting system, automatic transmission
Starting system, manual gearbox
3. Air conditioning, A/C

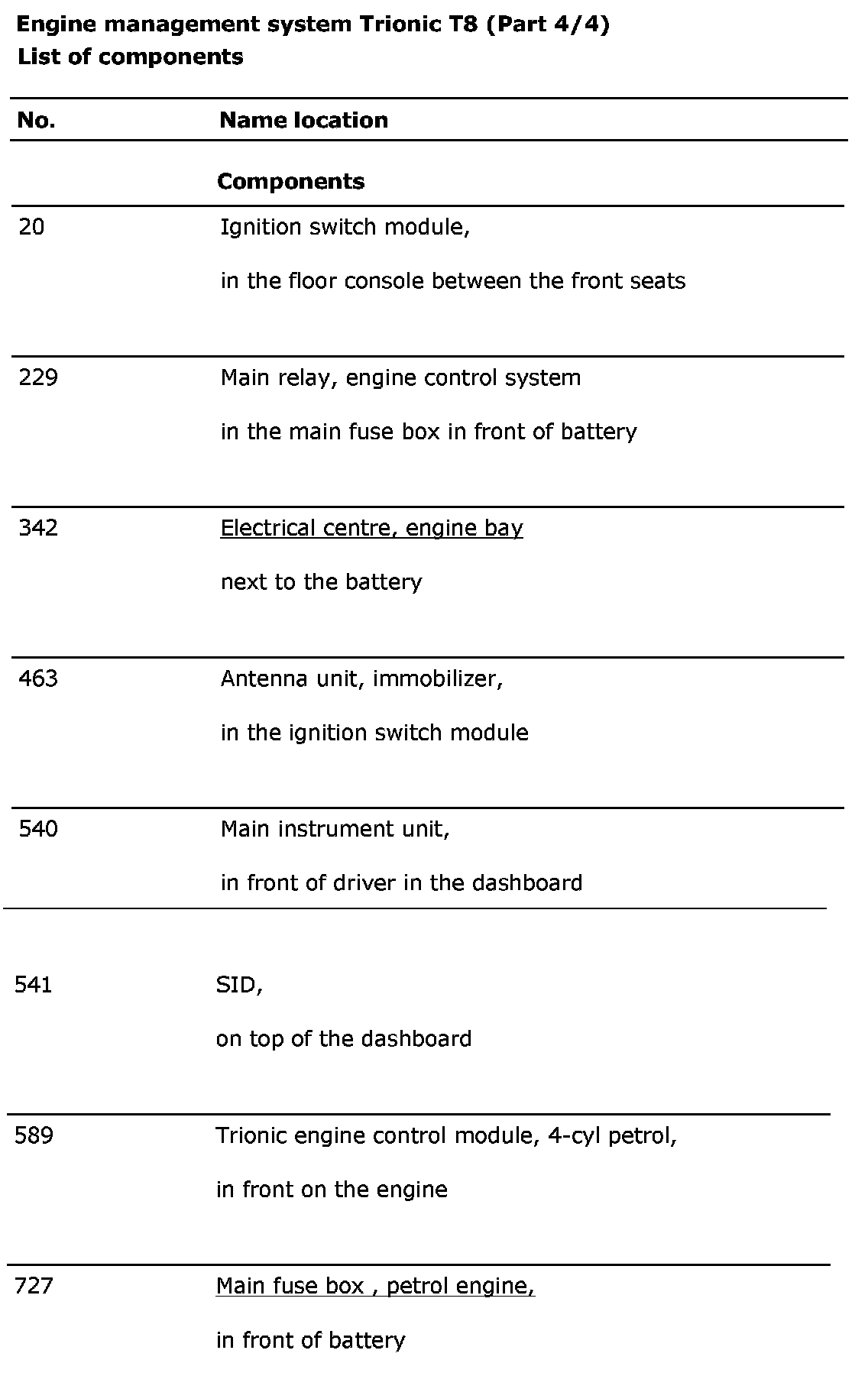

List Of Components (Part 1):

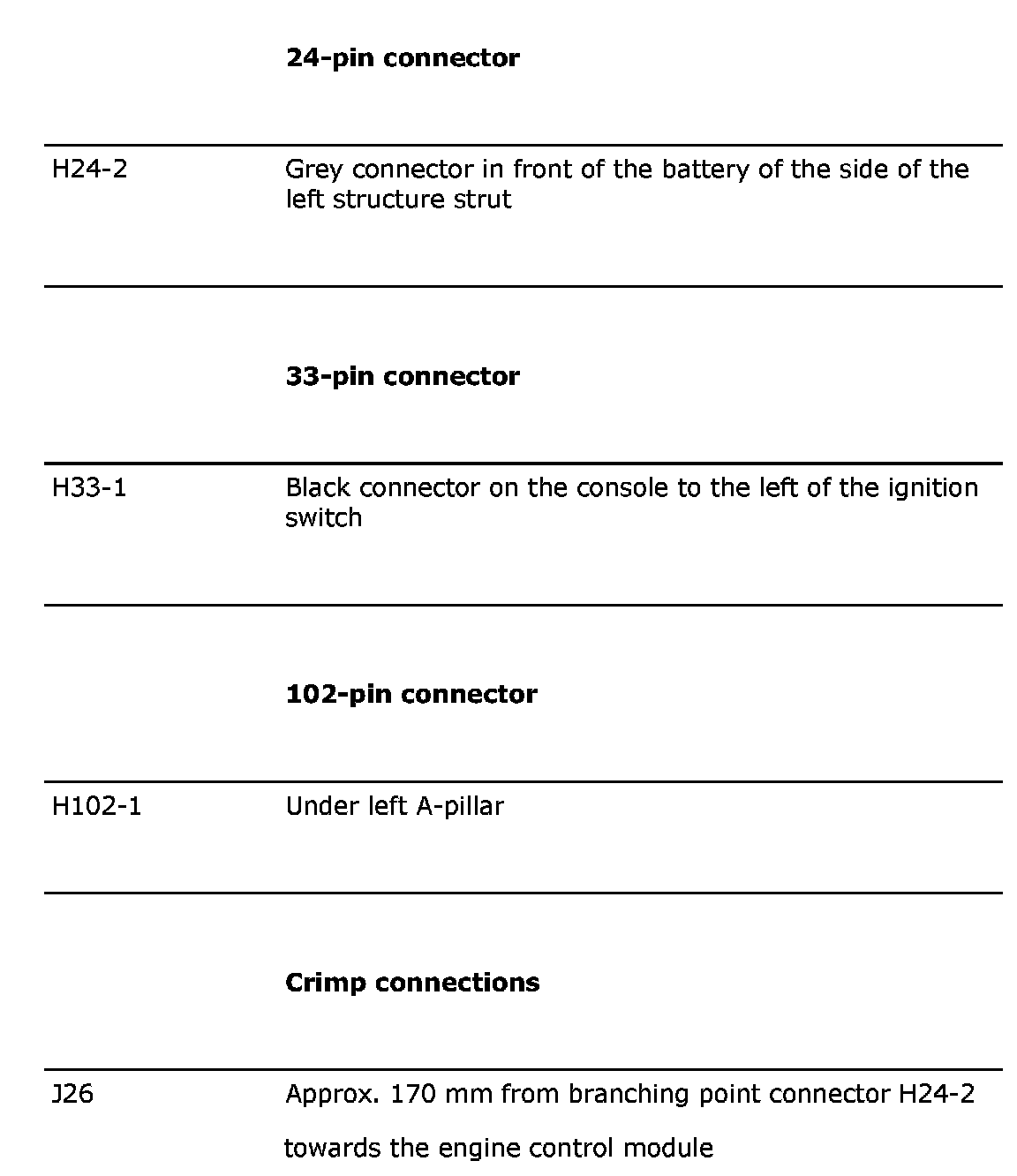

List Of Components (Part 2):

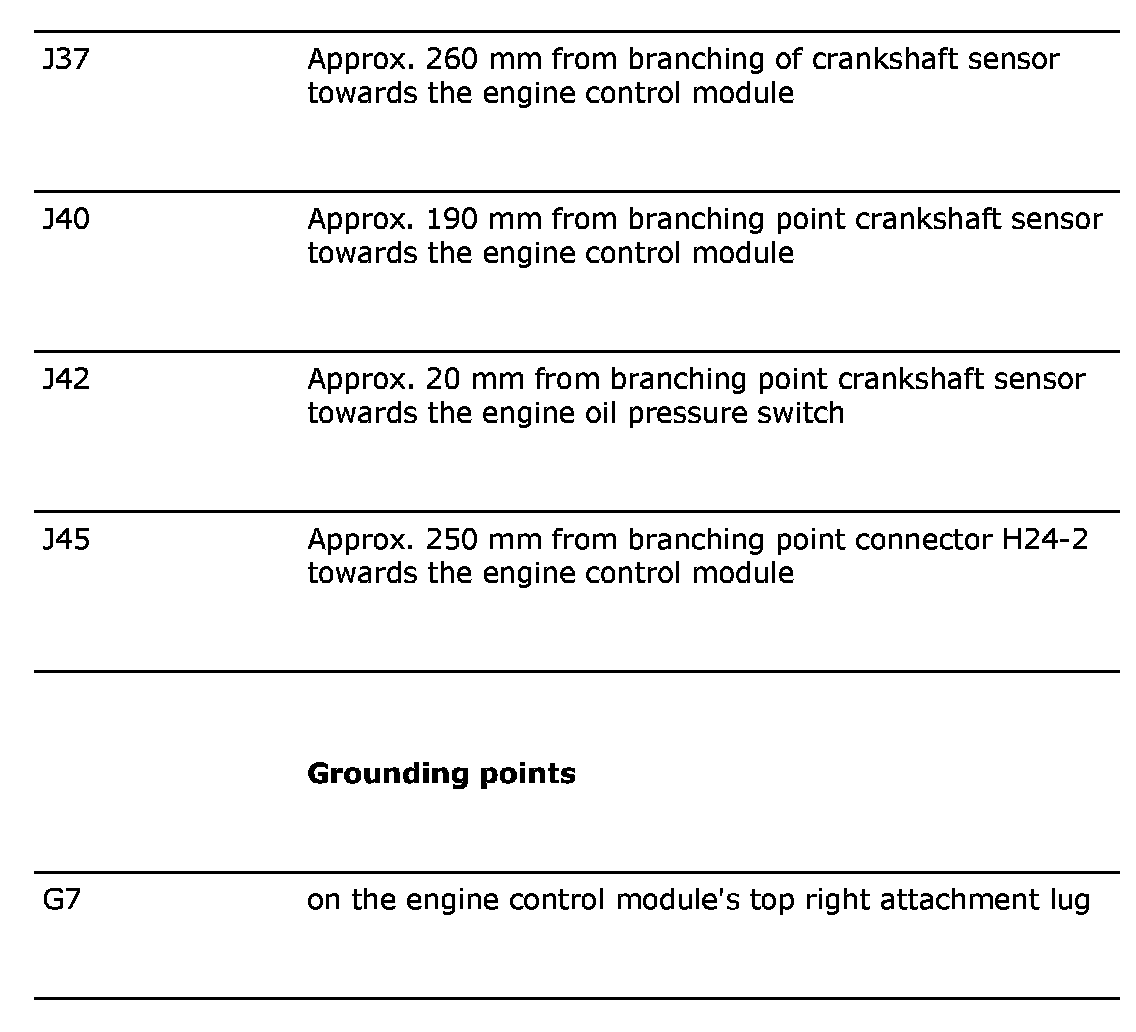

List Of Components (Part 3):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
