Provisions For Mobile Telephone Installation
Provisions For Mobile Telephone Installation

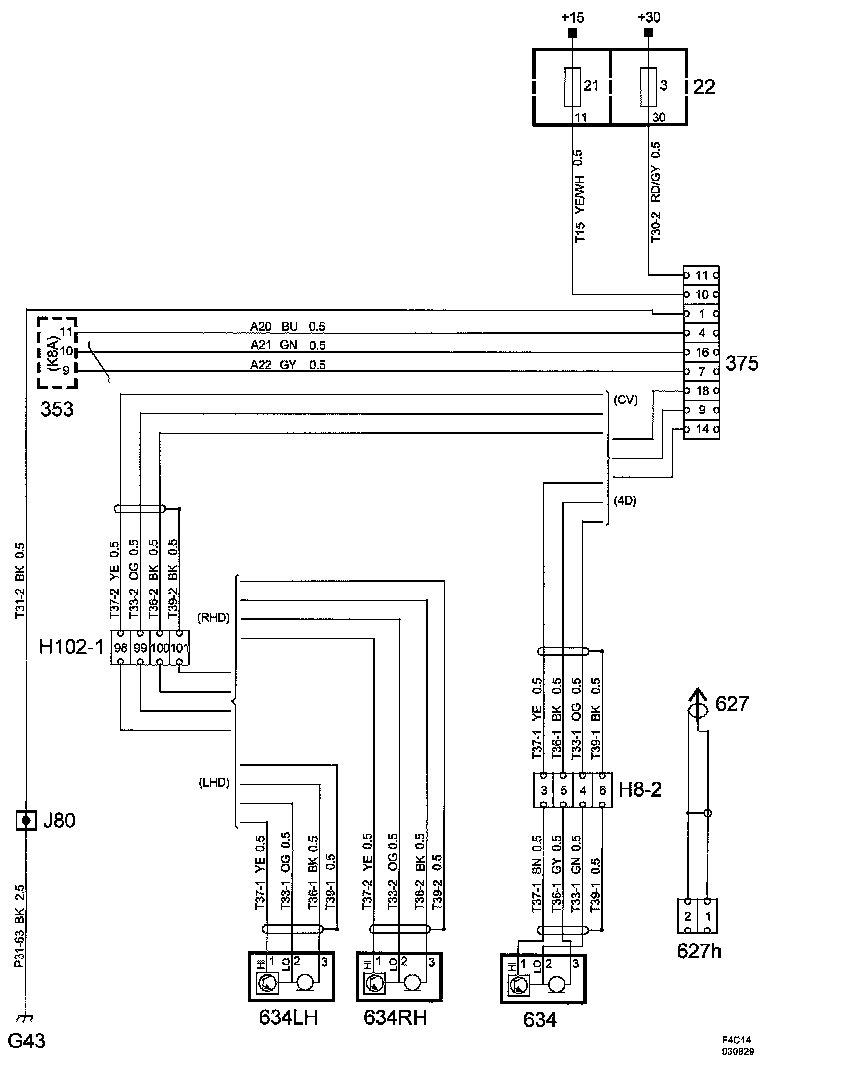

Provisions For Mobile Telephone Installation:

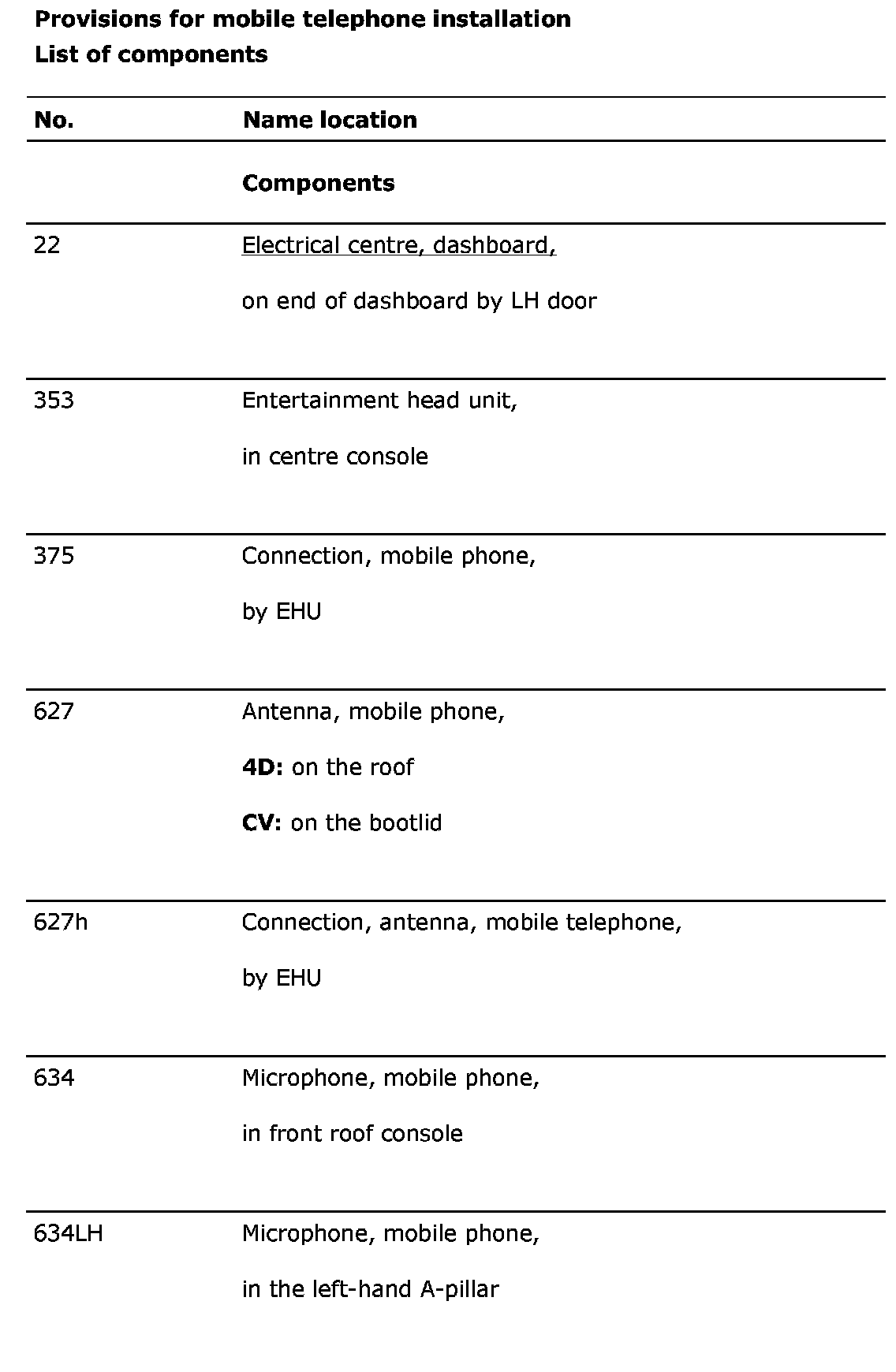

List Of Components (Part 1):

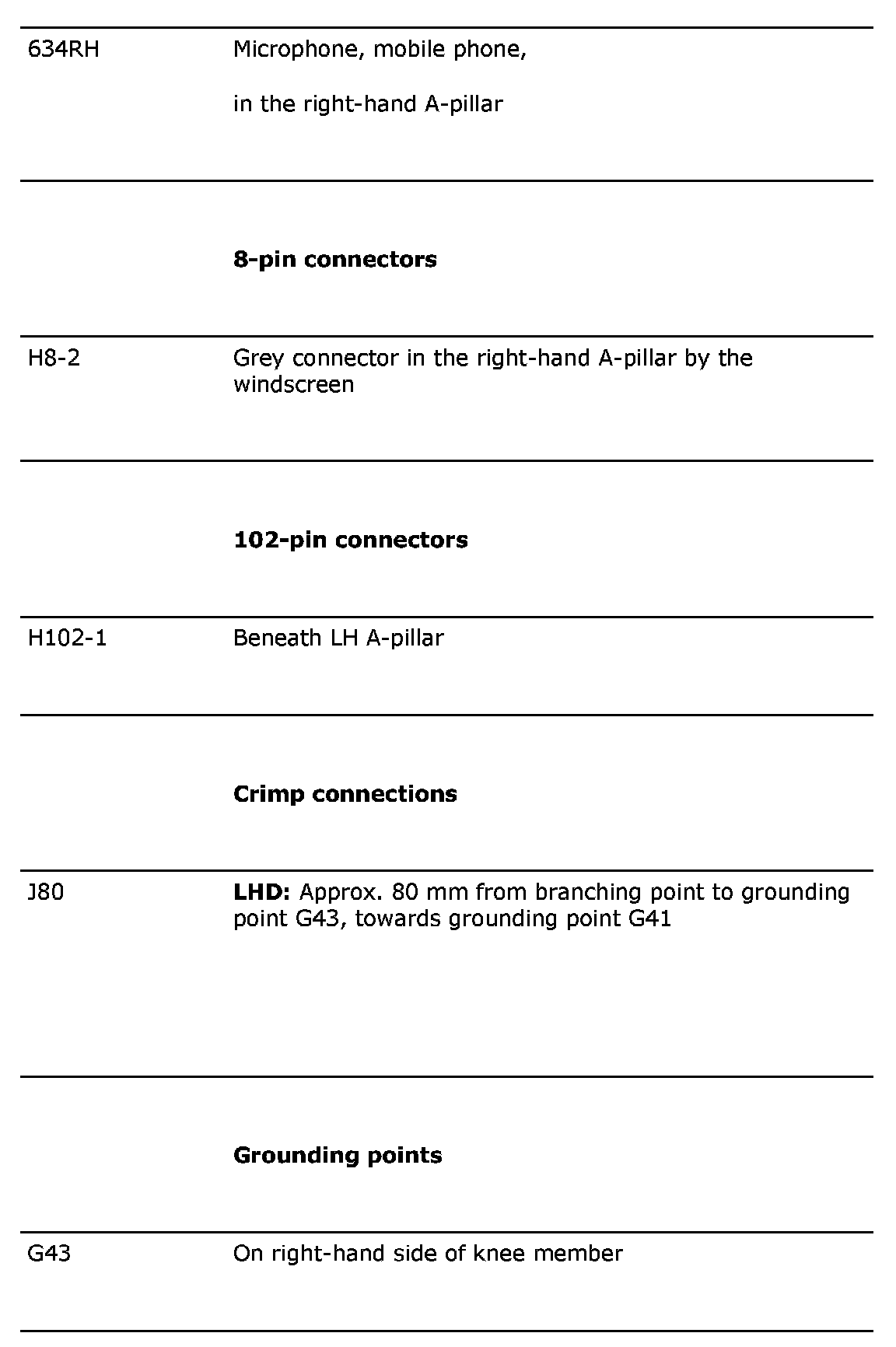

List Of Components (Part 2):
