Grounding Point G43



Grounding Point G43


The grounding point is connected with grounding point G34S via crimps J80 and J108.

Diagram:

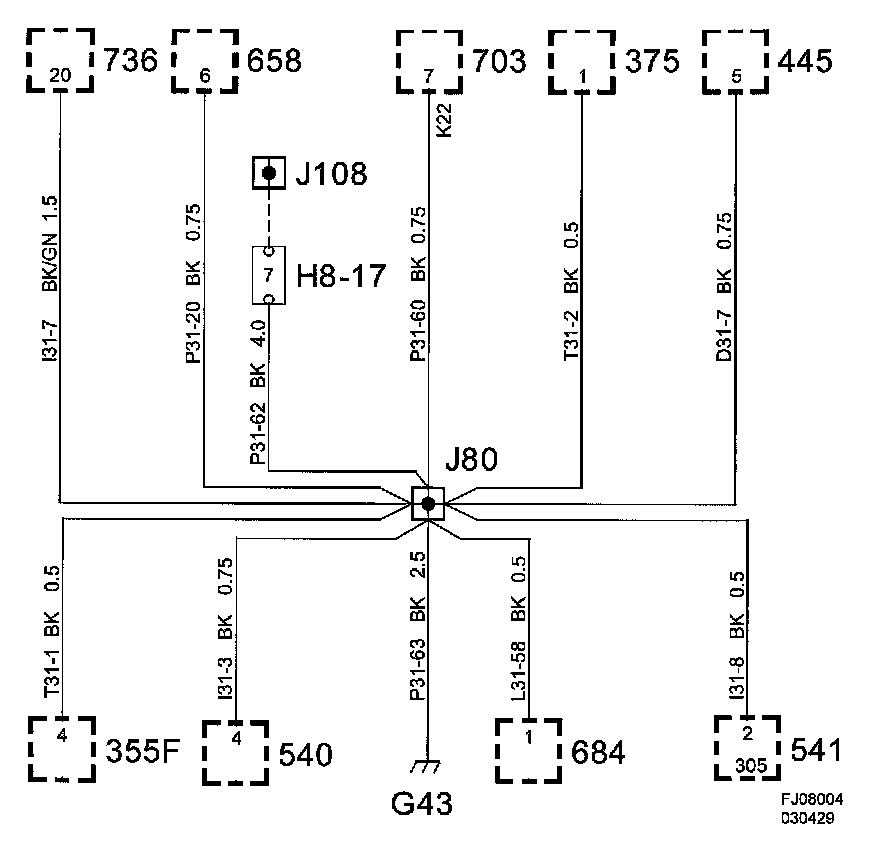

Crimp J80

Diagram:




Connected Components:






Location: On right-hand side of knee member

Grounding Point G43:
