Grounding Point G34S

Grounding Point G34S
The grounding point is connected to the G43 grounding point via crimp connectors J108 and J80.

Diagram:

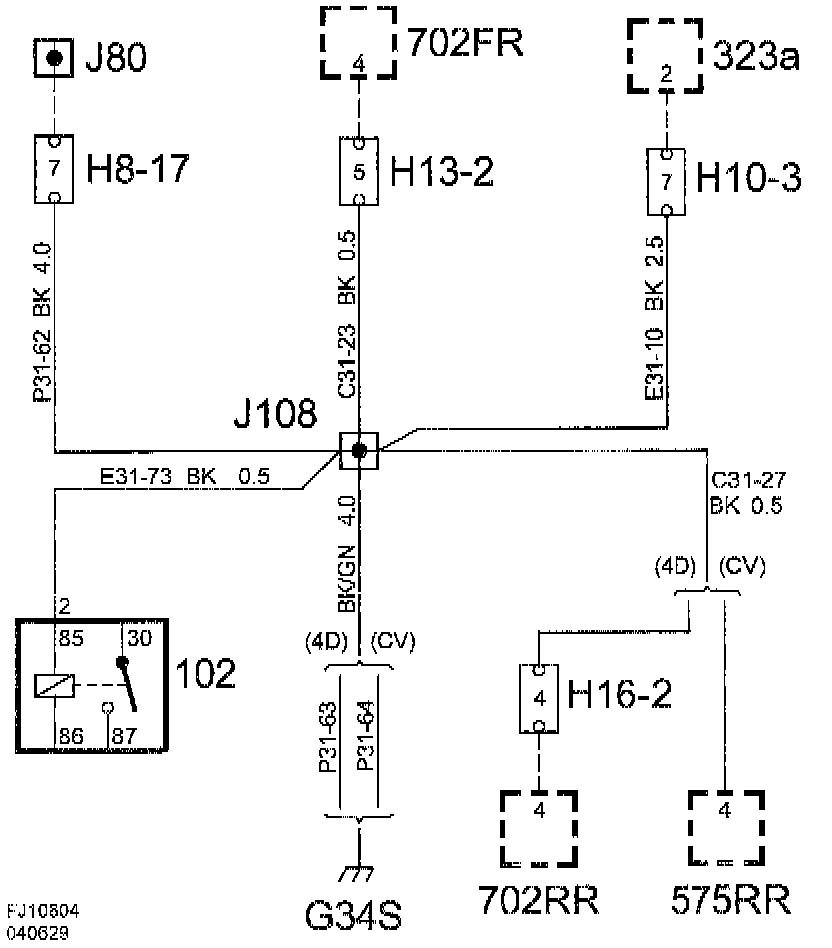

Crimp J108

Diagram:

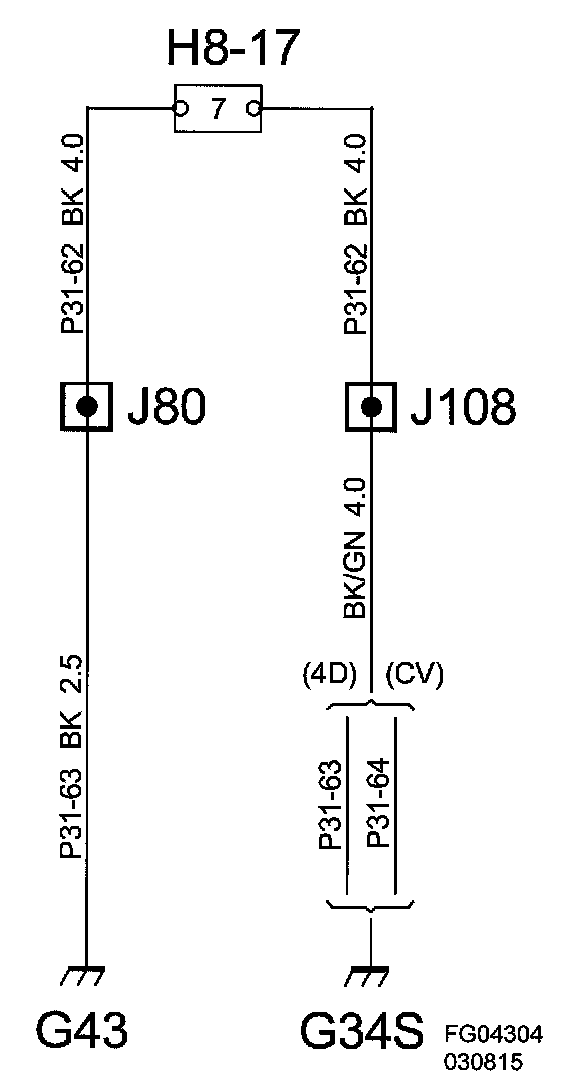

Connection to G43

Connected Components

Via Crimp connection J108, main wiring harness
102 Relay, fuel pump
323 Motor, fuel pump
323a Engine, fuel pump, parking heater
575RR Control module, window lift, rear RH (CV)
702D/P Control module, front door, RH
702RR Control module, right rear door (4D)

Via Crimp J135, inner door harness in the front right door, which is connected to crimp J108
209D/P Lamp, front right door courtesy lighting
388 Switch, tailgate/boot lid
514D/P Switch, simultaneous central locking, front right door
J108 Crimp - Connection to G43

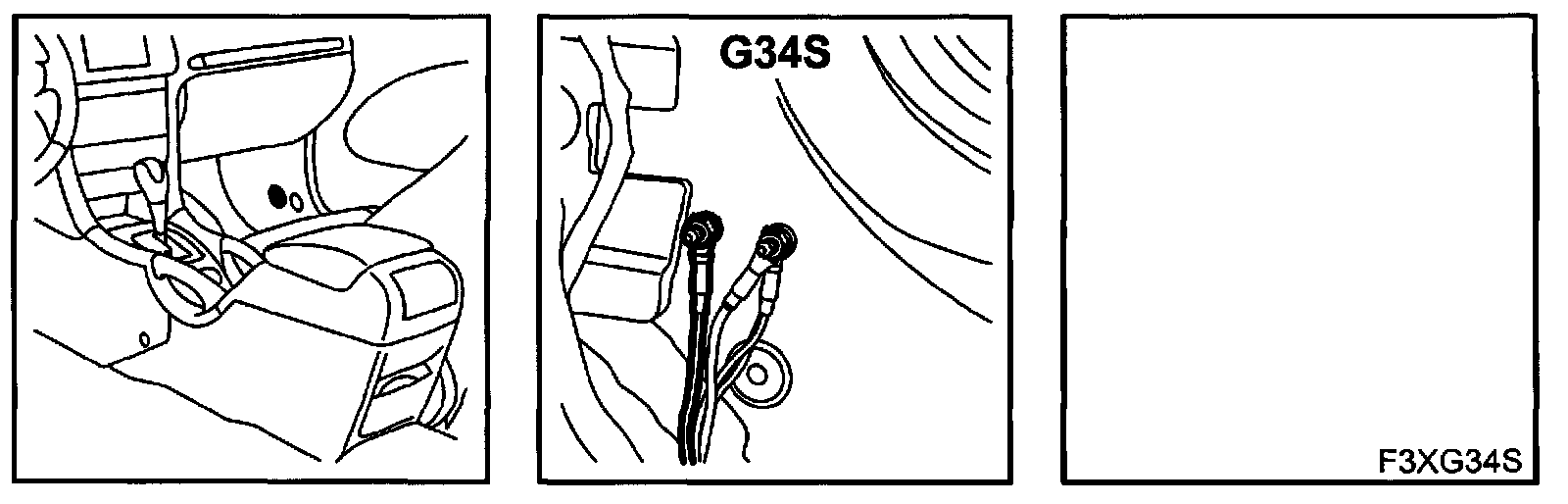

Grounding Point G34S:

Location: On the floor below the right-hand A-pillar (BK/GN cable).
