Grounding Point G33T

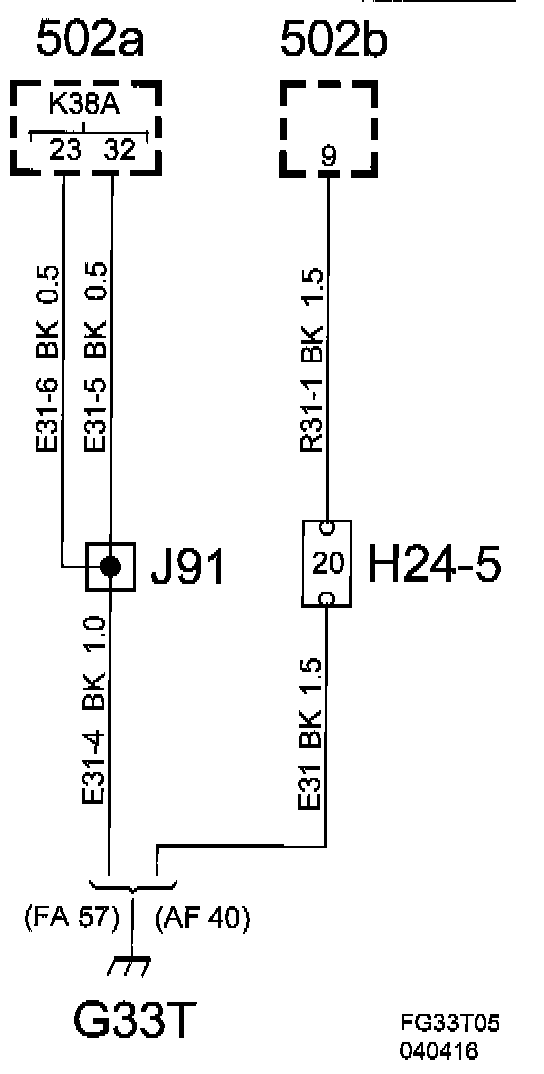

Diagram:






Connected Components

502b TCM (AF 40)

Via Crimp J91, main harness
502a TCM (FA 57)

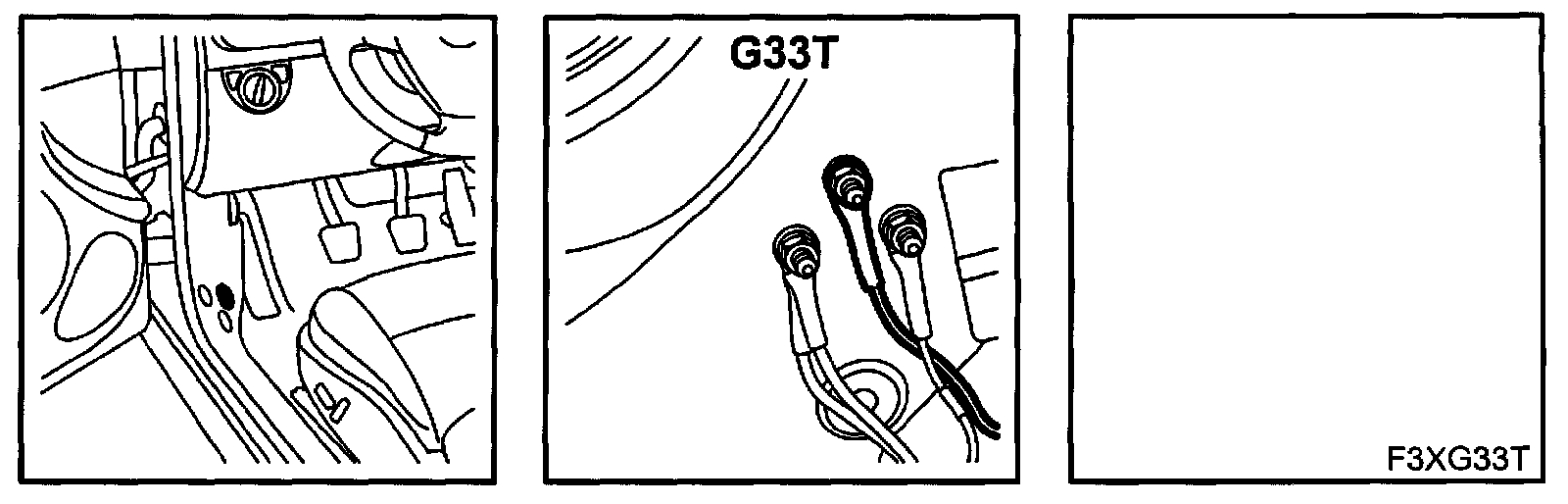

Grounding Point G33T:






Location: Upper grounding point on floor below left A-pillar.
