Grounding Point G30B

Grounding Point G30B

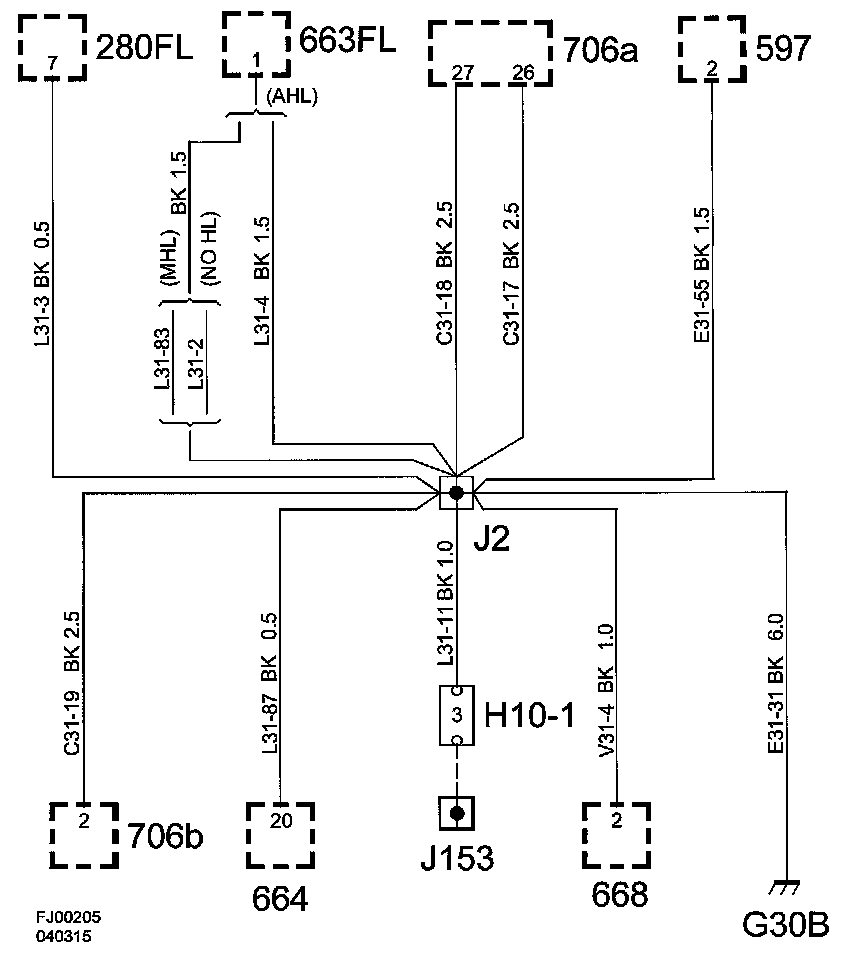

Diagram:

The grounding point is connected to grounding point G30A via crimp J2, engine bay electrical centre 342, and crimp J1.

Connected Components

Via crimp J2, front harness
62F Windscreen wipers
89LH Left side direction indicator bulb
280FL Left-hand headlamp levelling motor
342 Electrical centre, engine bay
597 Parking heater
664 AHL control module
668 High pressure headlamp pump motor
757F Relay +15, UEC

Via crimp J153, front bumper harness which in turn is connected with J2
85FL Left fog light bulb
85FR Right fog light bulb
234FL Left side marker light bulb
234FR Right side marker light bulb

Grounding Point G30B:

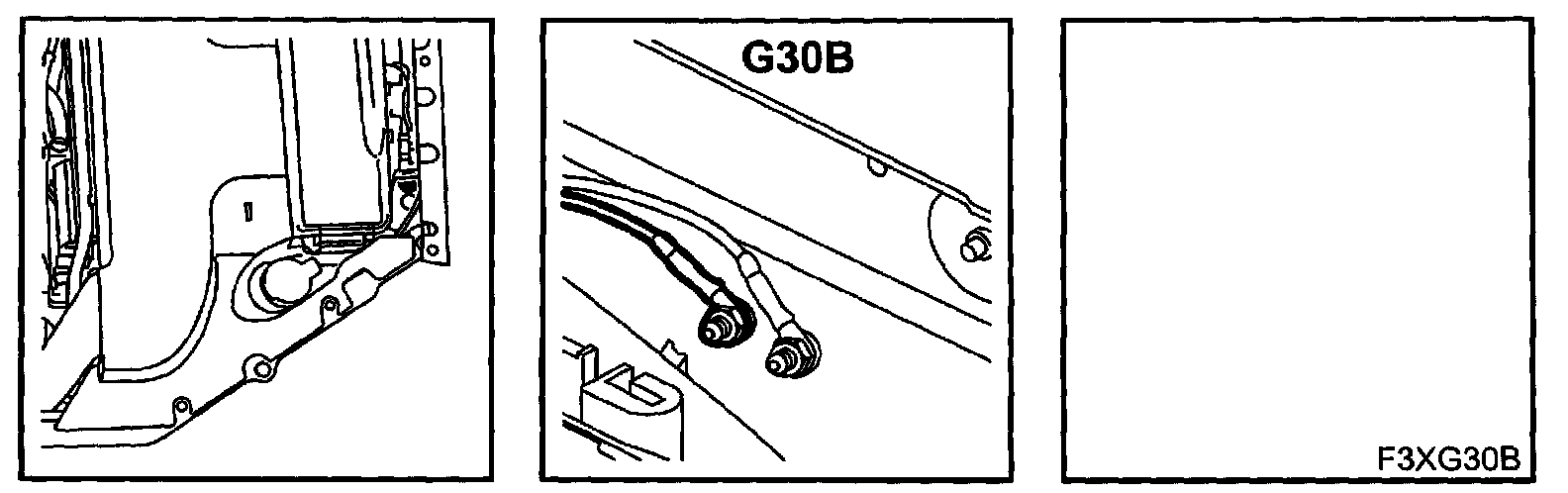

Location: Rear grounding point on side panel above rear left wheel housing.
