Grounding Point G30A

Grounding Point G30A

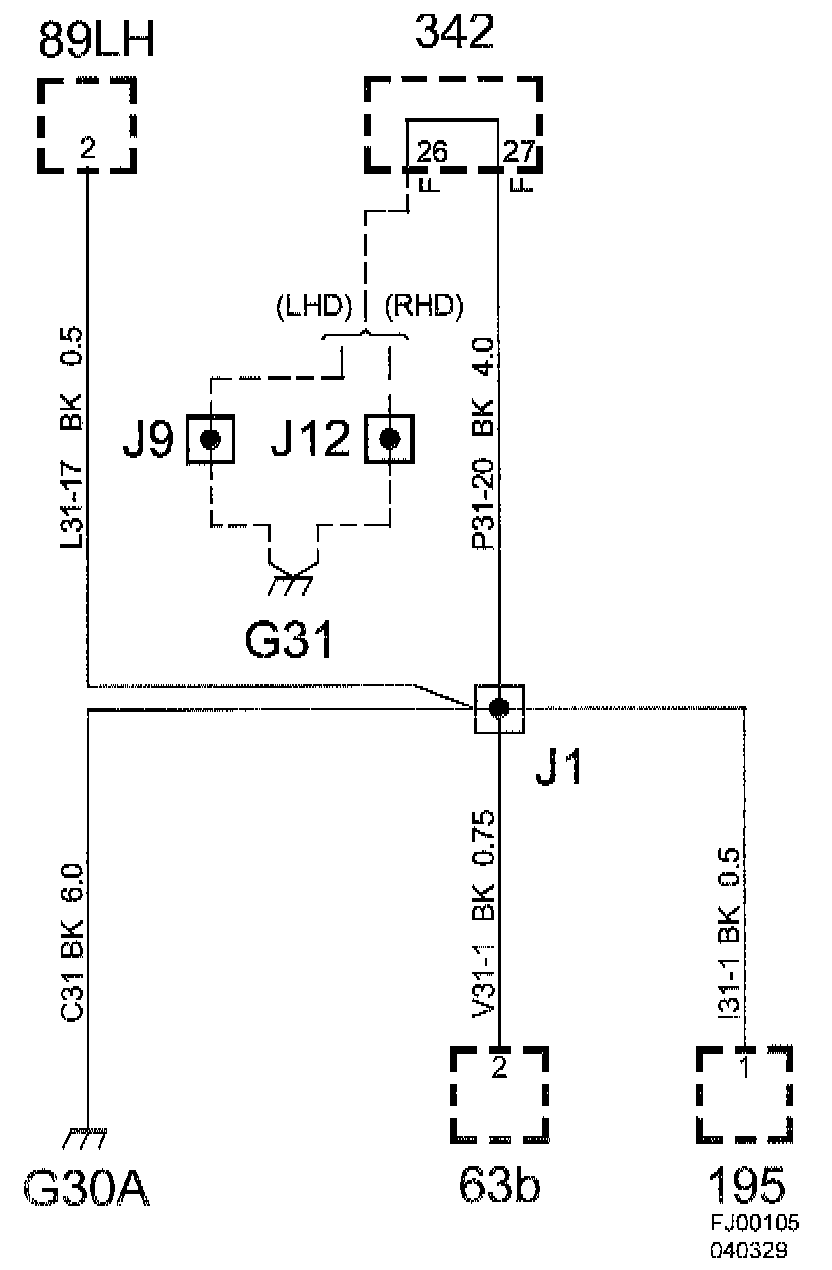

Diagram:

The grounding point is connected to grounding point G31 via crimp J1, the underhood electrical centre 342 and crimp J9/J12.

Connected Components

Via Crimp J1, front wiring harness
63b Windscreen washer fluid pump motor
89LH Lamp, side direction indicator, left
195 Washer fluid level switch
342 Underhood electrical centre

Via Crimp J173, spotlight wiring harness
676LH Bulb, spotlights, LH
676RH Bulb, spotlights, RH

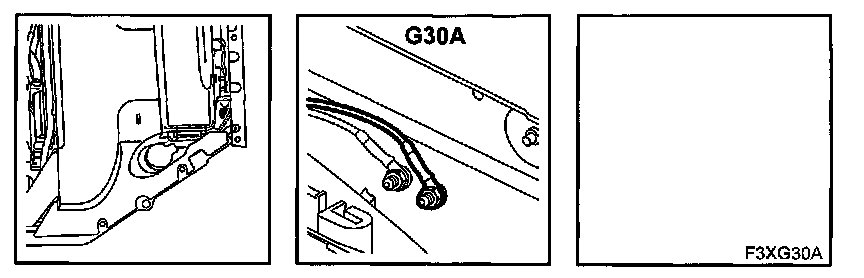

Location: Front grounding point on the side plate above the LH front wheel housing.
