Grounding Point G3



Grounding Point G3

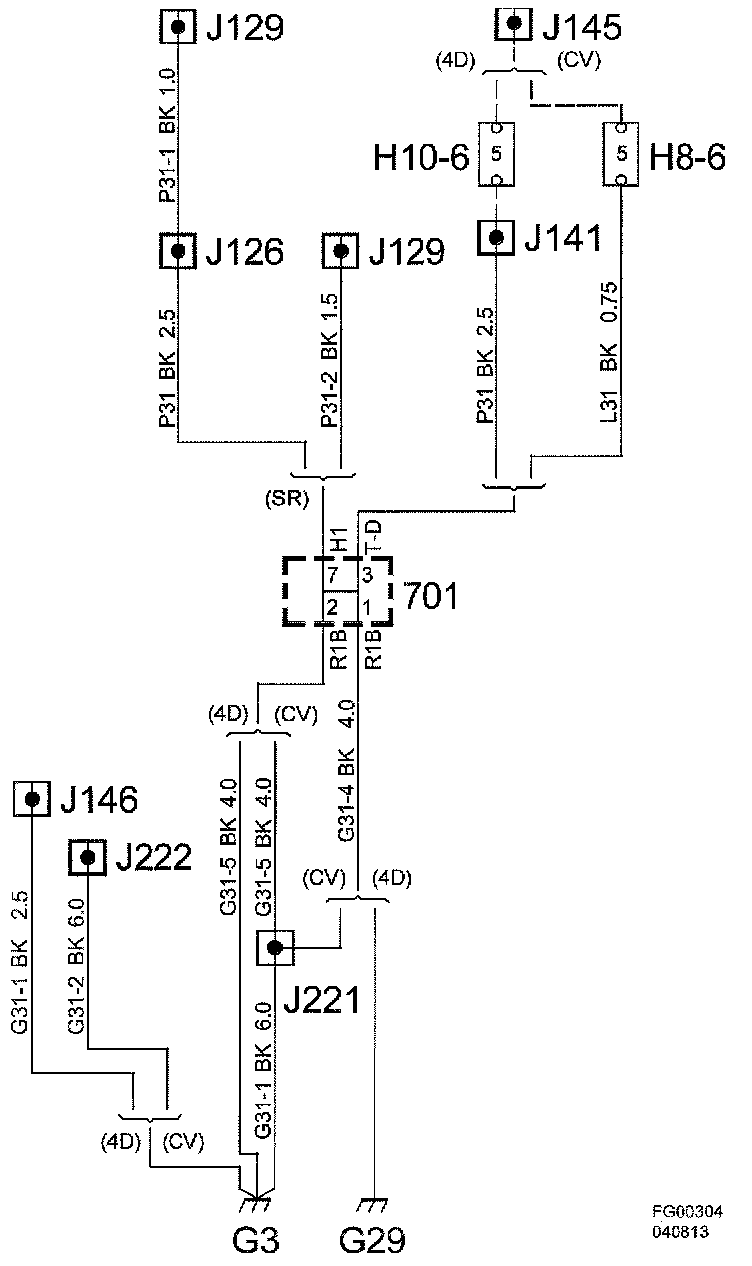

Diagram:

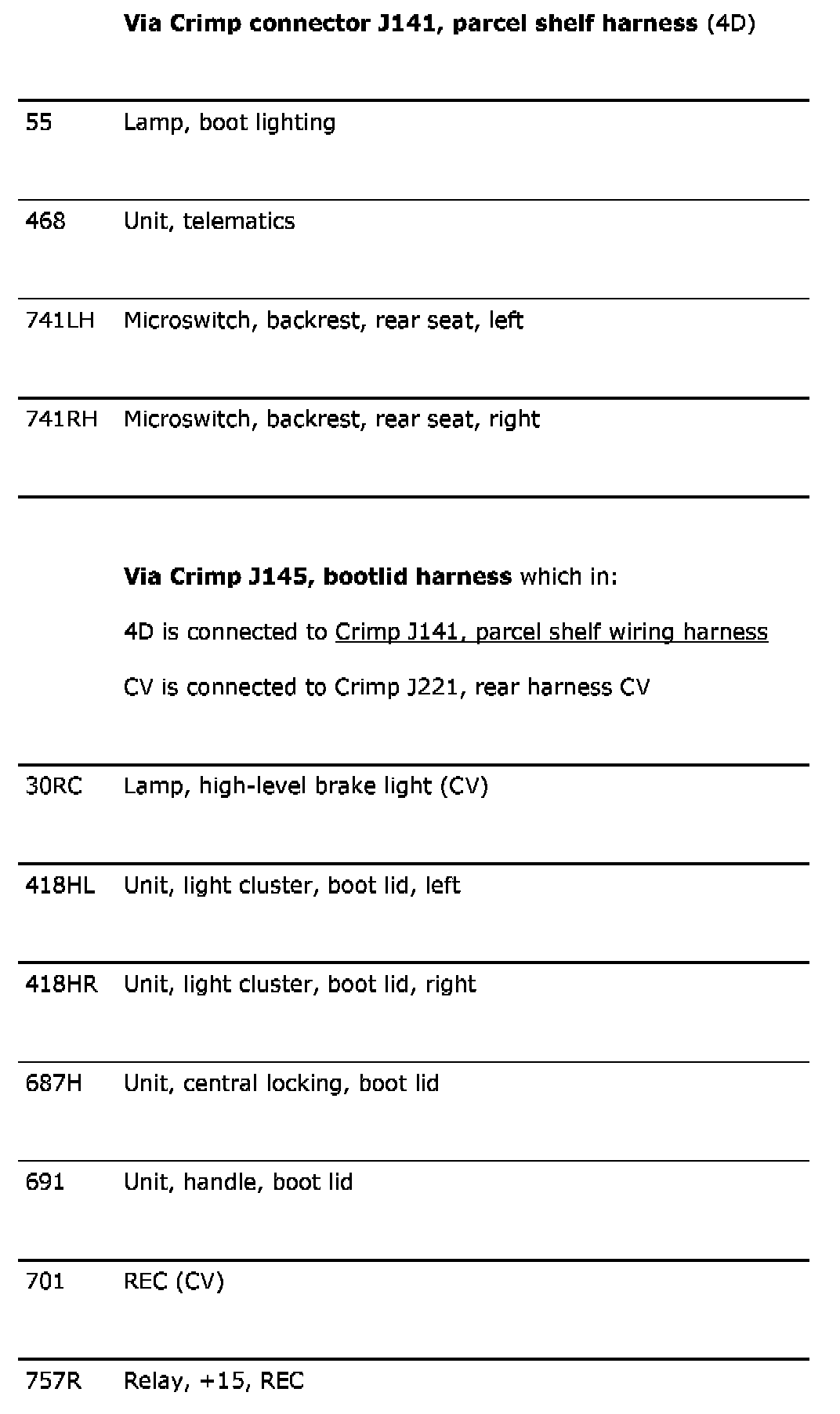

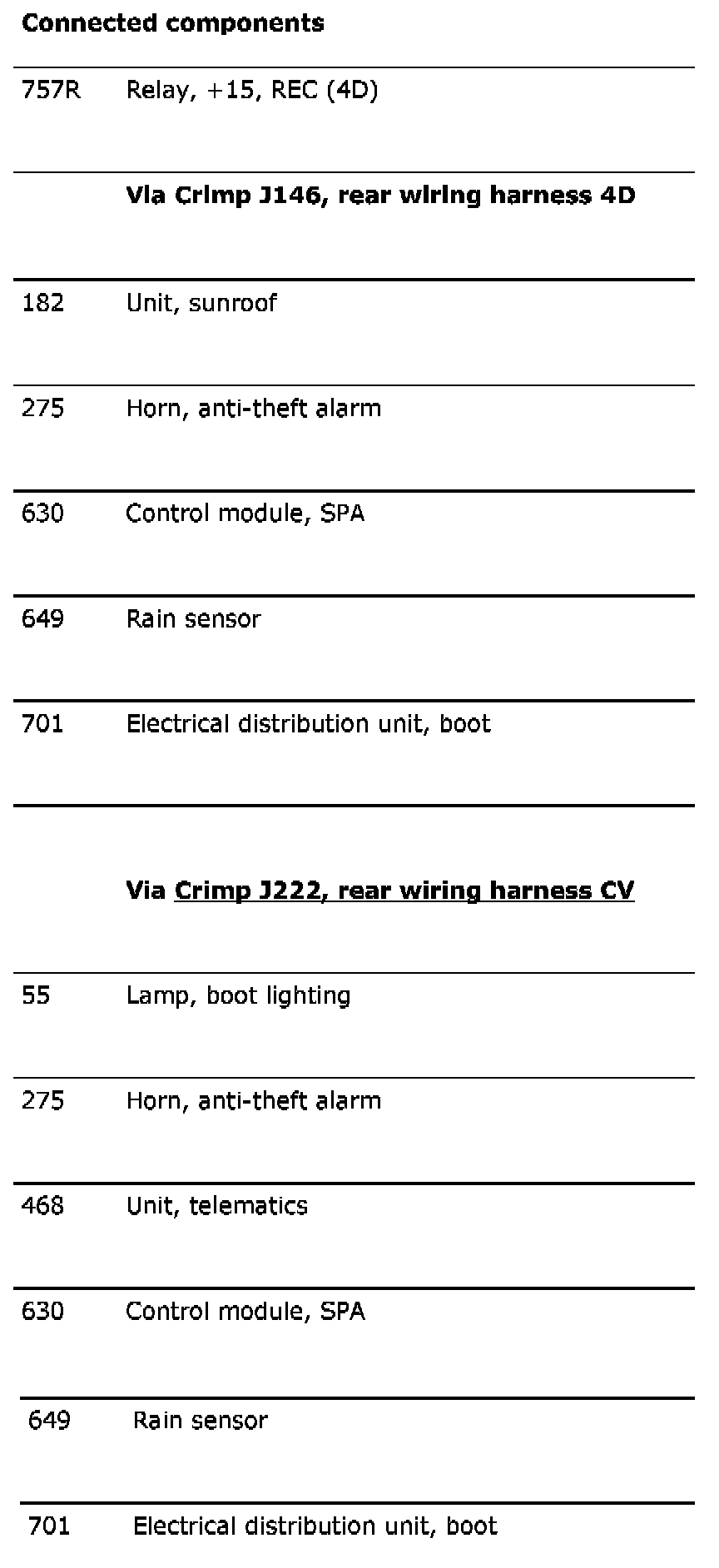

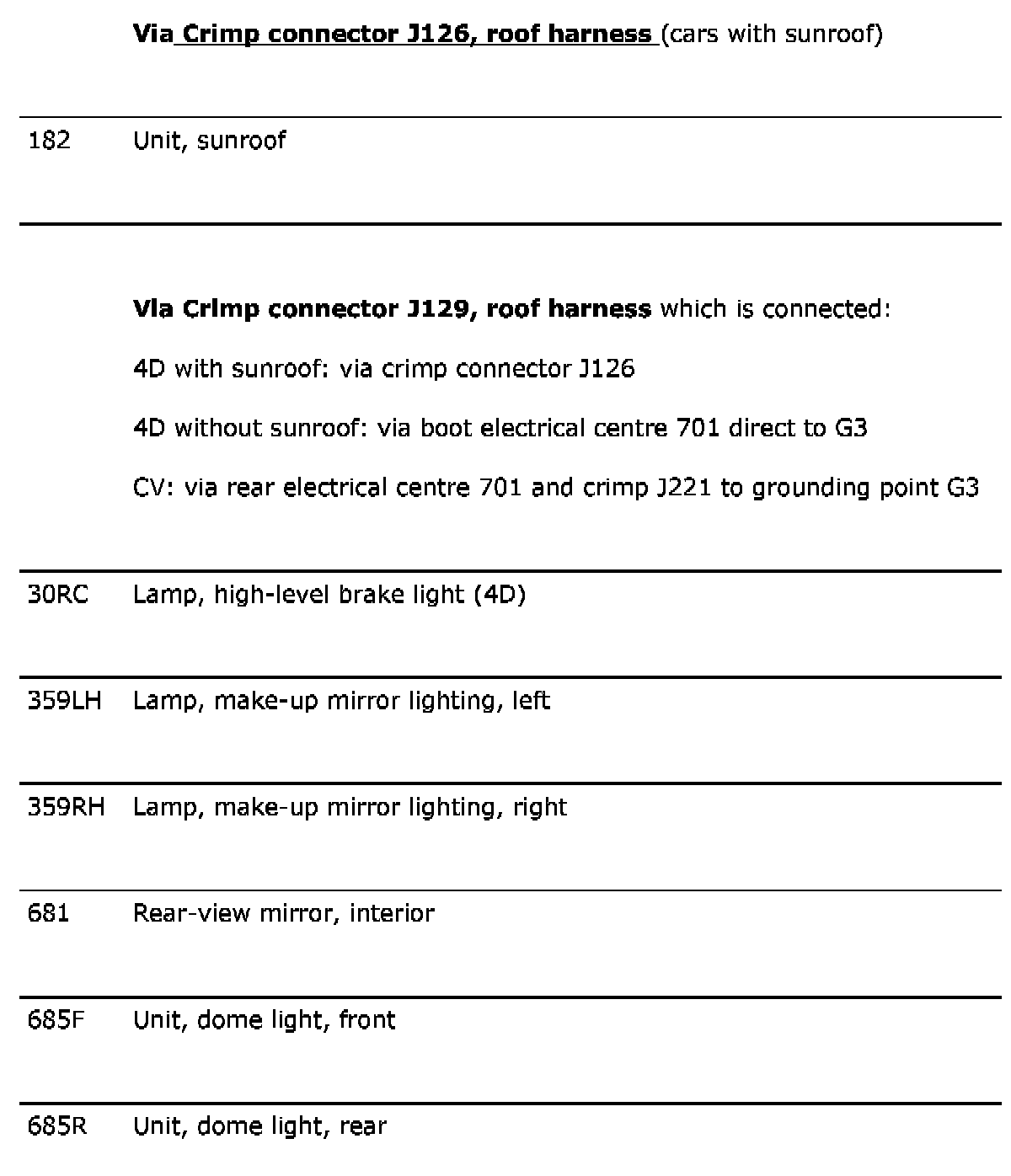

Connected Components Part 1:




Connected Components Part 2:




Connected Components Part 3:

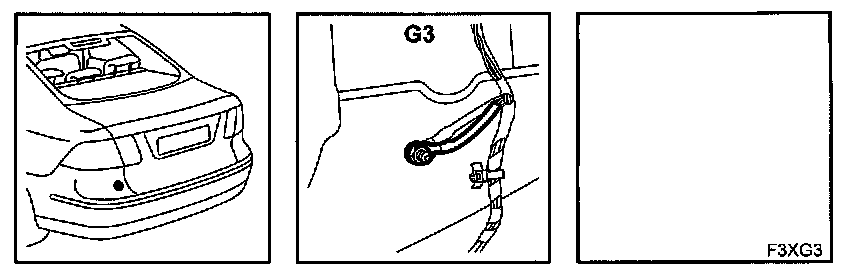

Location: In boot below left light cluster

The grounding point is connected with grounding point G29 via the boot electrical centre 701.
