Grounding Point G15
Grounding Point G15
Grounding Point
G15

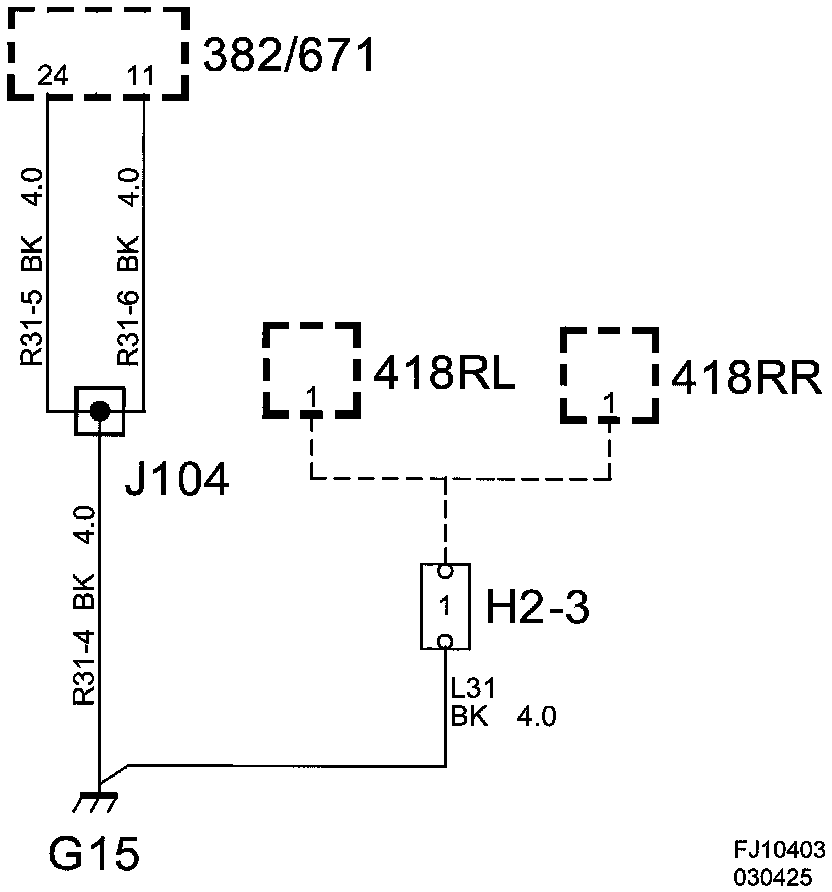

Diagram:

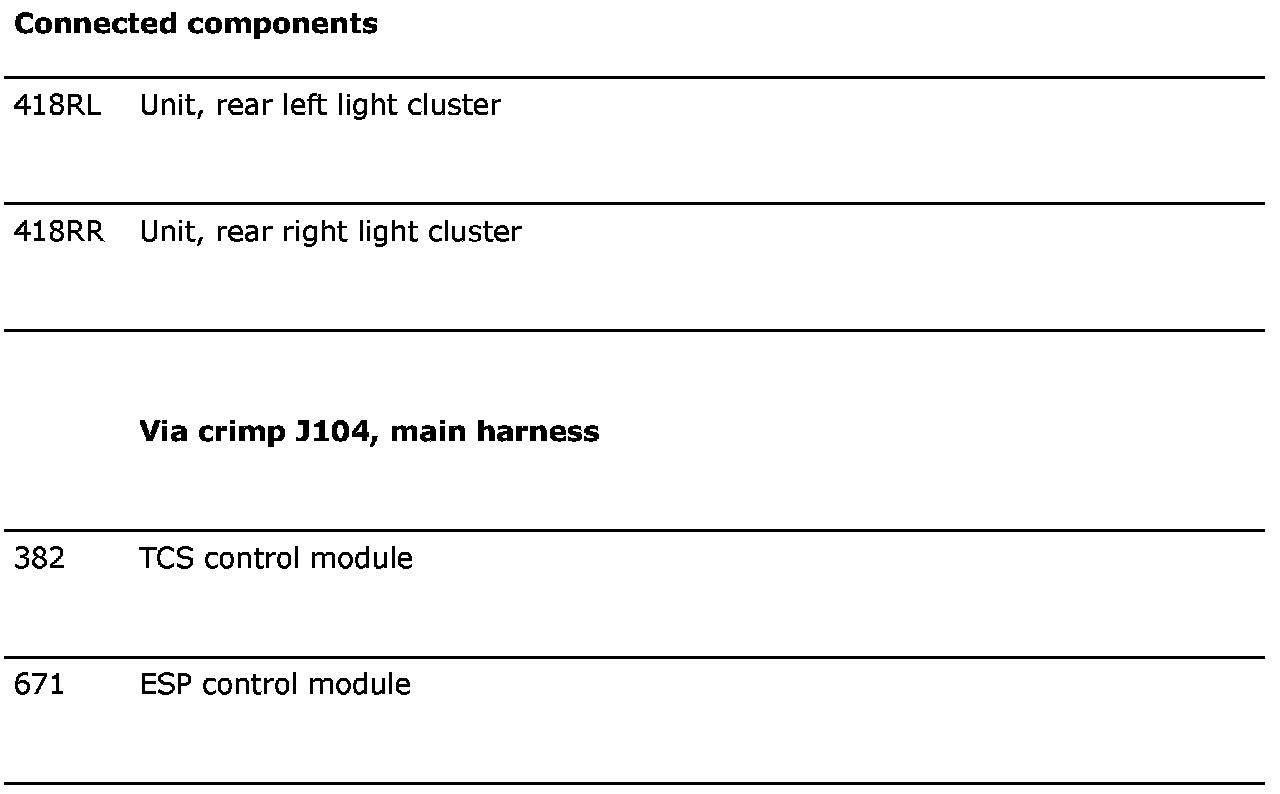

Connected Components:

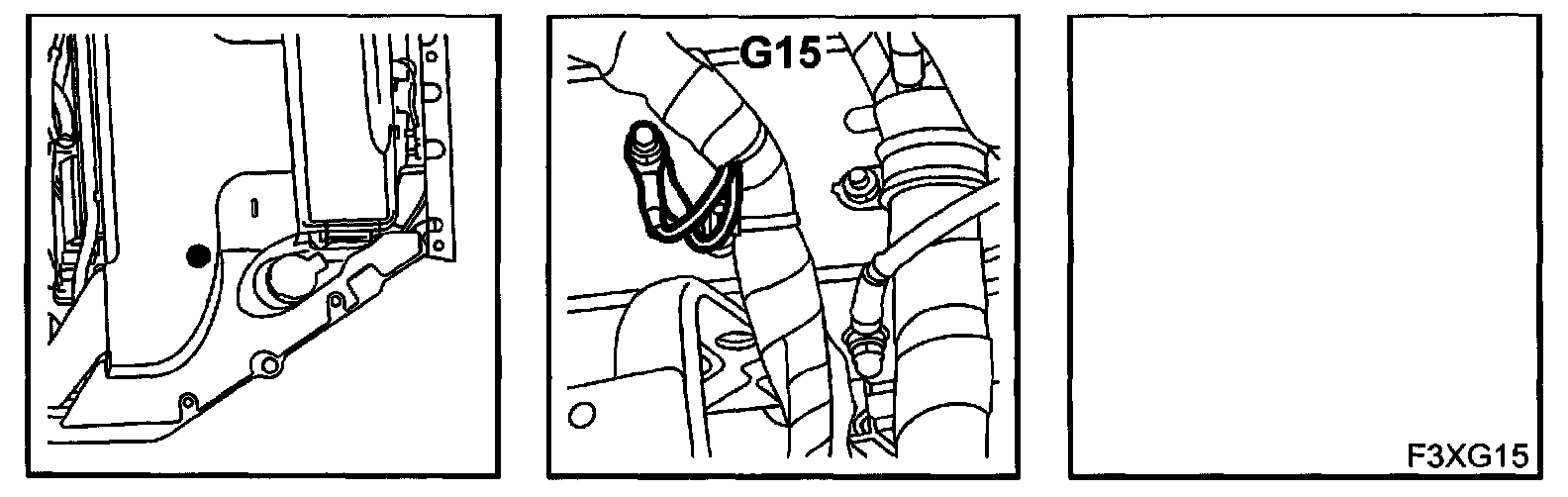

Location:
On left-hand structural member under battery
Grounding Point G15:
