Crimp Connection J211, Main Wiring Harness



Crimp J211, Main Wiring Harness CV

Location: Approx. 200 mm from the branching point to the LH front door towards the roof light unit

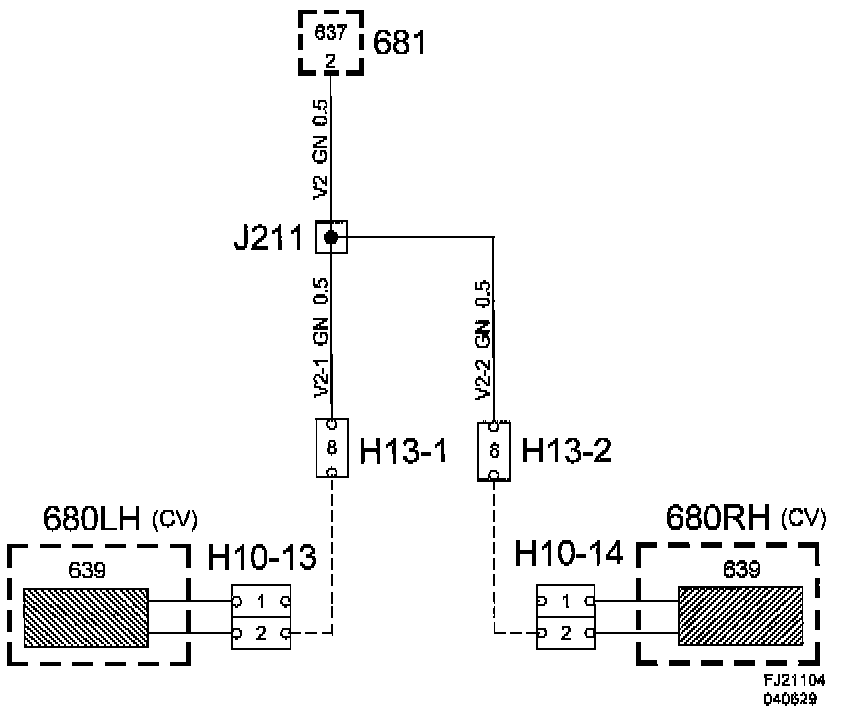

Diagram:




List Of Components:
