Crimp Connection J206, Main Harness



Crimp Connector J206, Main Harness CV

Location: Approx. 210 mm from branching point of side impact sensor at left-hand B-pillar towards left front door

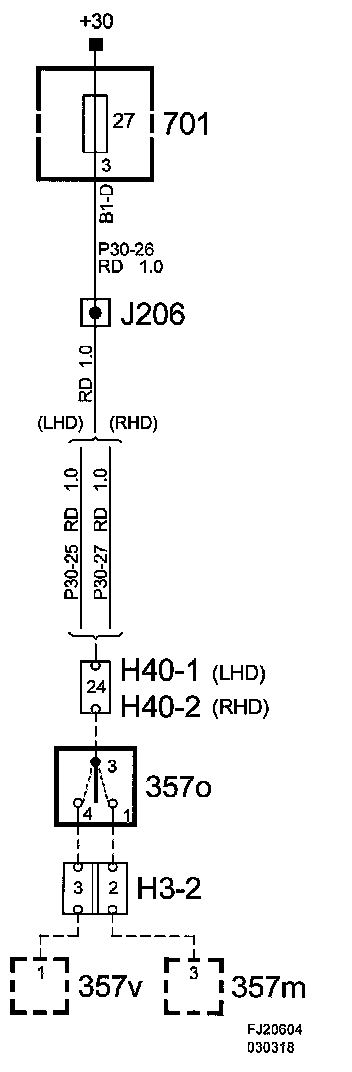

Diagram:

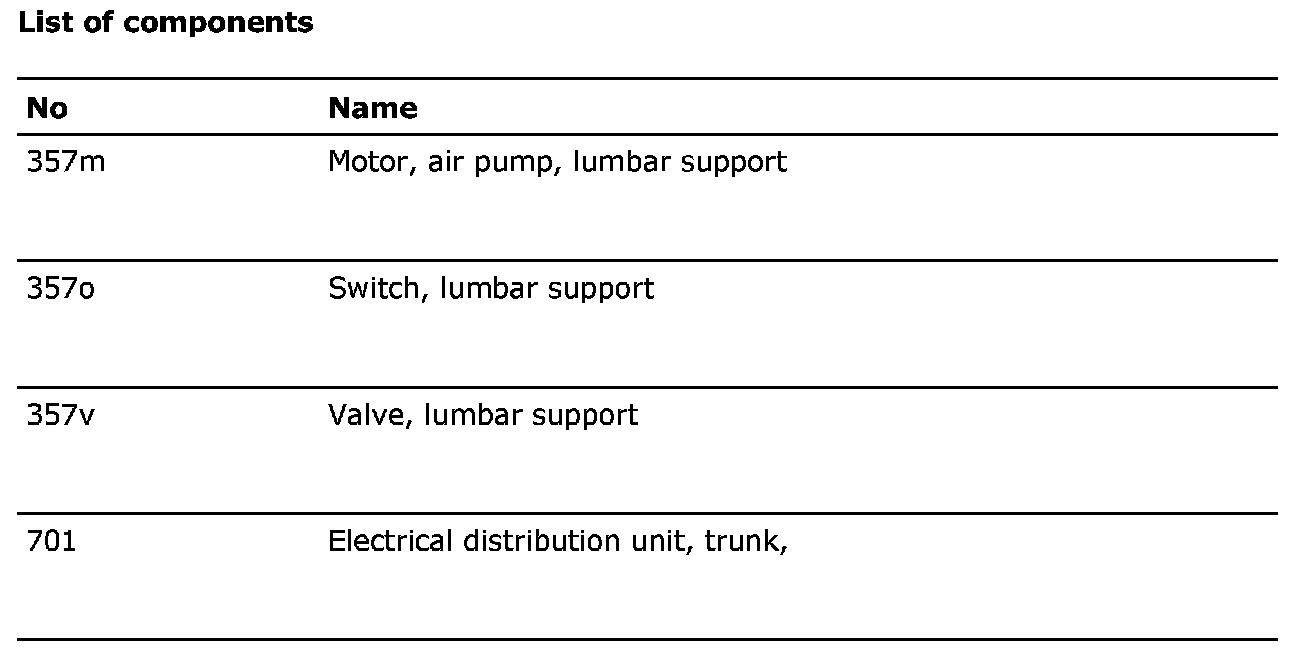

List Of Components:
