Crimp Connection J162, Seat Harness
Crimp J162, Seat Harness
Location: Approx. 65 mm from branching point motor 375b towards seat switch

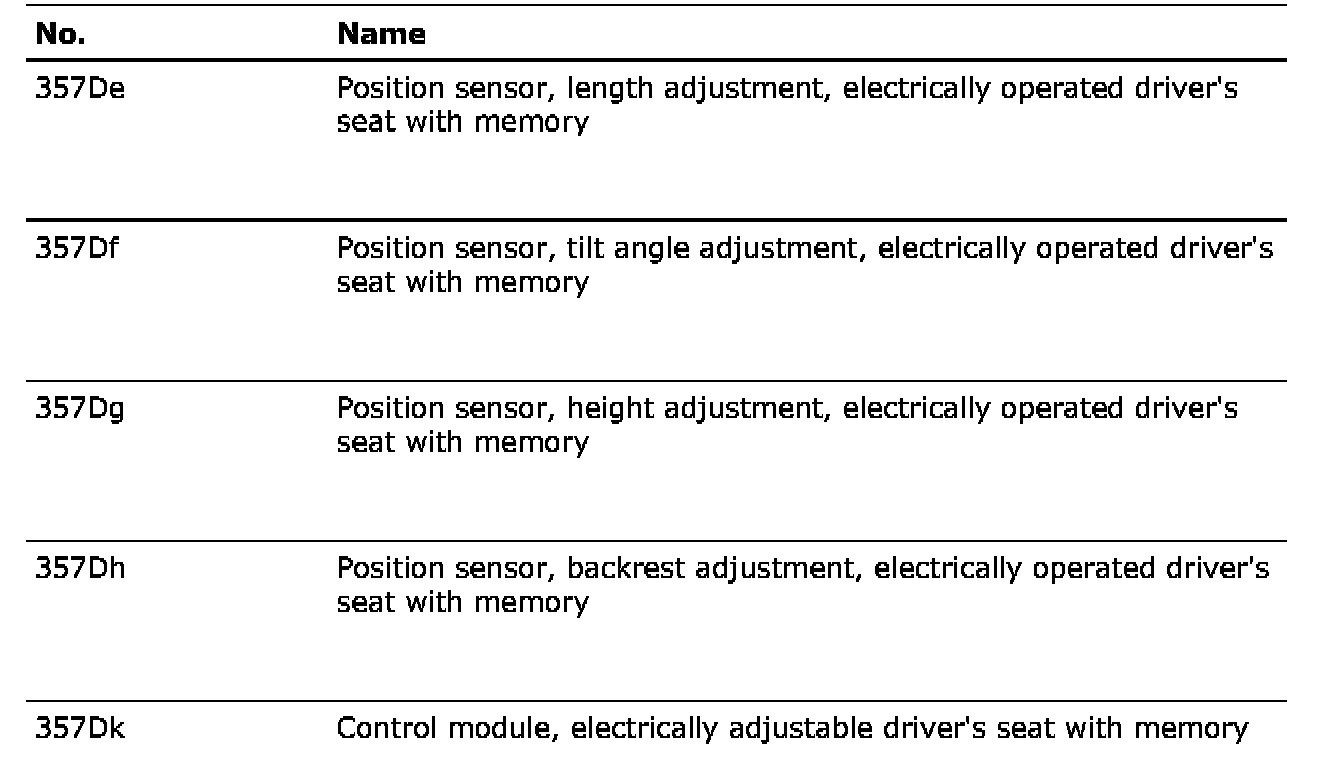

List Of Components:
Electrically Adjustable Seat With Memory CV As From Rev.2

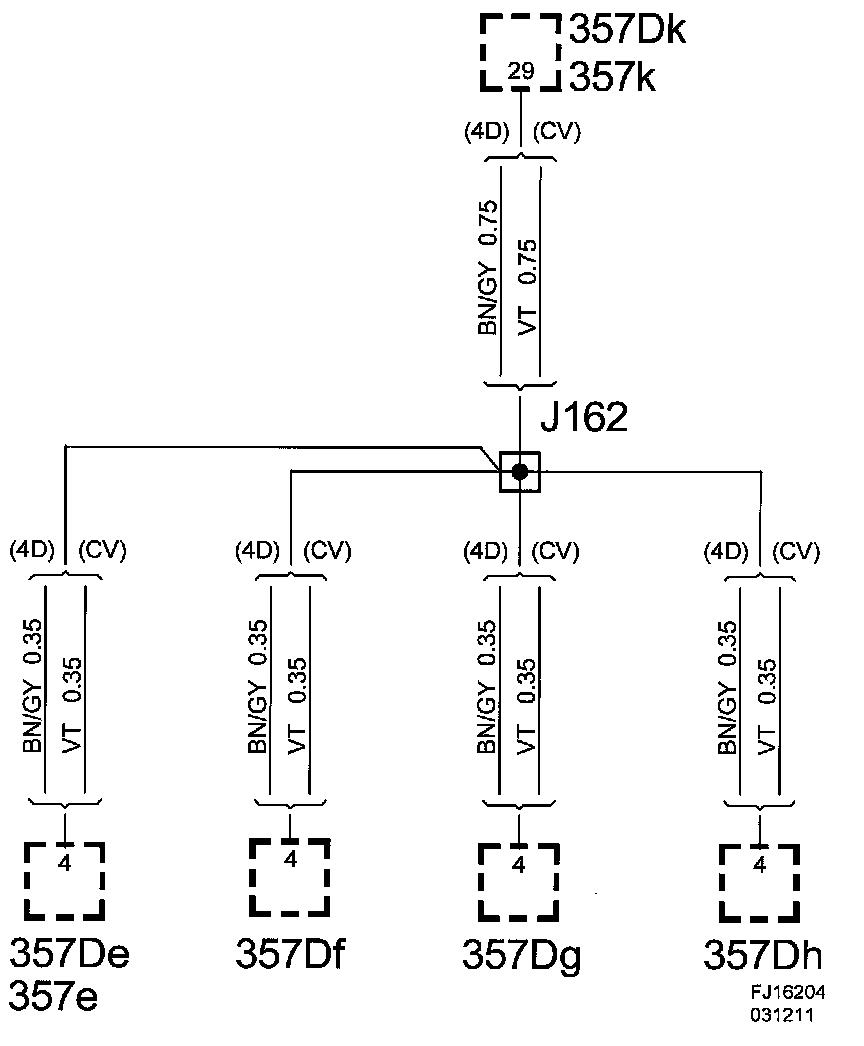

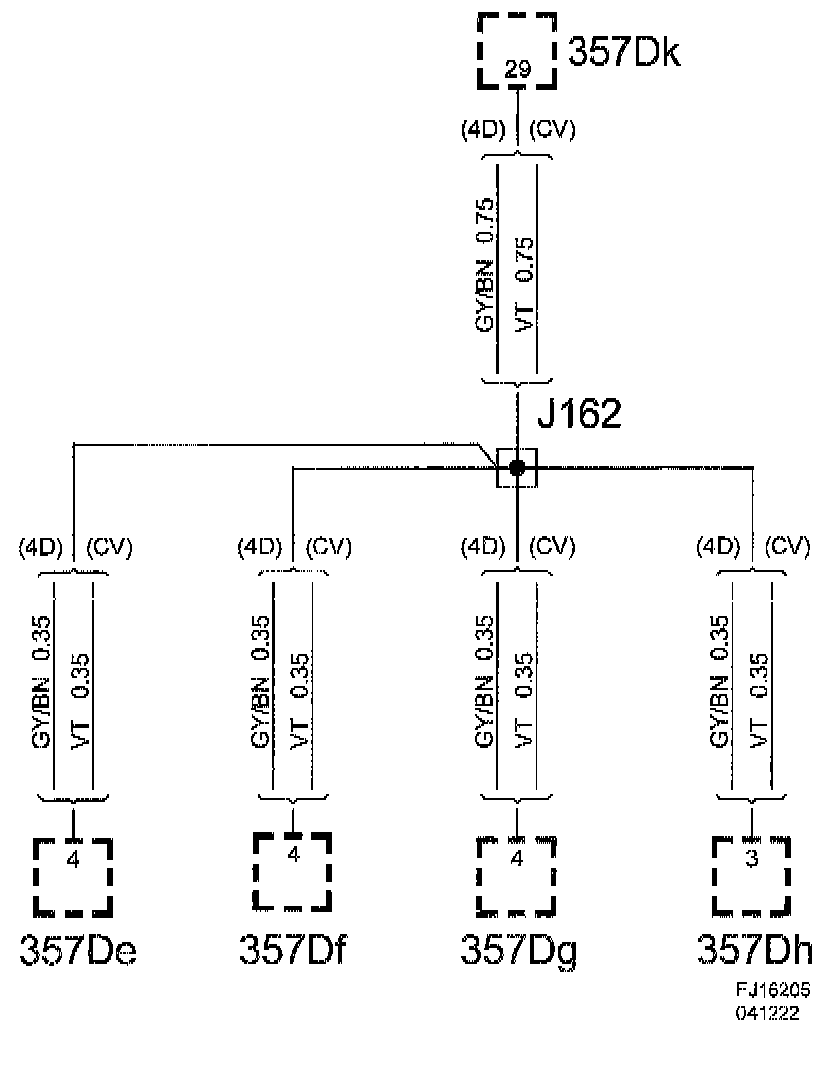

Diagram:
List Of Components:
Crimp J162, Seat Harness
Location: Approx. 65 mm from branching point motor 375b towards seat switch
Electrically Adjustable Seat With Memory CV As From Rev.2
