Fuse 5, Maxi Fuse

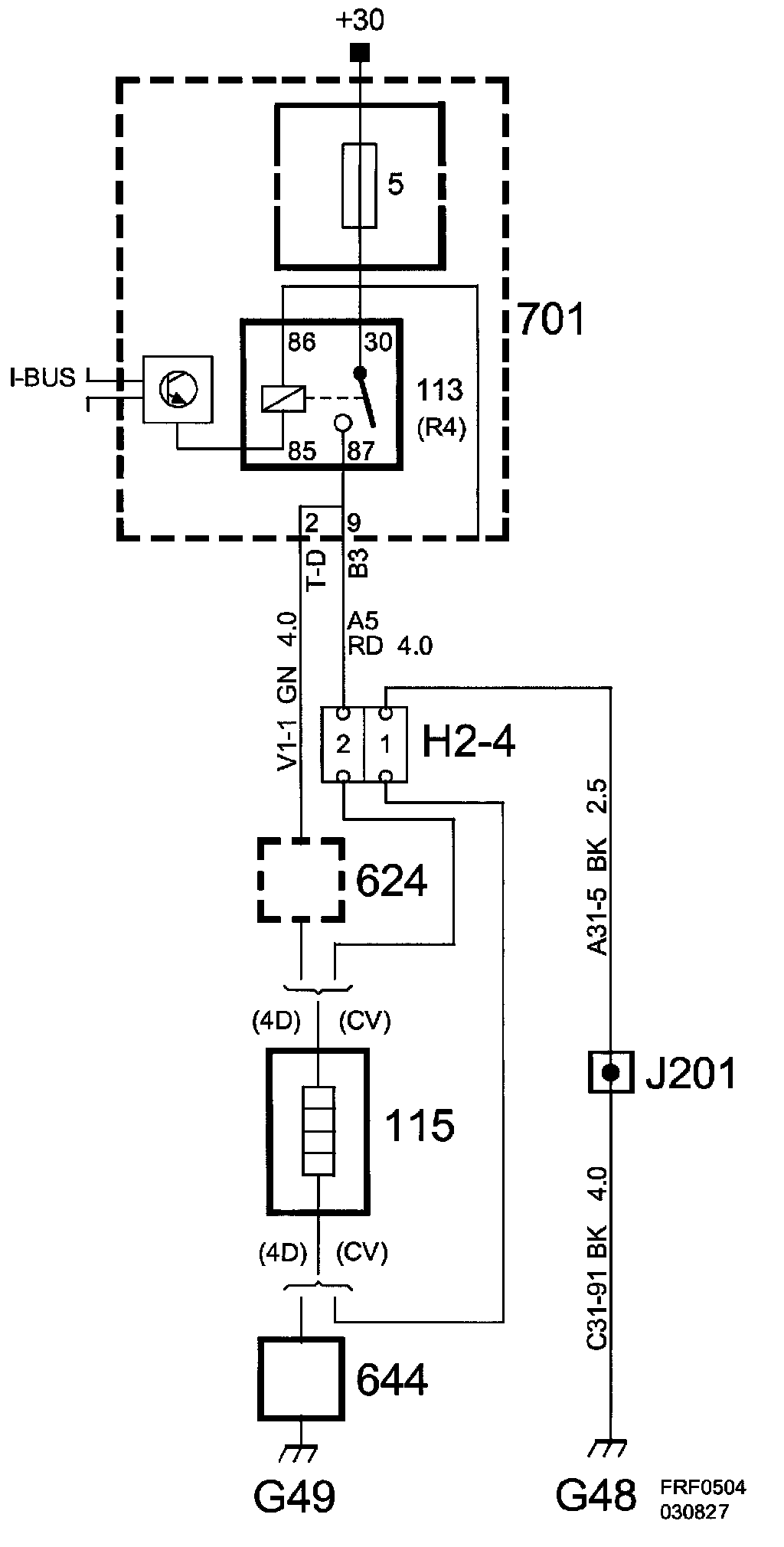

Fuse 5, Rear Electrical Centre 701, Maxi Fuse:

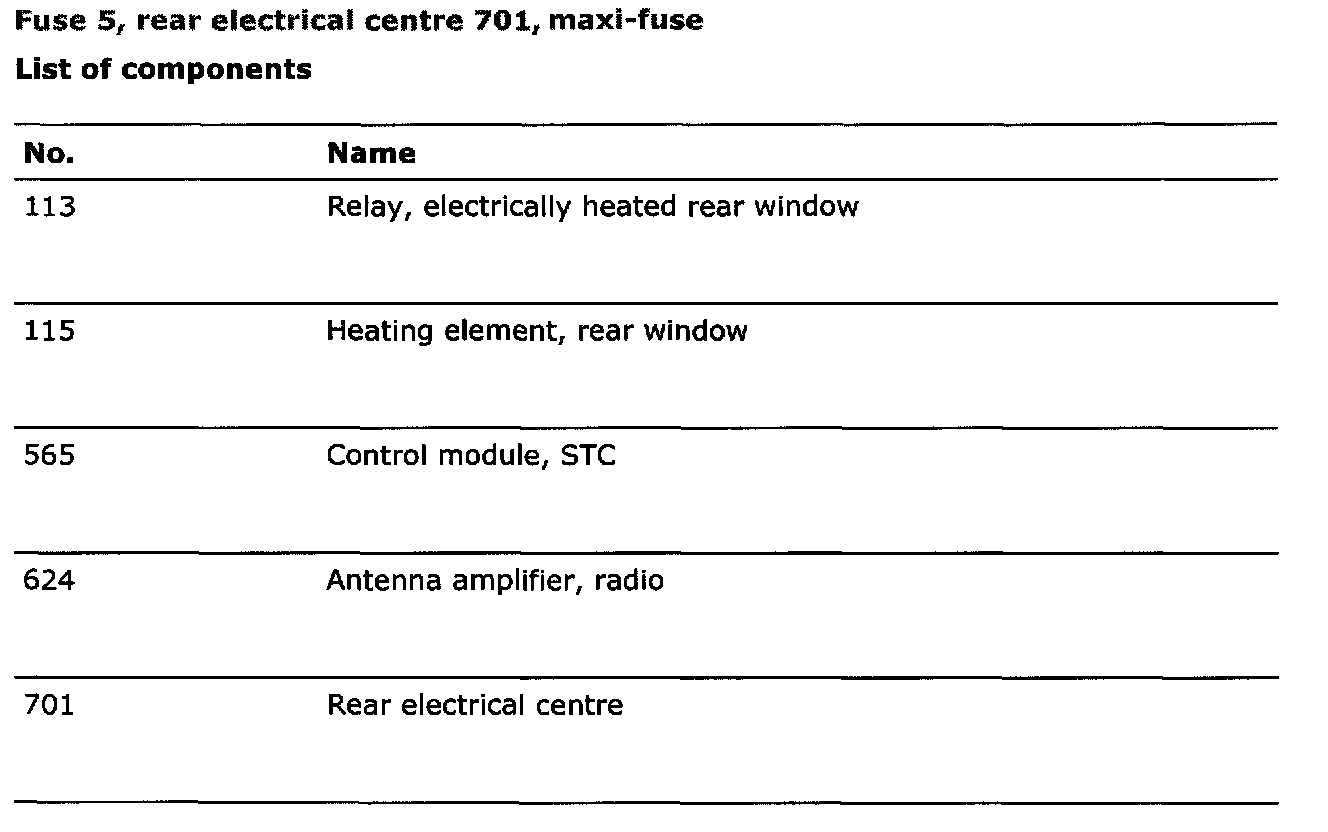

List Of Components:

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
