Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Fuse 5, Rear Electrical Centre 701, Maxi-Fuse

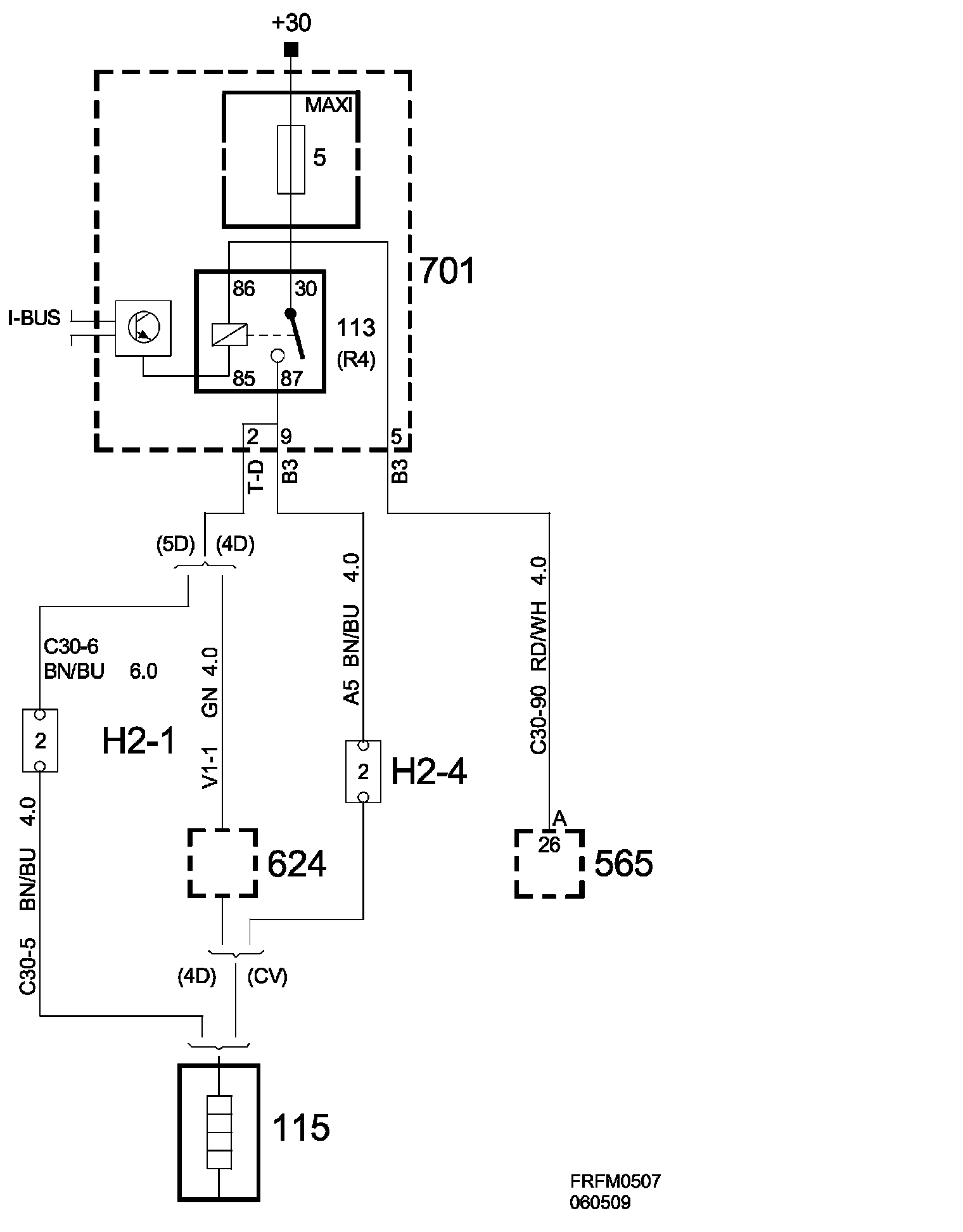

Fuse 5, Rear Electrical Centre 701, Maxi-Fuse

Fuse 5, Rear Electrical Centre 701, Maxi-fuse:

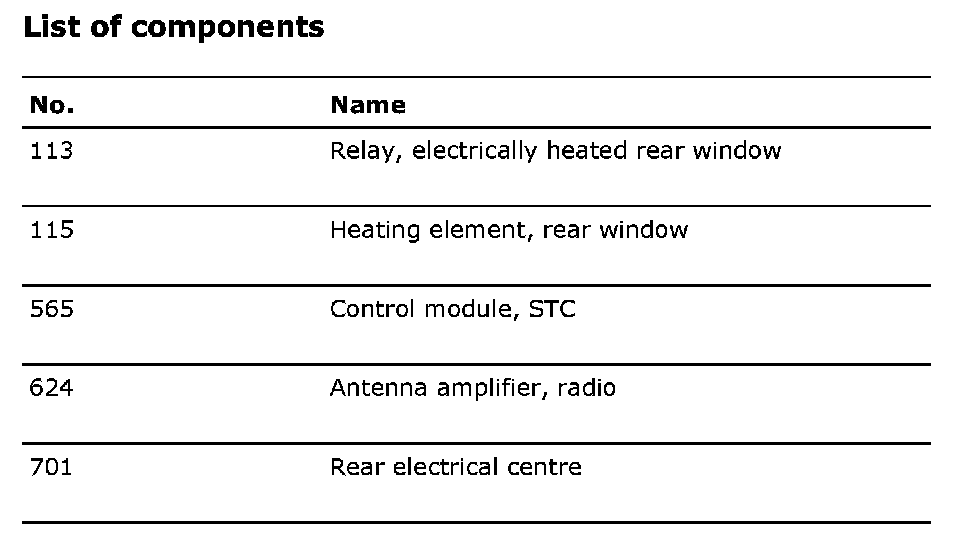

List of Components:
