Automatic Anti-Dazzle Door Mirrors, CV

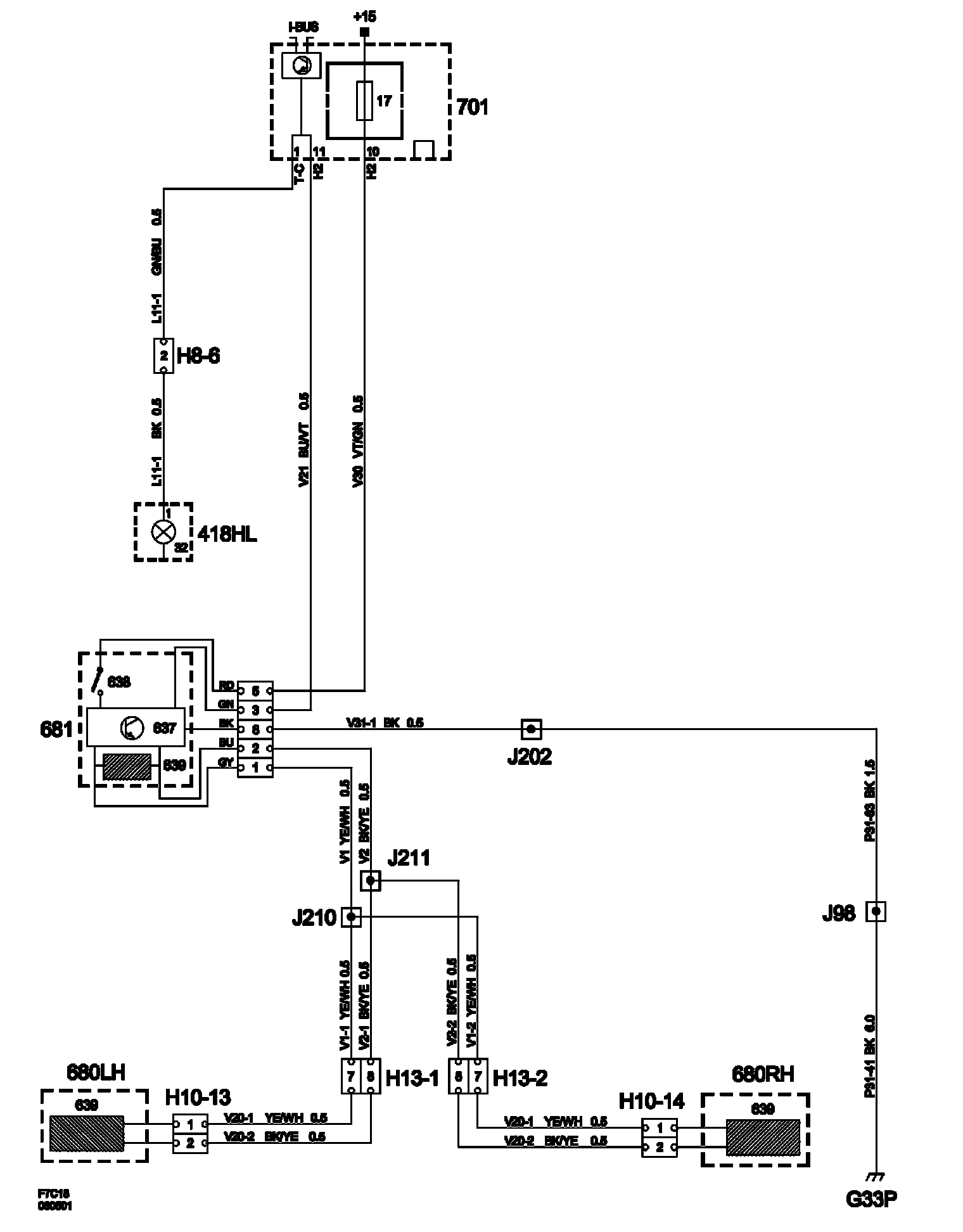

Automatic Anti-dazzle Door Mirrors, CV:

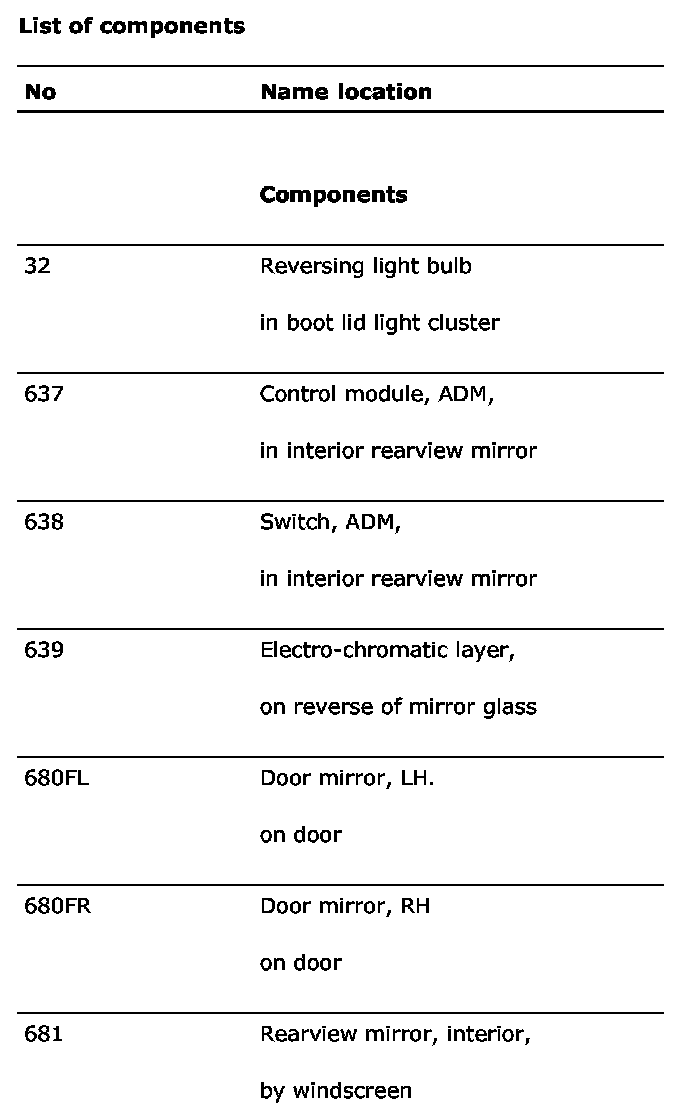

List of Components (Part 1):



List of Components (Part 2):
