Automatic Climate Control (Part 1/2)

Automatic Climate Control (Part 1/2):

The following switches can be found on the ACC control module:
1. Hazard warning lights
2. Air conditioning A/C, petrol
3. Electrically heated seats

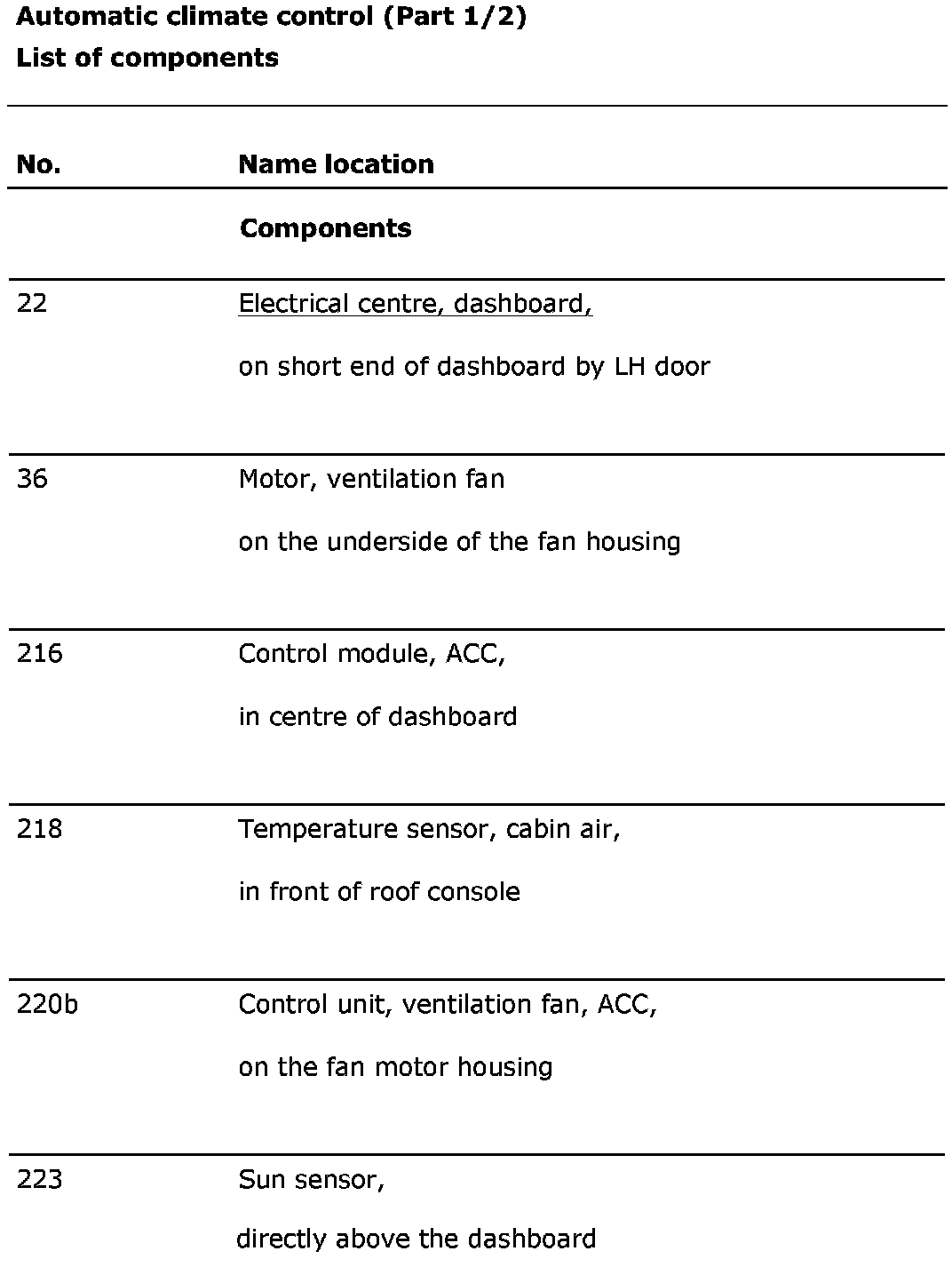

List Of Components (Part 1):

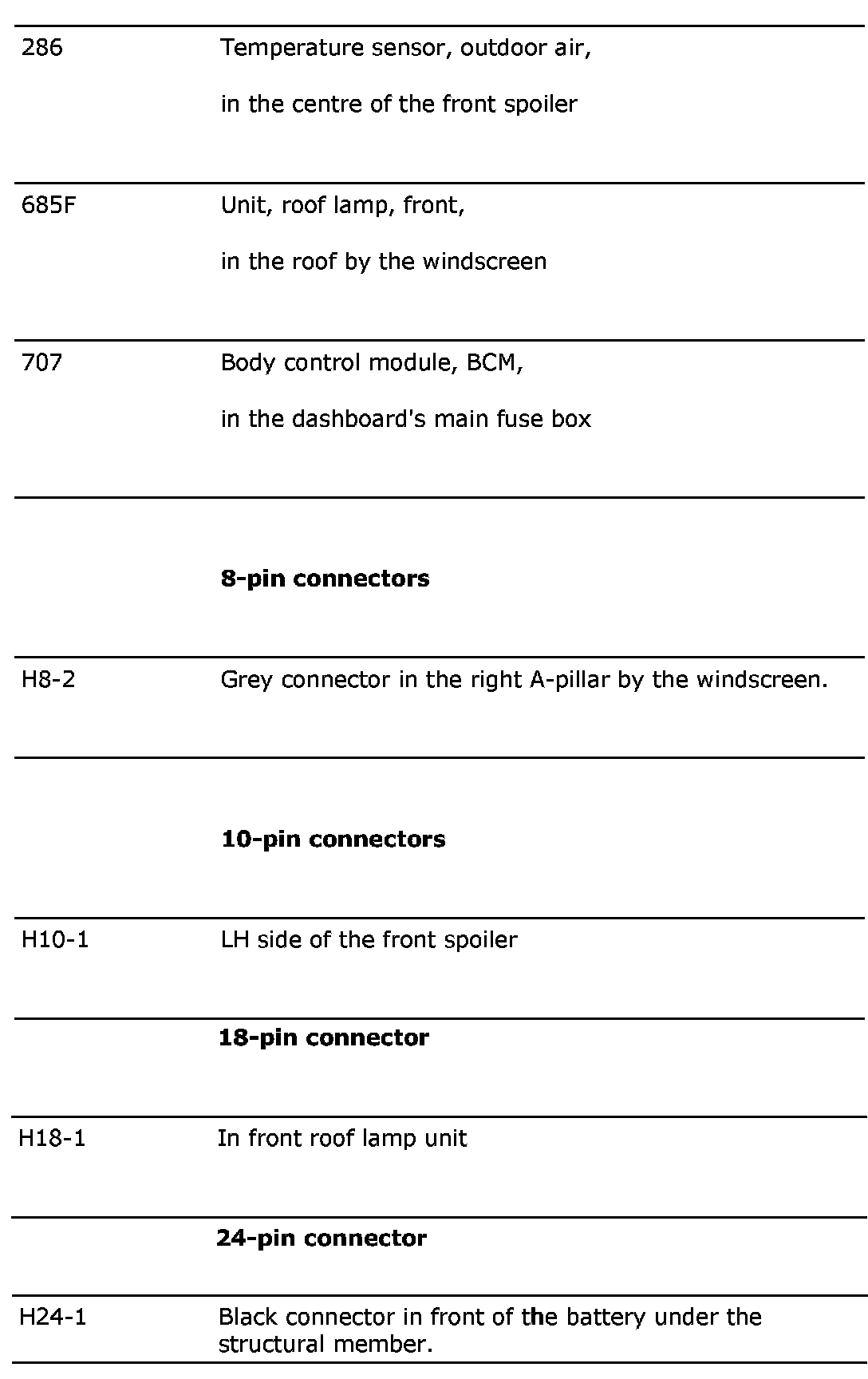

List Of Components (Part 2):

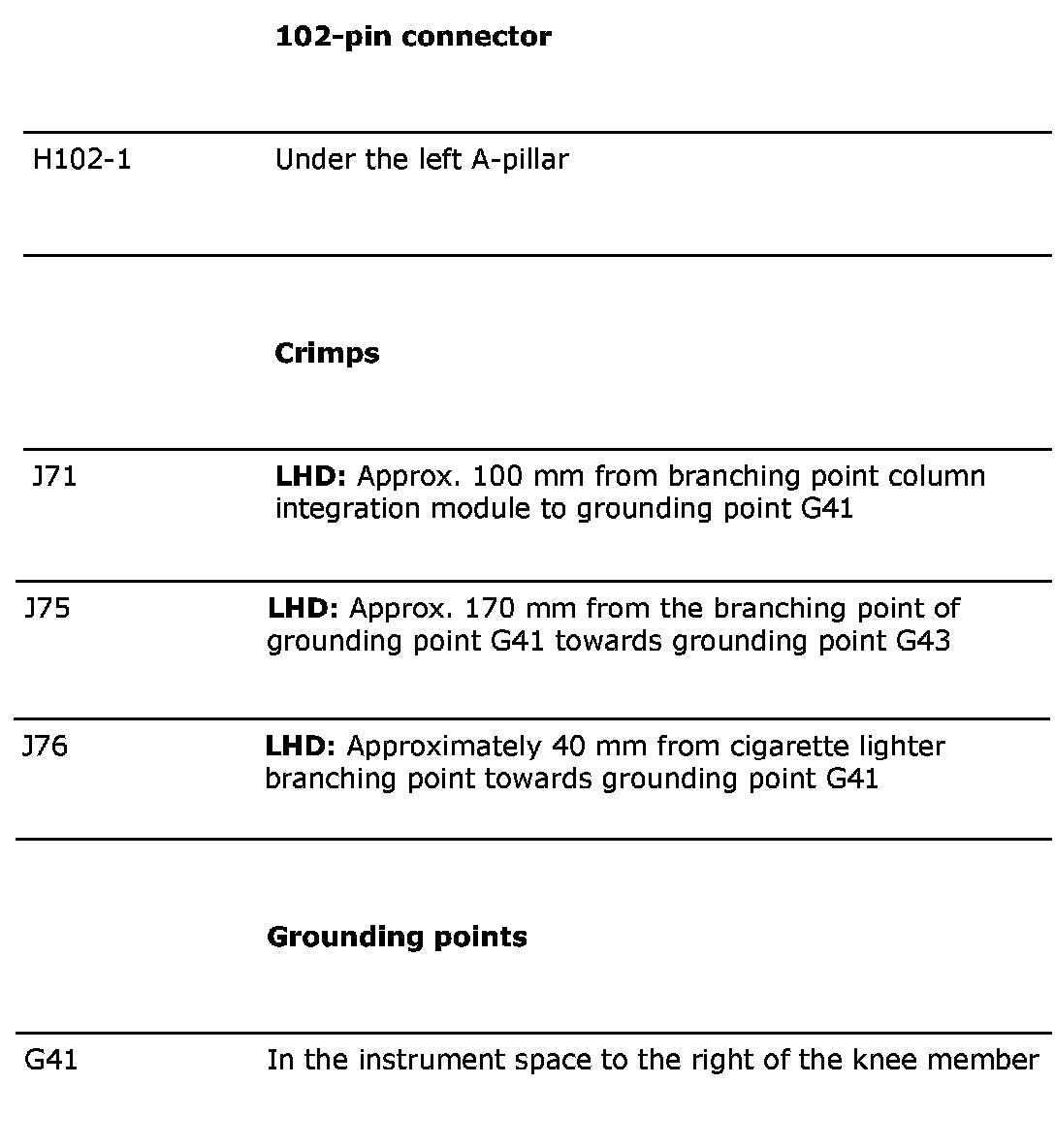

List Of Components (Part 3):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
