Transmission Control System, FA 57 (5 Speed)

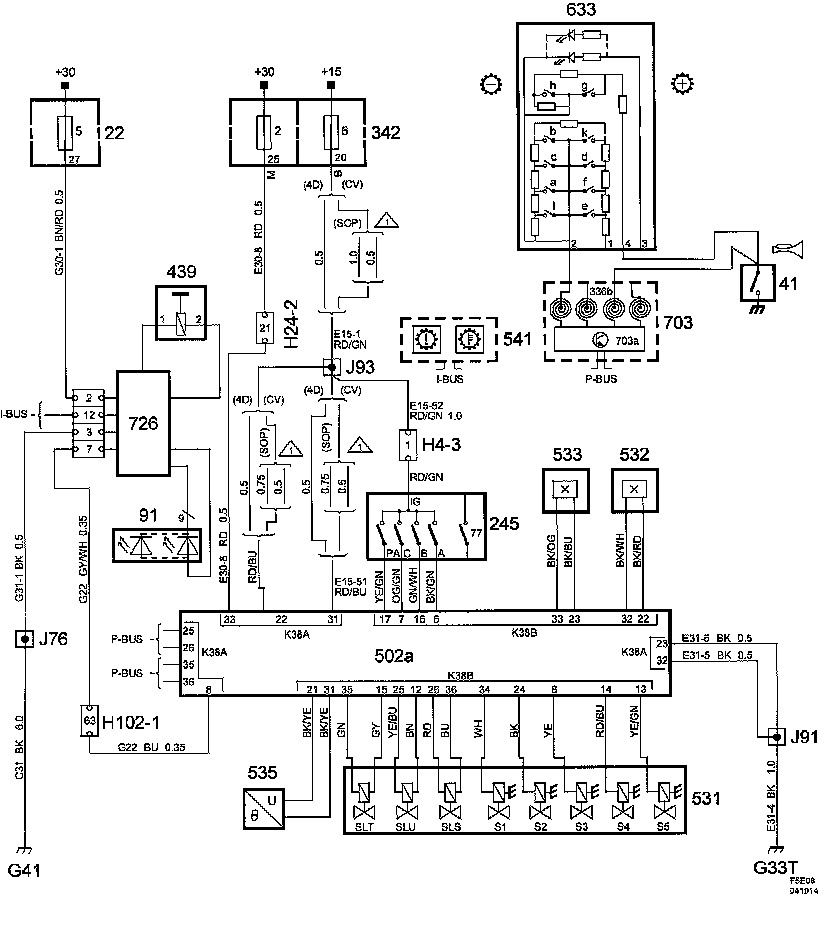

Transmission Control System, FA 57:

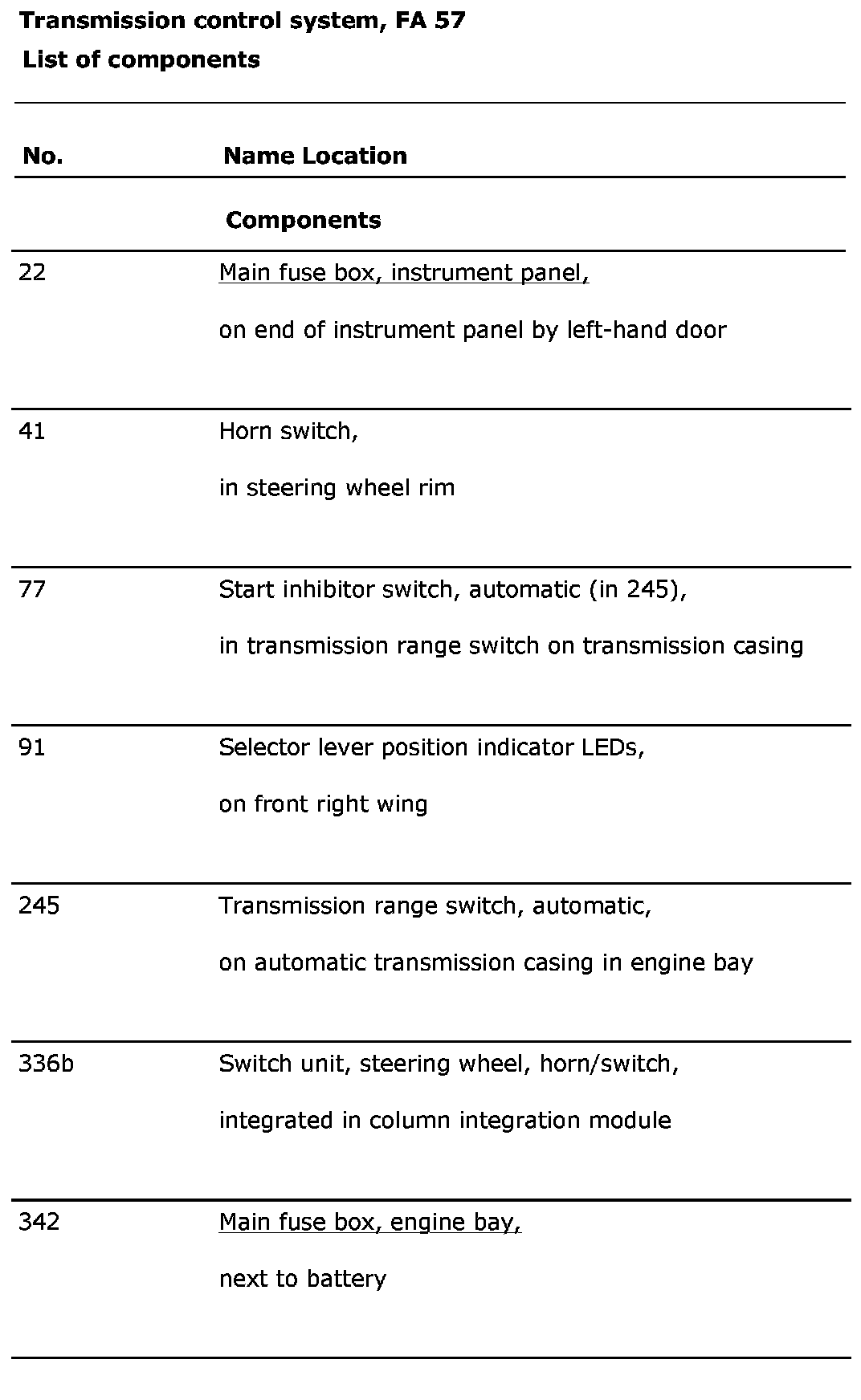

List Of Components (Part 1):

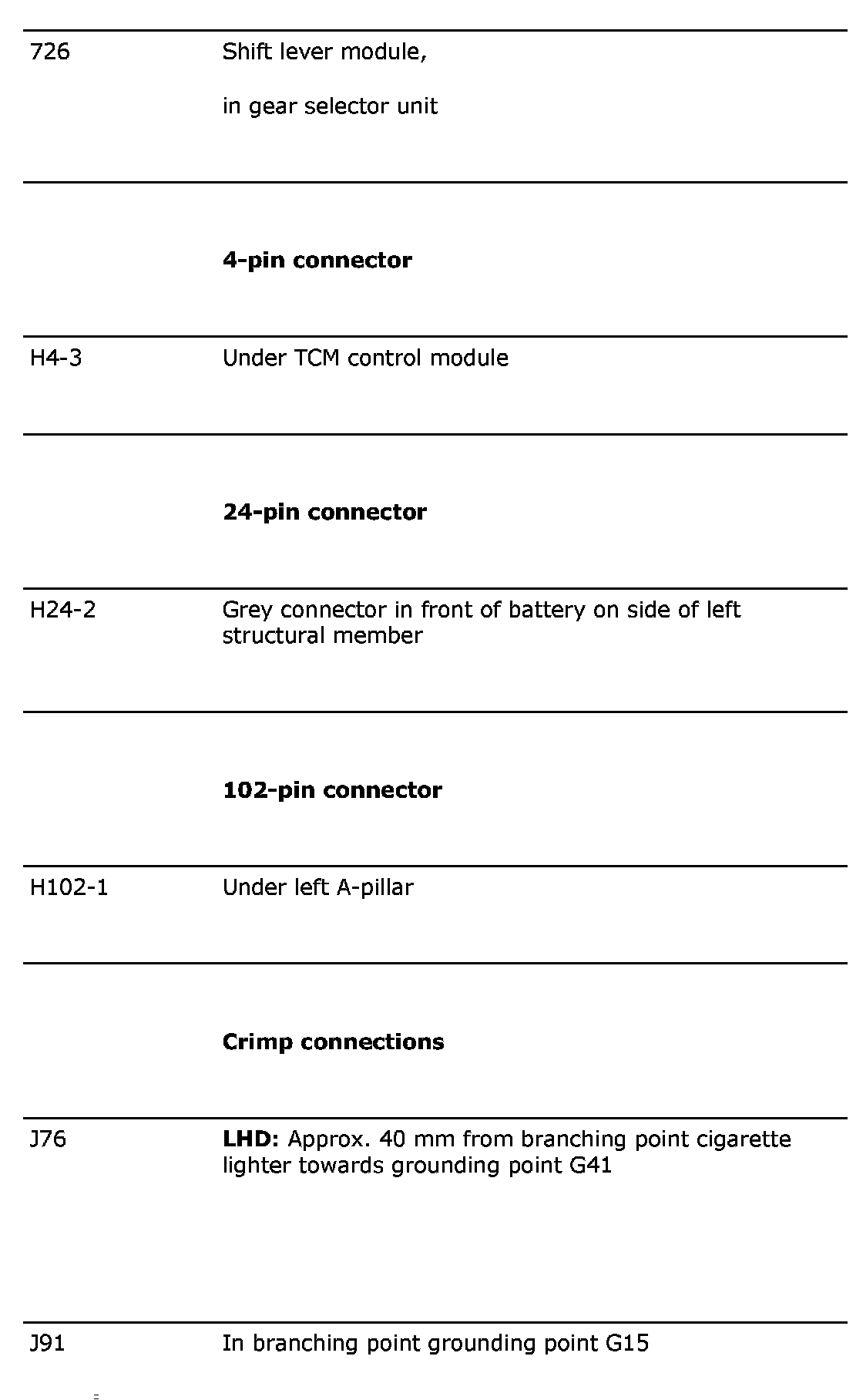

List Of Components (Part 2):

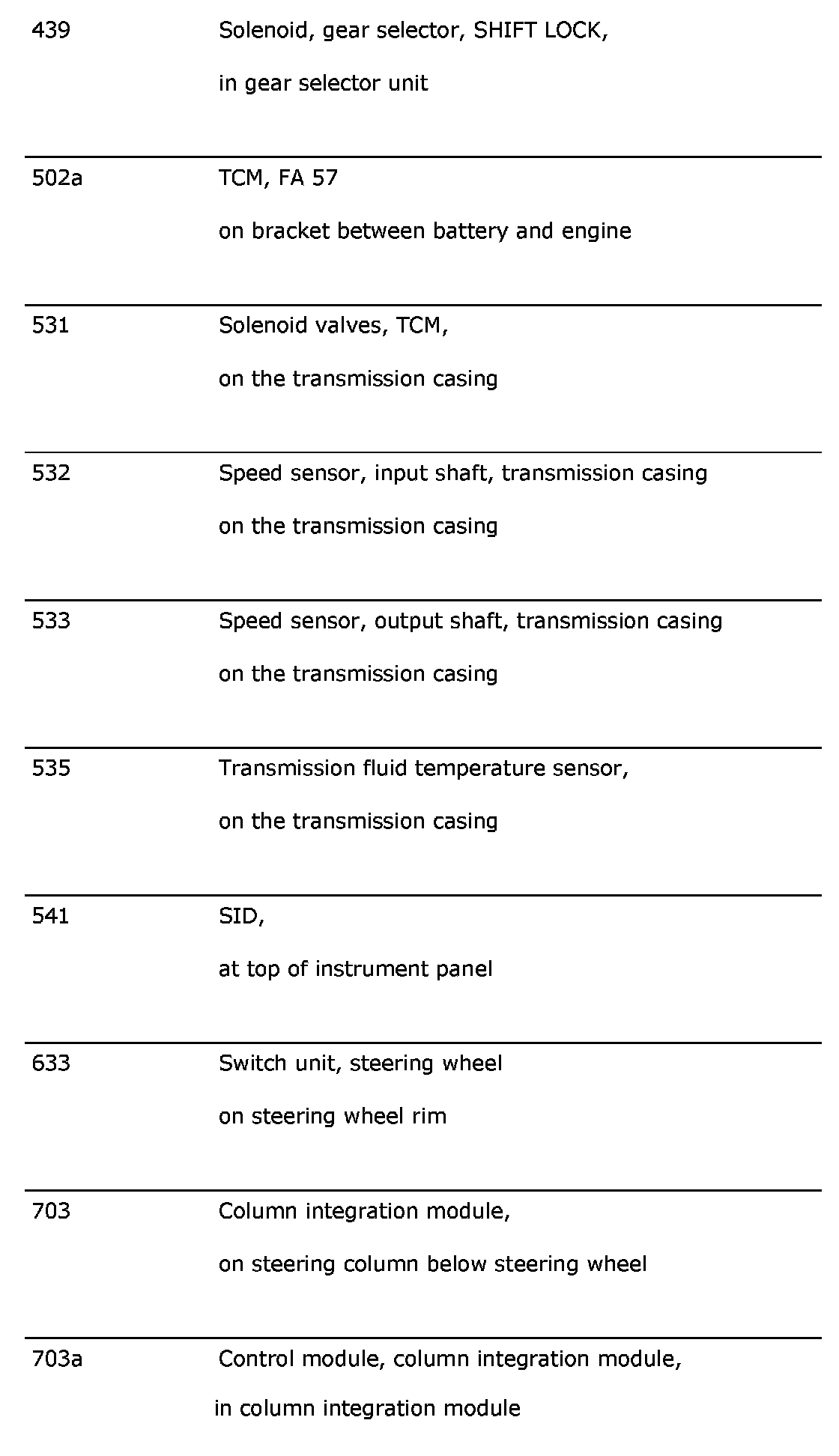

List Of Components (Part 3):

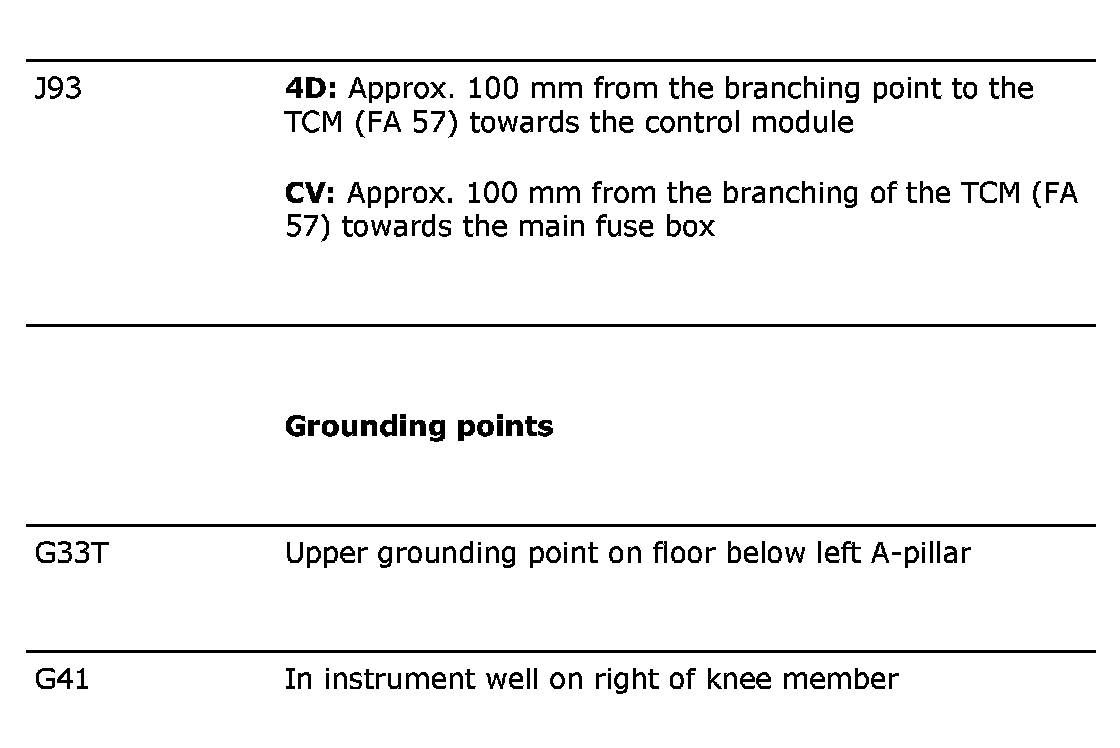

List Of Components (Part 4):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
