Transmission Control System, AF 40 (6 Speed)

Transmission Control System, AF 40:

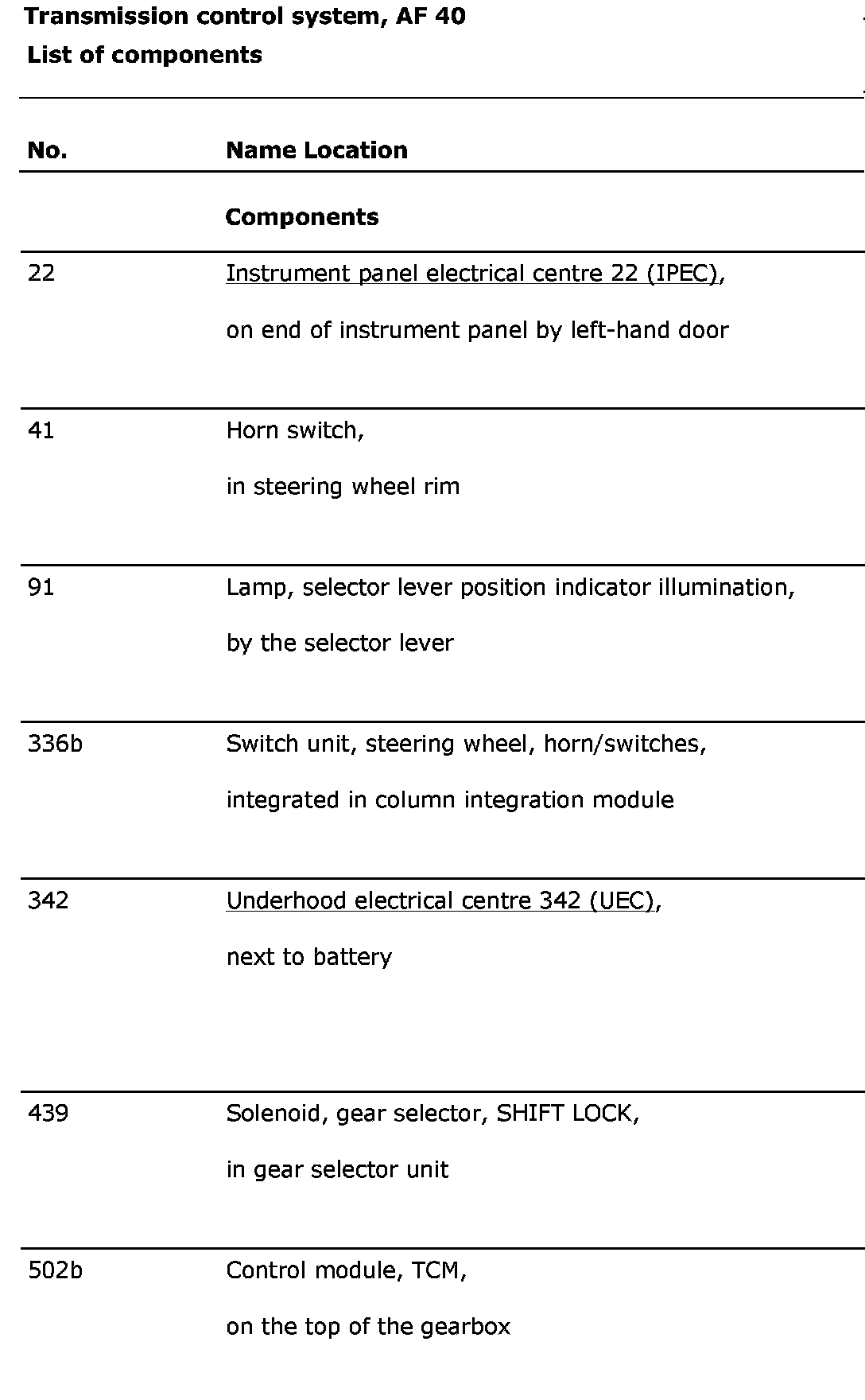

List Of Components (Part 1):

List Of Components (Part 2):

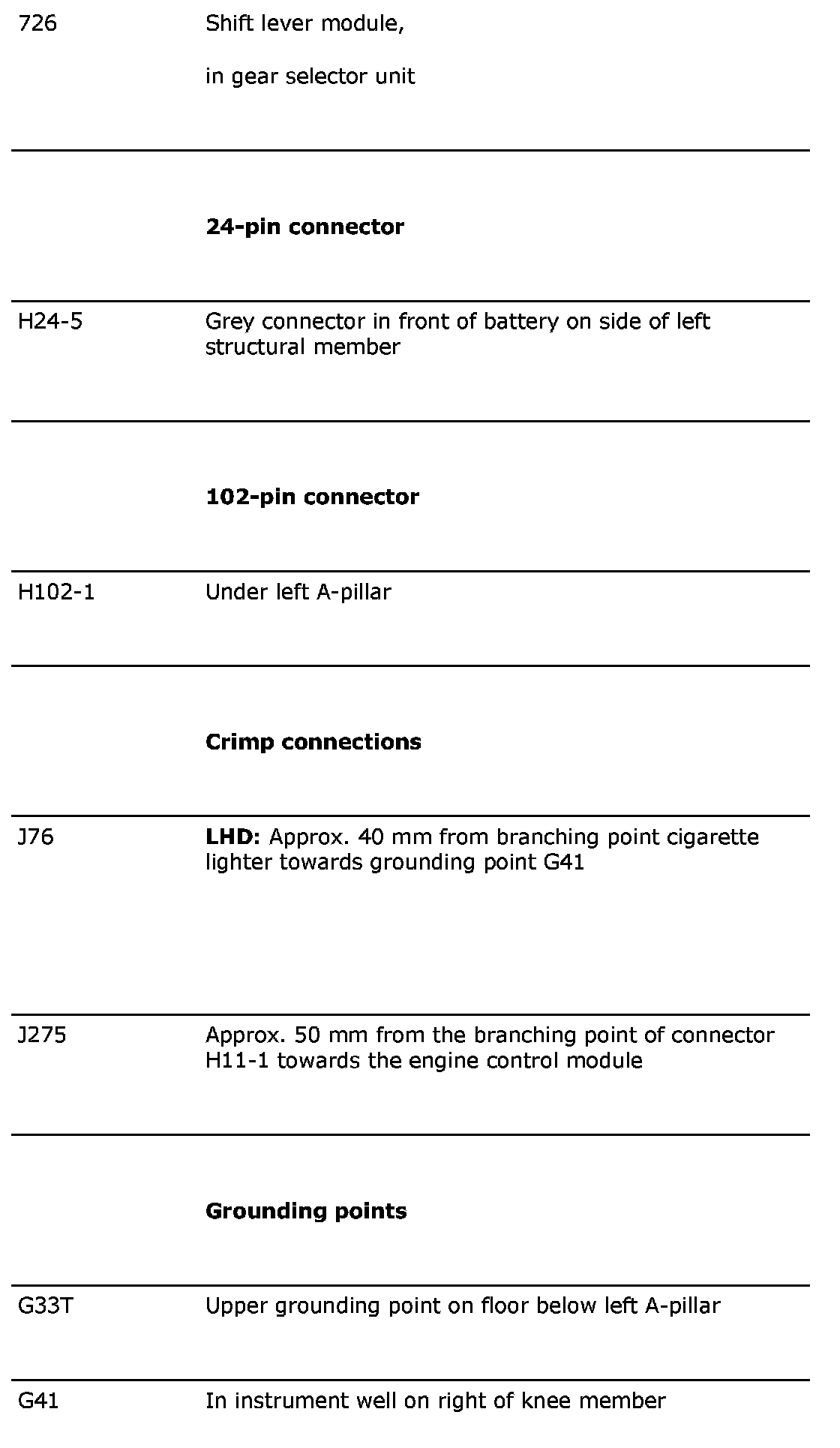

List Of Components (Part 3):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
