Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor

Wiper Motor



Location:

LHD: in engine bay on right of bulkhead partition

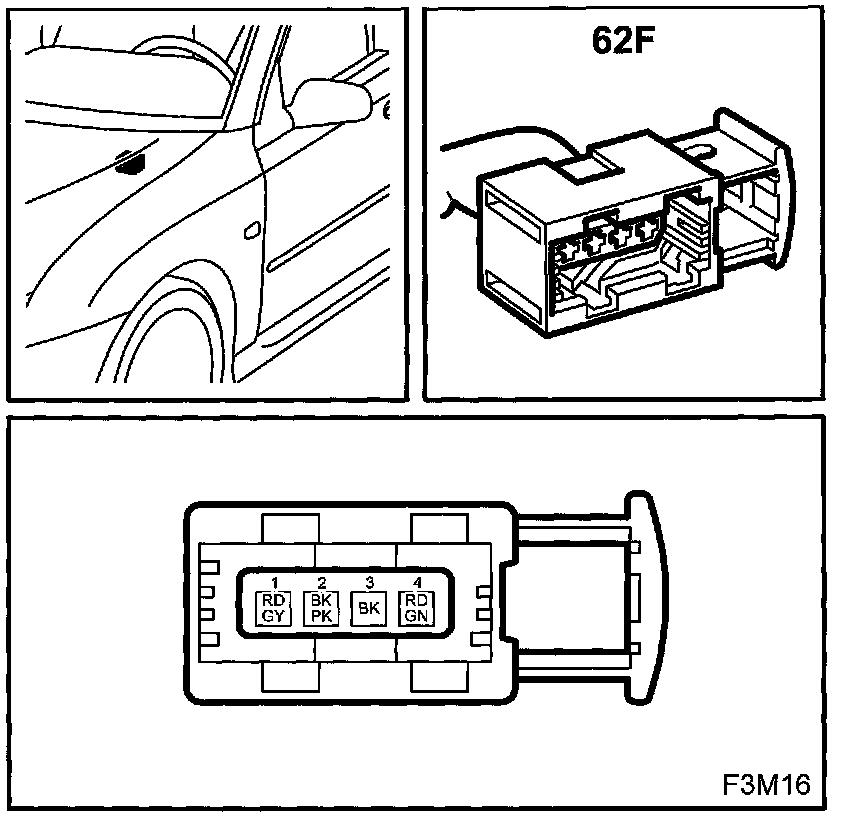

Windscreen Wiper Motor (62F):
