Windshield Washer Relay
Windshield Washer Relay

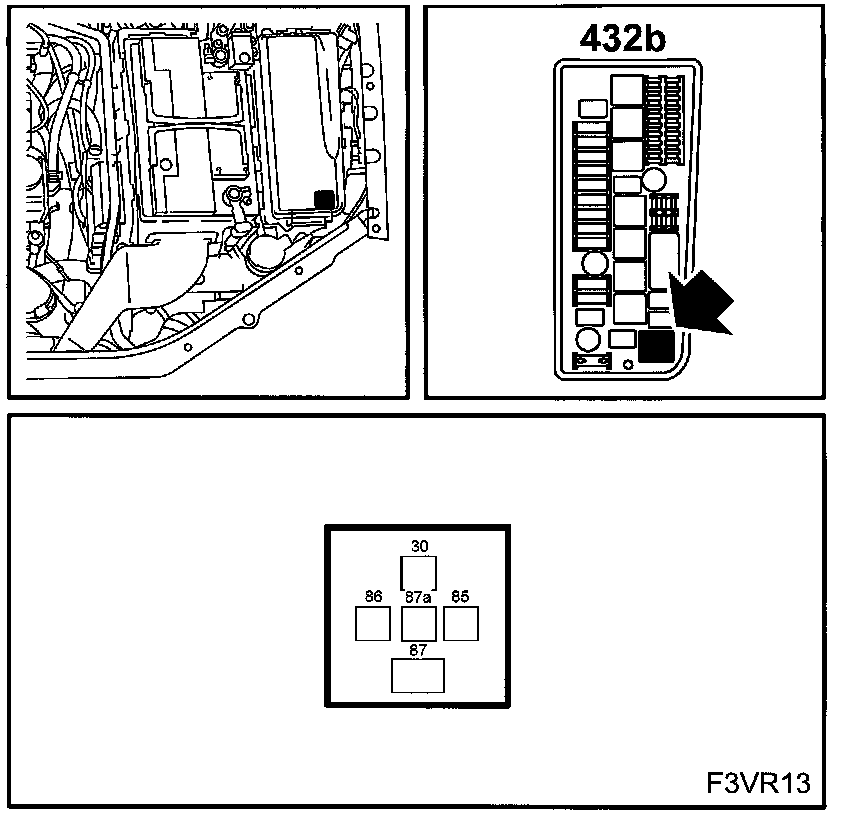

Location:
in main fuse box in engine bay 342
Windscreen Washer Fluid Pump Relay (432b):
