Windshield Washer Motor
Windshield Washer Motor

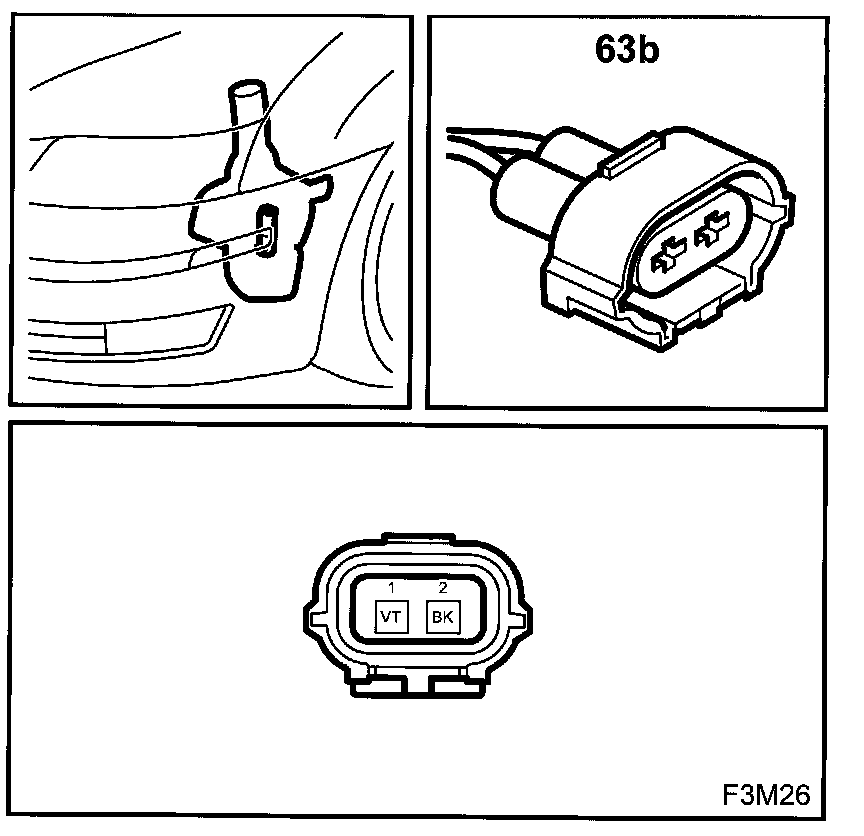

Location:
on washer fluid reservoir in the left wheel housing
Windscreen Washer Fluid Pump Motor (63b):
